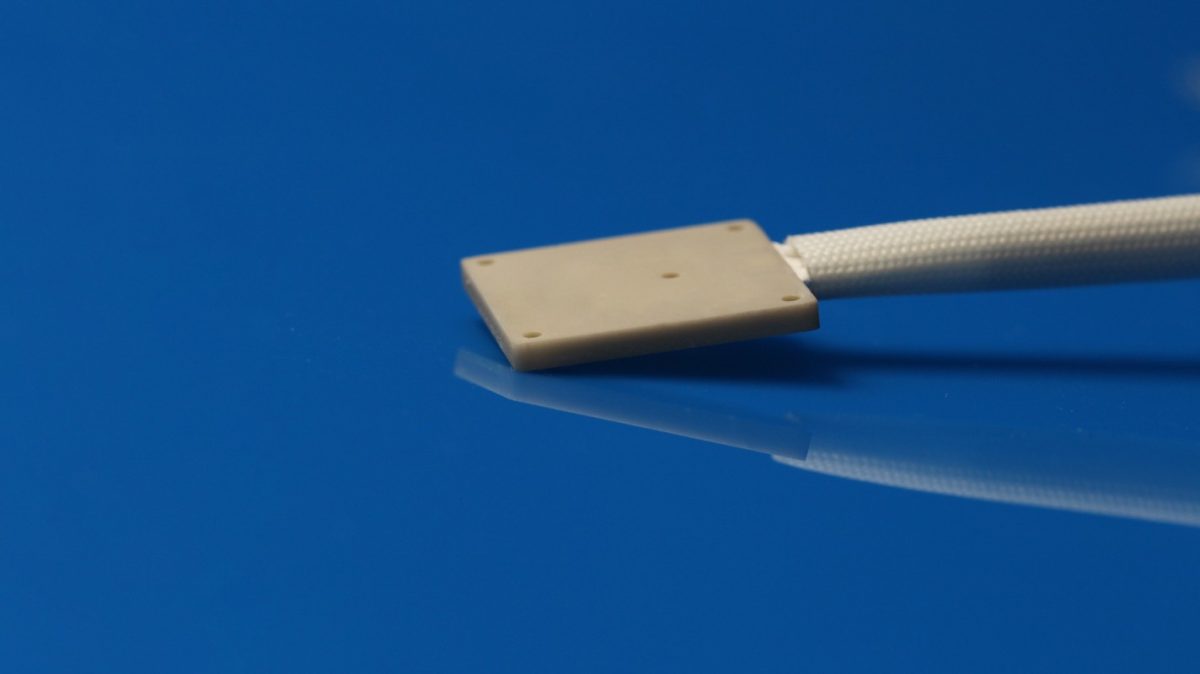

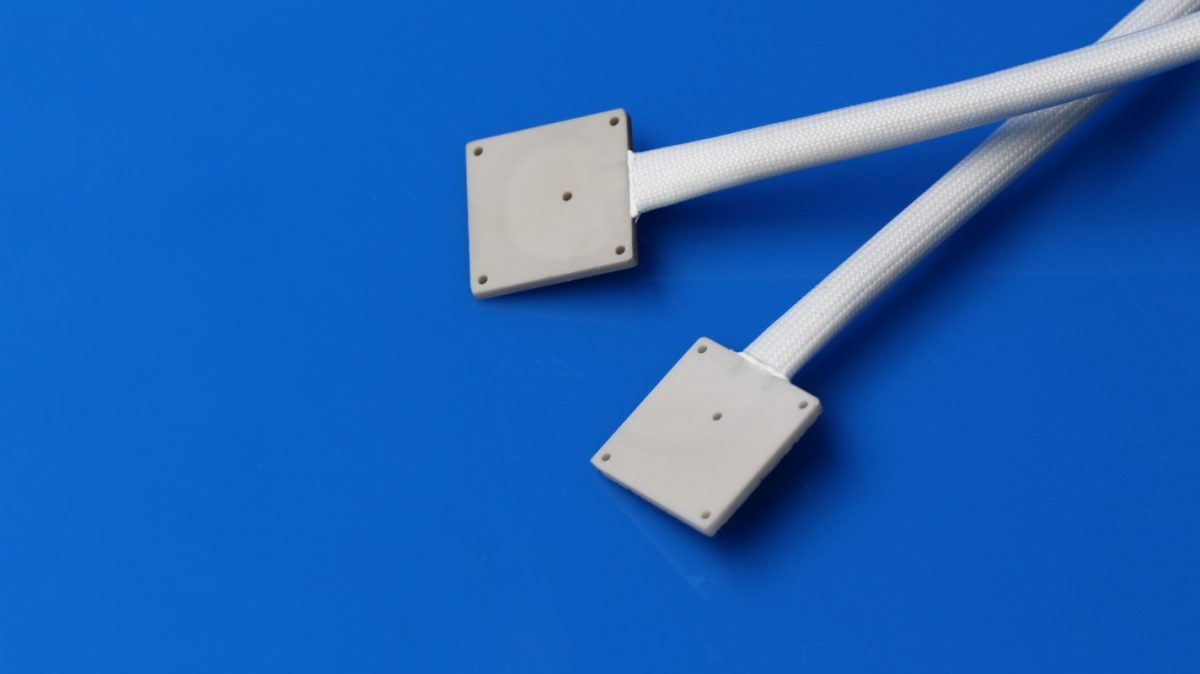

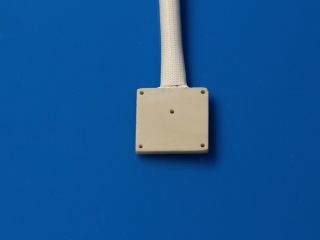

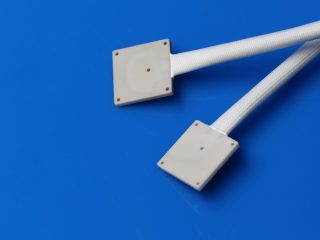

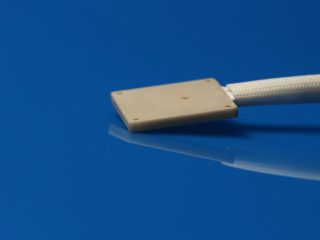

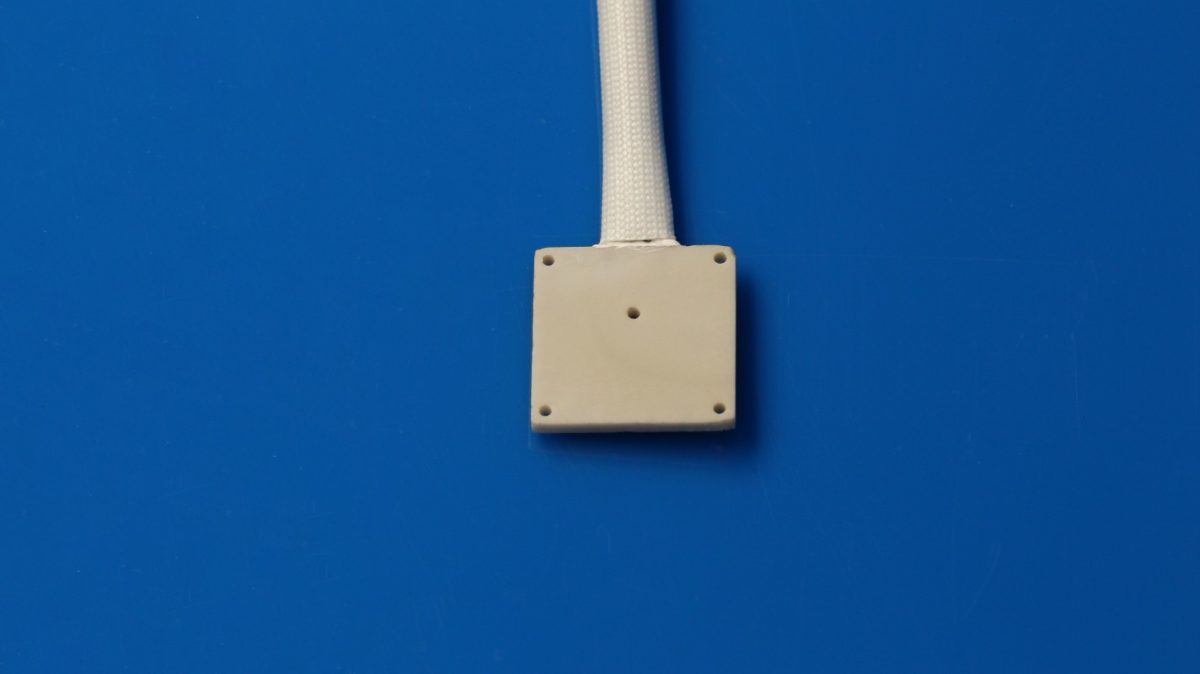

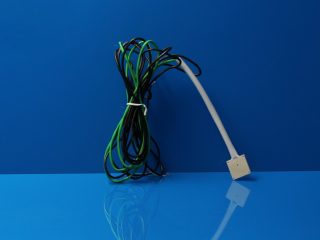

These AlN ceramic heaters are intended for integration into equipment used in optical module-related heating applications. INNOVACERA can tailor the specifications to your available space, power supply and heating requirements, with lead wires and insulating components supplied for equipment assembly.
Reference Model Specifications
The specifications below apply to one model in the product range. Other specifications can be customized to meet your project requirements.
| Parameter | Reference specification |
|---|---|
| Material | Aluminum nitride (AlN) |
| Dimensions | 26 × 26 × 2.5 mm |
| Operating voltage | 220 V |
| Heater resistance | 35–69 Ω |
| Startup power | ≥700 W |
The specific resistance value, tolerances and power test conditions are subject to the agreed product specification.

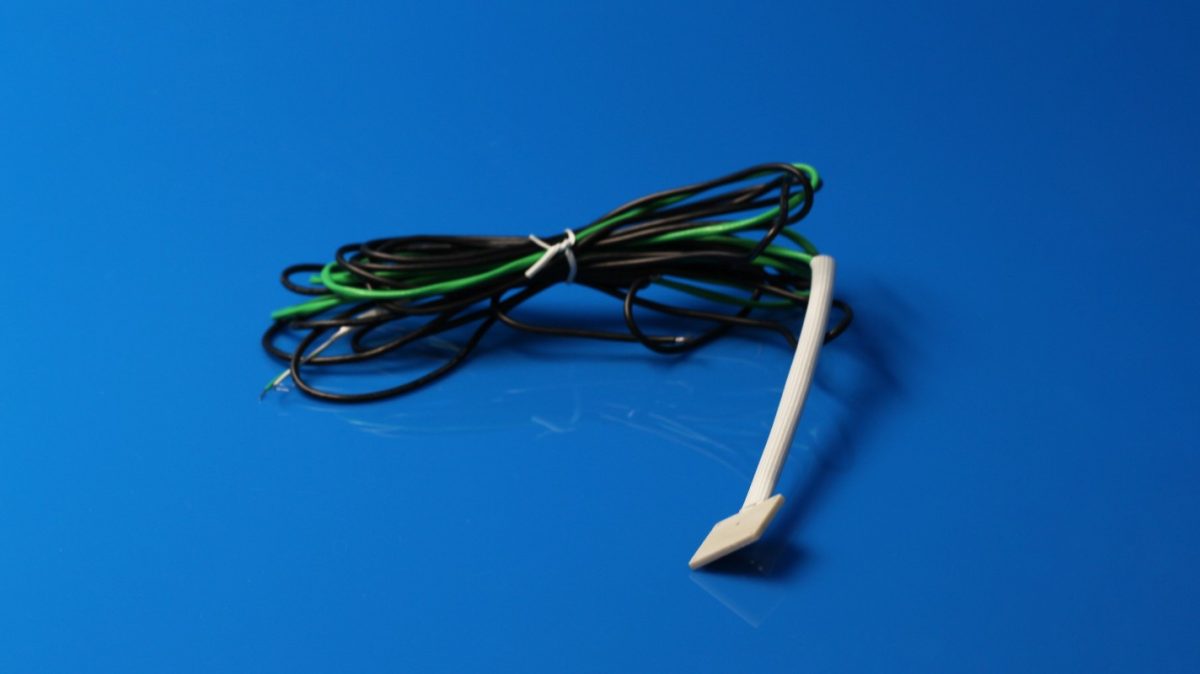

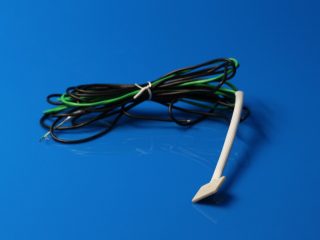

Included Components
The reference model includes the following components:
| Component | Purpose |
|---|---|
| Teflon heat-shrink tubing | Insulation and protection at connection points |
| UL3135 silicone-insulated flexible wire | Electrical connection to the heater |
| Silicone resin-coated fiberglass sleeving | Additional insulation and protection for lead wires |
Lead length, exit direction and termination details can be specified to suit your assembly.
Customization for Different Markets
Custom specifications are available for Japan, the United States and other markets, including 100 V, 110 V and 220 V power supplies. Heater resistance is matched to the required power for each voltage design.
- Dimensions and shape: Adapted to your drawings and available installation space.
- Electrical specifications: Resistance and power configured for the operating voltage and heating requirements.
- Lead wires: Length, exit direction and connection method tailored to your assembly.
- Insulating components: Tubing and sleeving configured to meet wiring and protection requirements.
