Application solution

Electrical & Electronics

Ceramic substrates, insulators and packages for electrical assemblies where dielectric reliability, heat flow and dimensional stability are critical.

Review related products
Discuss this application
Related products 5 related products in the current catalog
Review sequence Operating conditions, ceramic components, material direction, RFQ review
RFQ input Drawings, dimensions, quantity, target performance and operating environment

Engineering requirements behind Electrical & Electronics ceramic components

Electrical and electronic assemblies are becoming smaller, hotter and more power dense. Ceramic components help combine electrical insulation, thermal management, low loss and stable geometry in packages, substrates, sensors and high-voltage hardware.

Key Requirements
  • Electrical insulation and dielectric strength
  • Thermal conductivity or thermal isolation
  • Flatness, thickness and package fit
  • Metallization, bonding or hermetic assembly needs
  • Long-term stability under voltage and heat
Recommended Material Directions

Where Ceramic Components Are Used in Electrical & Electronics Equipment

Use this section to match your equipment type with typical ceramic parts and the key requirements we should review before quoting.

Area 01

Power electronics and thermal substrates

Typical components

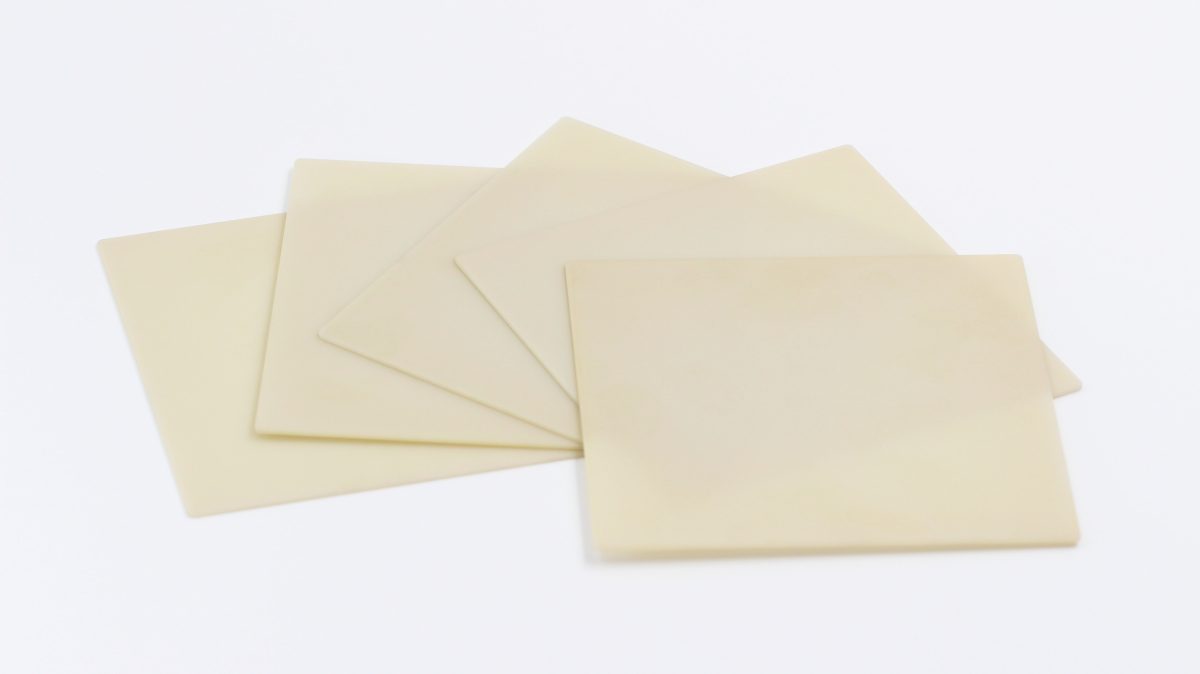

AlN substrates, alumina plates, DBC or DPC ceramic substrates and heat spreaders

Key Requirements

High insulation, heat dissipation, flatness, thickness control and stable thermal cycling

Area 02

Electrical insulation and sensor assemblies

Typical components

Insulators, spacers, tubes, sleeves, holders and sensor ceramic parts

Key Requirements

Dielectric strength, stable dimensions, temperature resistance and repeatable assembly fit

Area 03

Ceramic packages and feedthroughs

Typical components

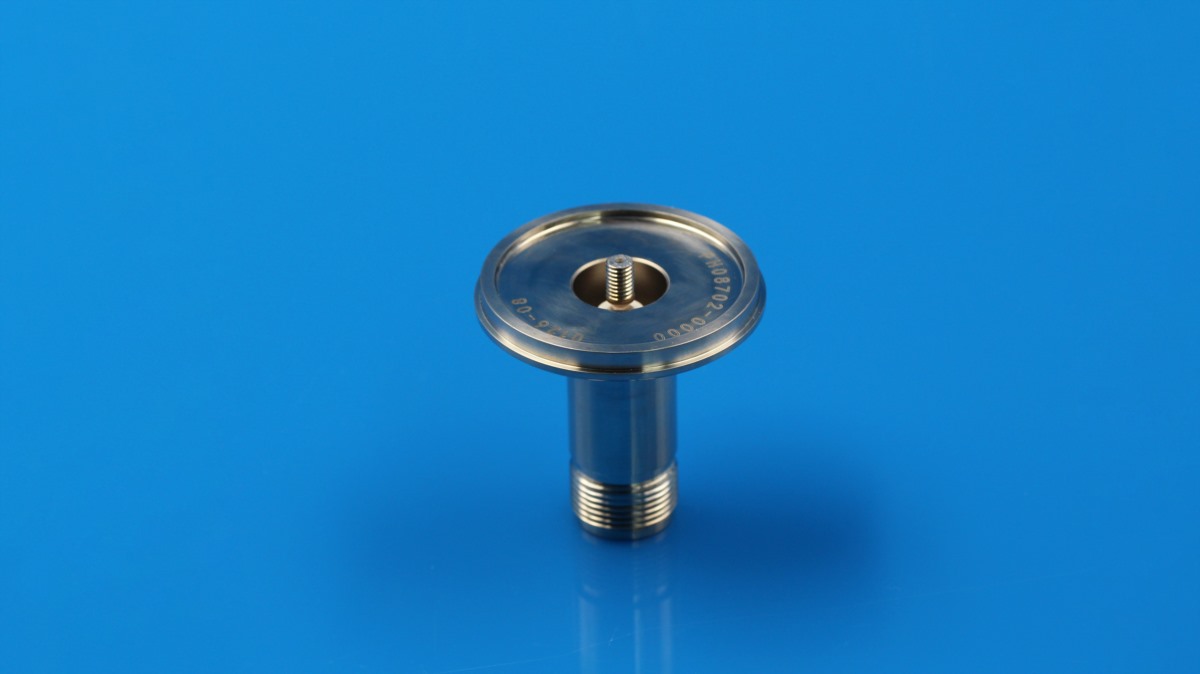

Metallized ceramic rings, packages, headers, feedthroughs and brazing-ready parts

Key Requirements

Metallization quality, sealing surface control, low leakage and reliable bonding

Engineering Review Notes for Electrical and Electronic Ceramic Parts

Electrical ceramic parts are rarely selected by material name alone. The correct route depends on voltage, heat flow, package layout, metallization, bonding method and the mechanical stack-up around the part.

Information to share before material review

  • Drawing or layout showing thickness, flatness, mounting points, metallized areas and critical electrical clearances.
  • Voltage, dielectric strength target, thermal load, operating temperature and thermal cycling conditions.
  • Bonding or assembly method, including soldering, brazing, metallization, plating, adhesive or mechanical clamping.
  • Surface finish, edge quality, hole tolerance, package fit and inspection requirements.
  • Prototype quantity, repeat production plan and any qualification or reliability test requirements.

How we use this information

  • Check whether alumina, aluminum nitride, metallized ceramic or another ceramic system is the practical starting point.
  • Review manufacturability of thickness, holes, slots, metallized patterns and post-fired machining features.
  • Identify surfaces where flatness, edge condition or metallization quality affects thermal or electrical performance.
  • Separate standard substrate opportunities from custom ceramic packages or precision machined components.

What Innovacera can support

Innovacera supports material selection, ceramic substrate review, metallization, machining and prototype-to-production planning for electrical and electronic ceramic components.

Start with the conditions. We will help review the ceramic path.

Share your operating conditions, performance requirements, and design challenges. We' Il help identify the optimal ceramic solution.

Submit material RFQ
Compare ceramic materials
