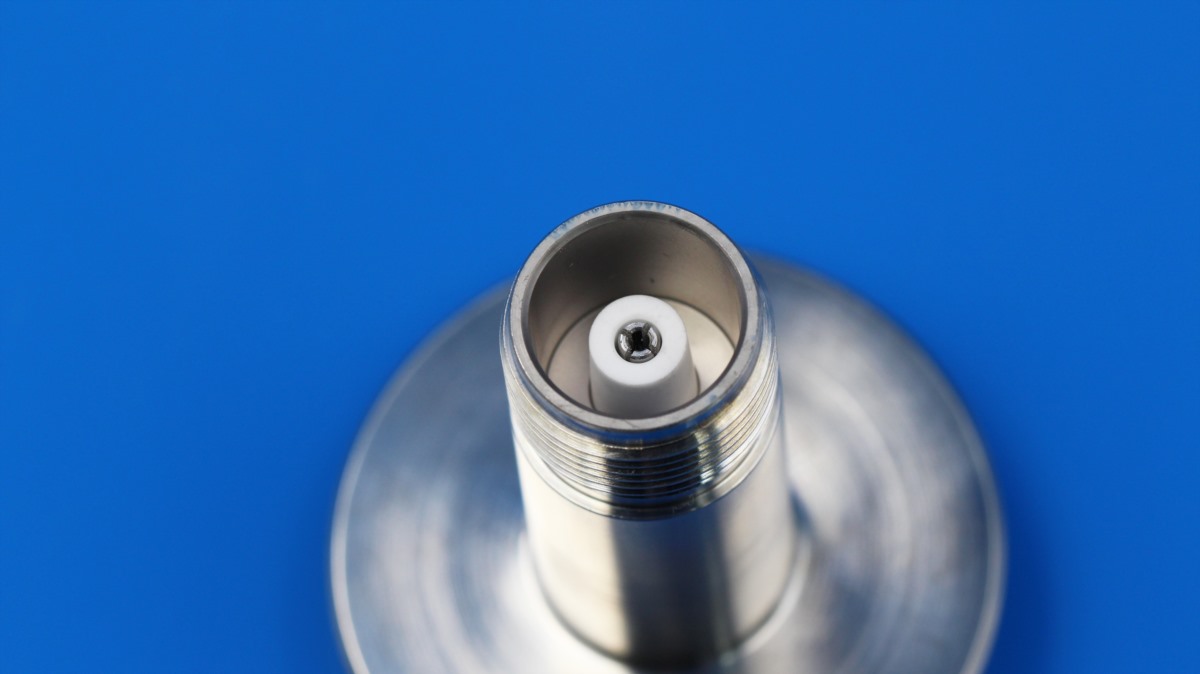

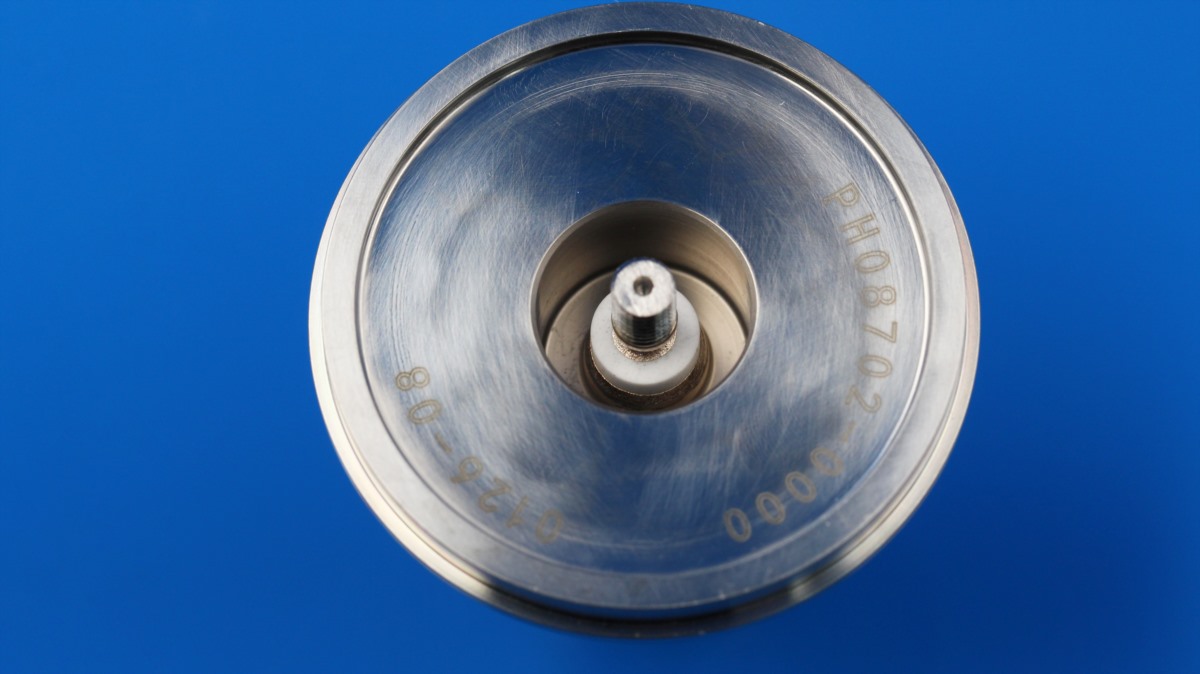

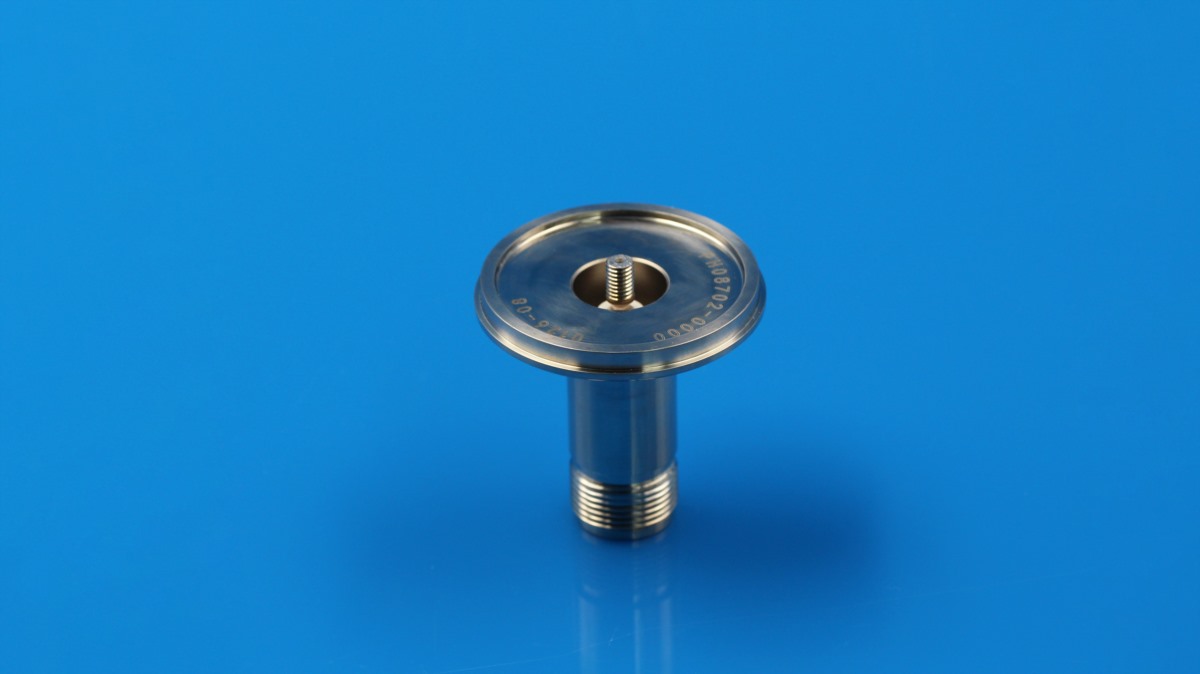

HN-Type Coaxial Connector – Flange Mount

The core design adopts a capture-type central contact structure. Even under temperature variations or mechanical impacts, it can effectively prevent contact offset, ensuring the stability and reliability of signal transmission. HN type connector supports RF signals ranging from DC to 4 GHz, with a characteristic impedance of 50 Ω. It is suitable for use in demanding environments such as high-voltage testing, outdoor communication, and avionics equipment.
In terms of electrical performance, the typical withstand voltage of this connector can reach approximately 5 kV for DC, and the operating temperature range is from -65 °C to +165 °C, which meets the usage requirements in extreme conditions.The termination method supports either solder cups or clamps, facilitating on-site installation and maintenance. Its structure is robust and its performance is stable, making it an ideal.

HN connectors are typically used in:

– High voltage RF and electrical test equipment
– EMI / EMC test systems
– Outdoor telecom equipment and antenna interfaces
– Avionics panel interfaces
– Radiation detection and monitoring systems
– Industrial and laboratory high voltage RF applications

Selection & Configuration

HN connectors are available in straight and right-angle versions, with various flange and bulkhead options.Solder and clamp terminations are offered for different cable types.
Custom options are available for voltage rating, cable assembly, and mechanical reinforcement.Selection should be based on operating voltage, frequency, and installation conditions.
