If you are looking for below product :
- 8 pin 12kV 28A copper conductor CF2.75 vacuum feedthrough
- CF2.75 flange 8 pin high voltage UHV connector 12kV
- 12kV high voltage multi-pin vacuum flange
- molybdenum high temperature vacuum feedthrough 8 pin

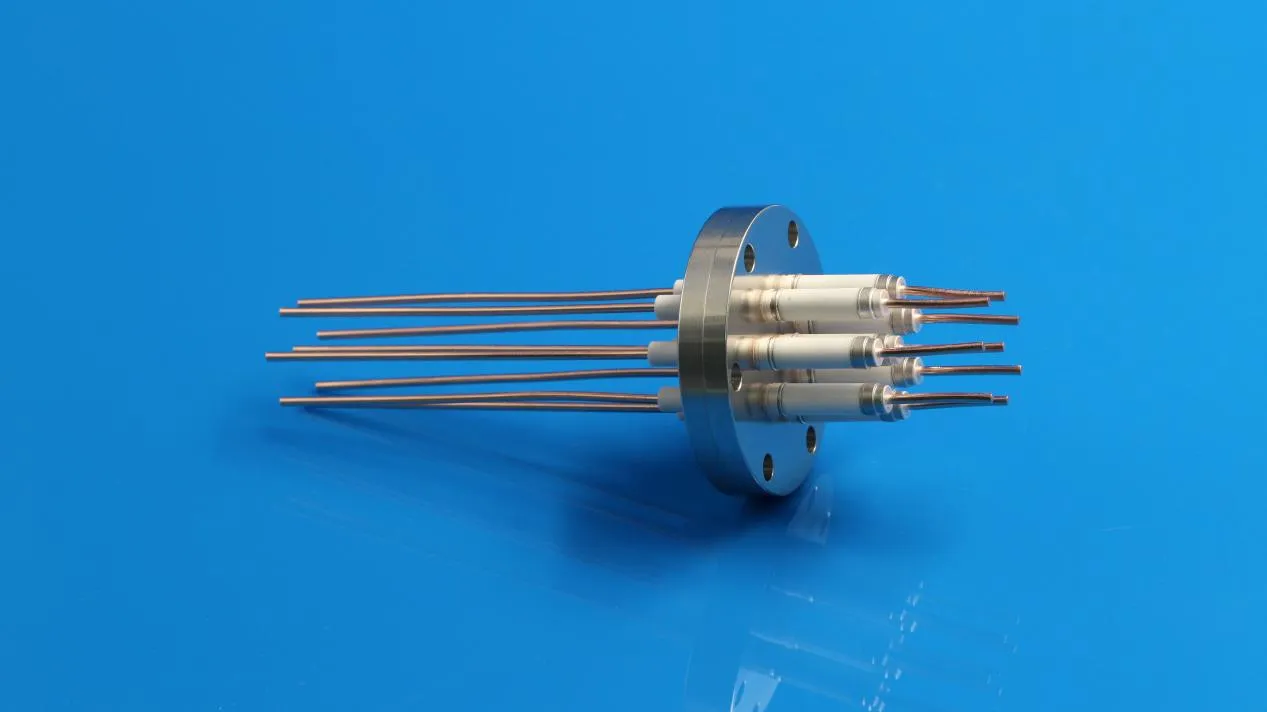

Then our 8 Pin 12kV 28 Amp Ceramic Vacuum Feedthrough CF2.75 Electrical Connector is very suitable for you. The ceramic to metal feedthrough made by 95% alumina with hermetic brazing, ensuring stable high-voltage transmission and long-term vacuum sealing.
The multi-pin configuration support complex electrical integration and the CF2.75 (CF 35) flange guarantees compatibility with standard vacuum chambers.
Advantages:
- Rated up to 12kV high voltage in vacuum
- 8-pin multi-channel electrical feedthrough
- Hermetic ceramic-to-metal sealing technology
- Compatible with UHV / high vacuum systems
- Supports complex signal and power transmission
- Customizable design options
Technical Specifications
| Number of Conductors | 8 |
| Type | Power |
| Style | Pin |
| Voltage | 12 kV |
| Current | 28.0 Amps |
| Mount Style | CF2.75（CF35） |
| Conductor Diameter Size | 0.094 inch , 2.3876 mm |
| Conductor Material | Copper or Molybdenum or Customization |
| Ceramic Material For Insulator: | 95% Alumina |
| Using Temperature | -269 to 450 °C |
| Pressure Maximum | 1500 psig |
| Plug | Other |
| Size | OD69.5*184mm |
Applications
Optimized for searches like:
Typical Application:
- Semiconductor manufacturing equipment
- Space simulation chambers
- High-voltage testing systems
- Ion beam & plasma systems
- UHV power transmission
Why Choose us
- Equivalent to other brand ceramic vacuum feed-through performance with lower cost flexibility
- Faster lead times
- Custom engineering support
- Reliable sealing proven in UHV environments
If you are interested, send us your drawing or requirements to sales@innovacera.com.
Declaration: This is an original article of INNOVACERA®. Please indicate the source link when reprinting: https://www.innovacera.com/product/8-pin-12kv-28a-ceramic-vacuum-feedthrough-cf275
Frequently Asked Questions
Is this compatible with other brand ceramic feedthrough?
Yes, it is designed as a functional equivalent to 0.094 inch Conductor Diameter 8 Pins 12kV 28 Amp Copper Conductor in a CF2.75 , with matching voltage rating, pin layout, and flange compatibility.
Can I get CAD models?
Yes, CAD files are available upon request for system integration.
What conductor materials are available?
Copper, optional molybdenum or customization.
