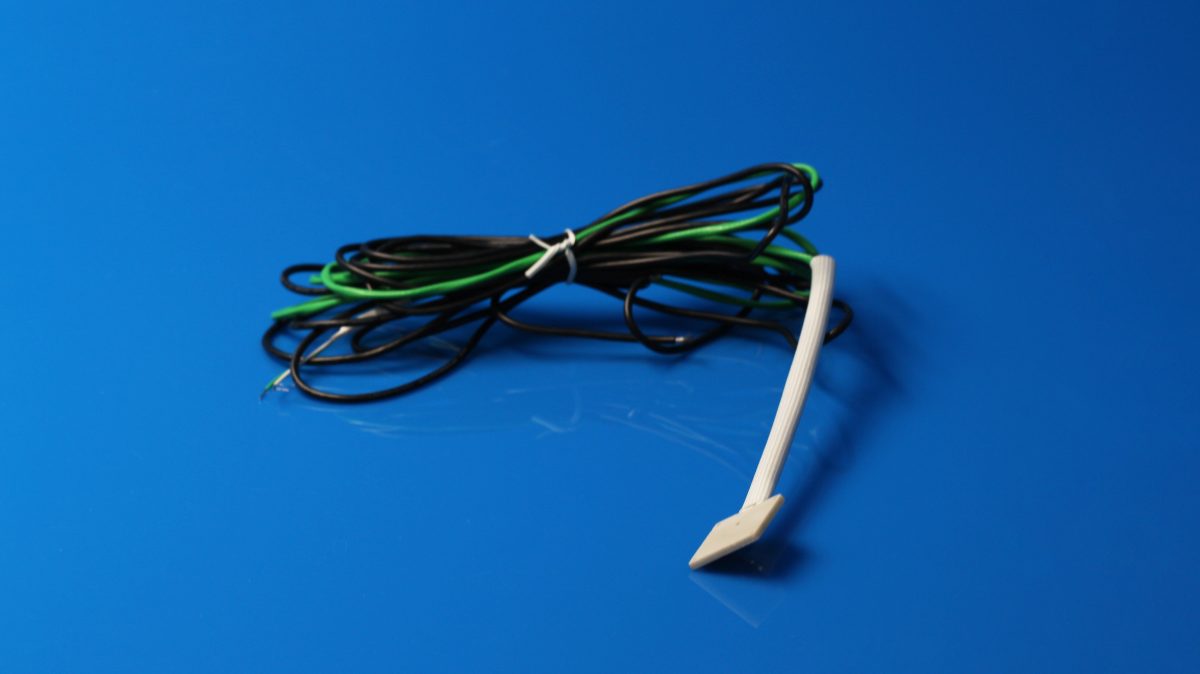

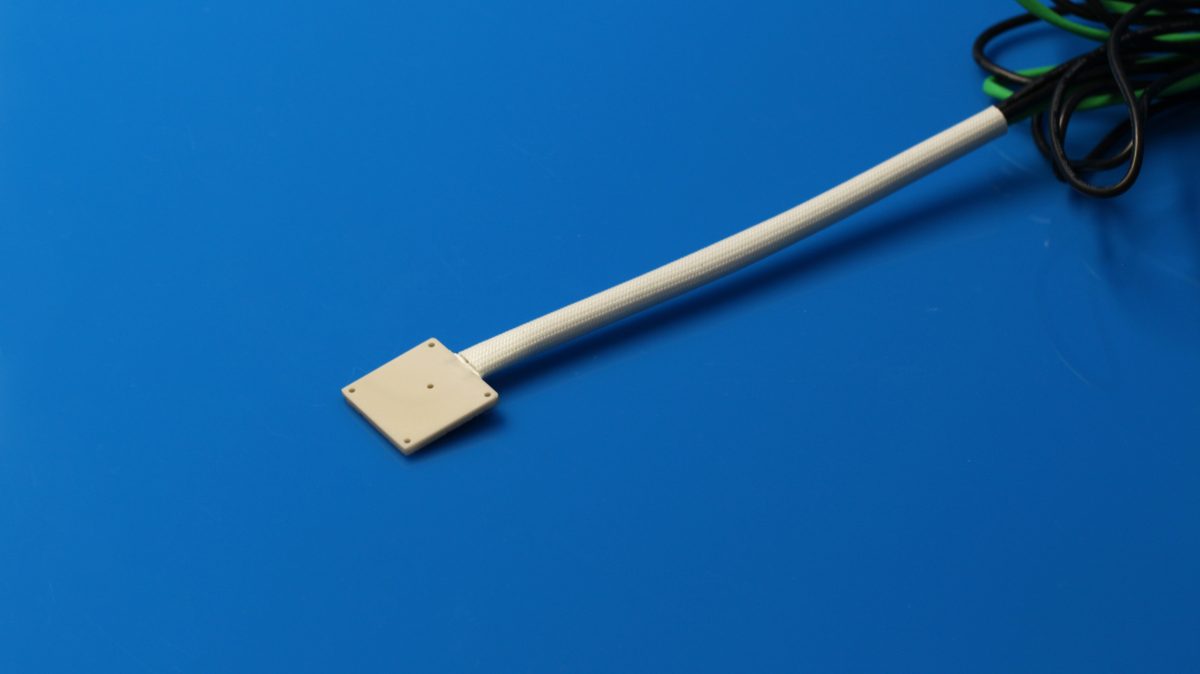

The maximum surface temperature can reach up to 600°C, with heating rates up to 150°C/s and power density up to approximately 155 W/cm². Dimensions, voltage, power, resistance, heating zones, holes, slots, vacuum grooves, and other mechanical features can be customized according to the equipment design and thermal requirements.
Optional K-type thermocouples or Pt100 RTD temperature sensors can also be integrated to support temperature monitoring and closed-loop control. This combination of compact heating, electrical insulation, temperature sensing, and mechanical customization makes AlN heaters suitable for equipment where space, thermal response, and system integration are critical.
Typical applications include semiconductor packaging and testing equipment, mass spectrometer ion sources, high-flow respiratory humidification systems, and other precision thermal equipment. Actual heater performance should be confirmed according to thermal load, mounting method, operating environment, and temperature control conditions.
Key Features
- Rapid thermal response with heating rates up to 150°C/s
- High power density in a compact ceramic structure
- High thermal conductivity combined with electrical insulation
- Optional K-type thermocouple or Pt100 RTD temperature sensing
- Custom heating zones for application-specific thermal distribution

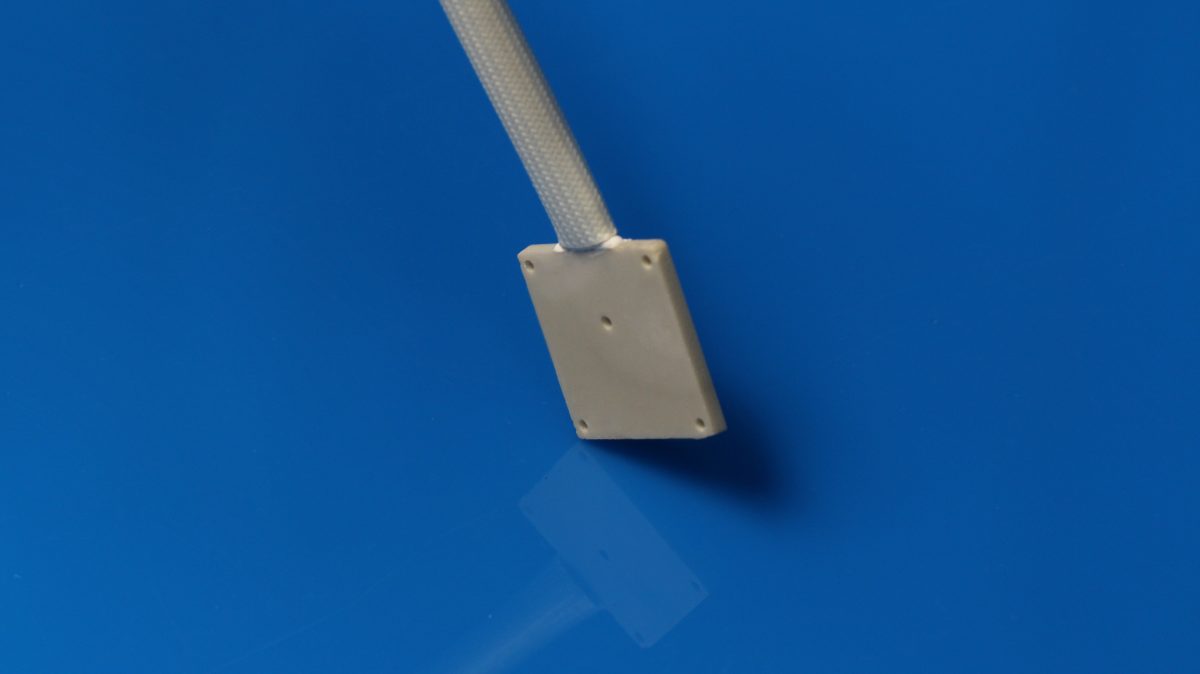

- Flexible mechanical design with holes, slots, vacuum grooves, and special geometries
- Custom voltage, power, resistance, dimensions, and sensor configuration
Typical Applications
- Semiconductor packaging and testing equipment
- Mass spectrometers and ion source heating
- High-flow respiratory humidification systems
- Precision heating and thermal control equipment
- Compact equipment requiring integrated heating and temperature sensing
Typical Customization Capability
| Parameter | Typical Capability |
|---|---|
| Ceramic Material | Aluminum Nitride (AlN) |
| Maximum Surface Temperature | Up to 600°C |
| Heating Rate | Up to 150°C/s |
| Power Density | Up to approx. 155 W/cm² (approx. 1000 W/in²) |
| Operating Voltage | 12–480 V, customizable |
| Size Range | Approx. 8–100 mm, depending on design |
| Thickness | Approx. 2.5–5 mm, depending on structure |
| Temperature Sensing | K-type thermocouple or Pt100 RTD, optional |
| Heating Zone Design | Single-zone or customized multi-zone heating configurations |
| Mechanical Features | Holes, slots, vacuum grooves, and custom geometries |
| Customization Options | Dimensions, voltage, power, resistance, heating zones, sensors, and mechanical structure |
Note: The values above represent typical design capabilities. Final specifications depend on heater geometry, electrical configuration, thermal load, mounting conditions, and operating environment.

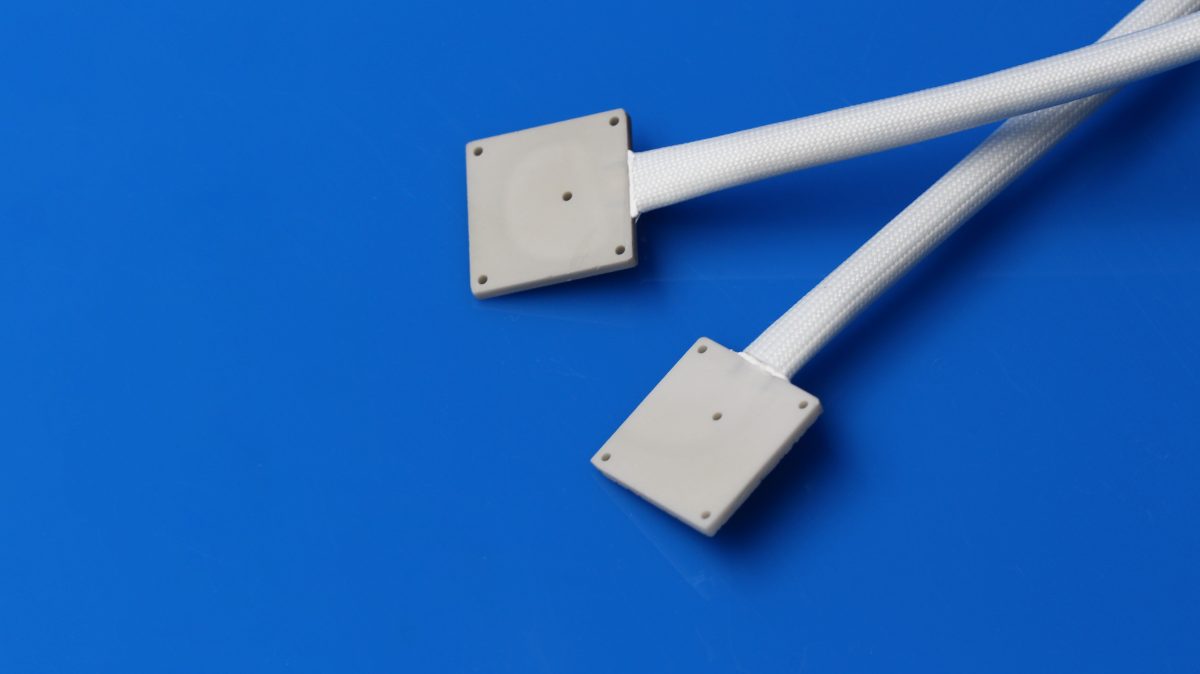

Designed for Precision Equipment Integration
For precision equipment, heater selection depends not only on maximum temperature, but also on how effectively the heater can be integrated into the overall thermal and mechanical system. A custom AlN ceramic heater can combine several functions within one compact component:
- Provide localized and rapid heating close to the target surface
- Transfer heat efficiently through the high-thermal-conductivity AlN ceramic
- Provide electrical insulation between the heating circuit and equipment structure
- Integrate optional temperature sensing for monitoring and control
- Support equipment assembly through customized holes, slots, vacuum grooves, and special geometries
- Support customized heating zones for more application-specific temperature distribution
This makes custom AlN ceramic heaters especially suitable for precision thermal systems with demanding requirements for compact size, rapid response, temperature control, and mechanical integration.
Need a Custom AlN Ceramic Heater?
Send us your drawing, dimensions, operating voltage, required power, target temperature, heating area, sensor requirements, and mounting conditions. INNOVACERA can develop a custom AlN ceramic heater according to your equipment structure and thermal design requirements.
Declaration: This is an original article of INNOVACERA®. Please indicate the source link when reprinting: https://www.innovacera.com/product/custom-aln-ceramic-heater
Frequently Asked Questions
Why Choose Aluminum Nitride for Precision Heating? What Thermal Advantages Does It Provide?
Aluminum Nitride (AlN) combines exceptional thermal conductivity (up to 230 W/m·K) with robust electrical insulation. This unique combination allows the ceramic heater to achieve extreme power densities (approx. 155 W/cm²) and rapid heating rates up to 150°C/s, reaching maximum temperatures of 600°C. Compared to conventional ceramic heaters, AlN positions the heat source directly next to your target surface, delivering superior thermal response and precise temperature uniformity in space-constrained assemblies.
Dealing with Complex Equipment Constraints? How to Order a Custom AlN Ceramic Heater?
Innovacera offers full design customization to fit your equipment’s mechanical and electrical architecture. Customers can custom dimensions (ranging from 8 mm to 100 mm), working voltages (12–480 V), multi-zone heating circuits, and structural features such as mounting holes, slots, or vacuum chuck grooves. You can also integrate K-type thermocouples or Pt100 RTD sensors. Simply submit your dimensional drawings, target operating temperatures, and electrical parameters to receive engineering support and a tailored quote.
