Magnesium Stabilized Zirconia Gas Atomizing Nozzles

MgO partially stabilized zirconia (Mg-PSZ) ceramic is an advanced ceramic material with high-performance applications. It is a composite material consisting of zirconium dioxide and a partial stabilization of magnesium oxide. MgO here helps to improve the toughness and mechanical properties than pure zirconia,such as higher fracture toughness, strength, and resistance to thermal shock.


Magnesia Stabilized Zirconia (MSZ) is a great refractory and insulating material due to high oxygen ion conductivity, high strength and toughness, and good thermal shock resistance. It has a clean melt at temperatures above 1900°C and above and is specially manufactured for melting superalloys and precious metals. Its superior thermal shock resistance to temperatures reaching up to 2200°C.

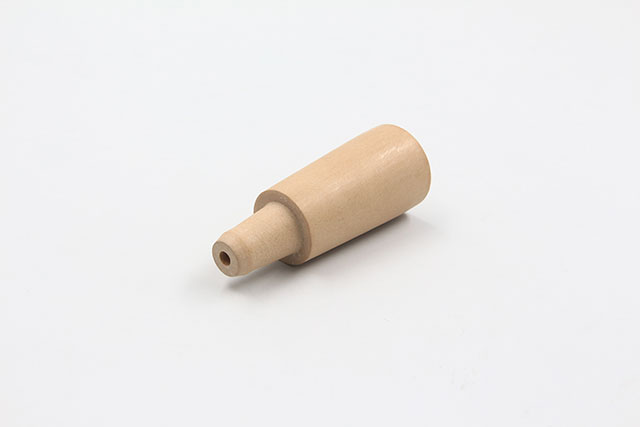

Magnesium Stabilized Zirconia Gas Atomizing Nozzles


Gas atomization is a technique crucial to produce fine metal powder which can precisely control particle size and composition. In this process, molten metal is atomized into small droplets with high-velocity gas streams. In common way, nozzles is made by materials like tungsten carbide or zirconia ceramic . However, the advent of Magnesium Stabilized Zirconia Gas Atomizing Nozzles introduces a paradigm shift in this domain.


Magnesium Stabilized Zirconia Gas Atomizing Nozzles have emerged as a transformative technology, revolutionizing the metal powder production and shaping the landscape of various industries.


Magnesium Stabilized Zirconia


1.Enhanced Thermal Stability: with high thermal shock resistance, it enable the nozzles to withstand extreme temperatures encountered during the atomization process, which can increase the operational lifespan and reliability.


2.Improved Corrosion Resistance: The inherent corrosion resistance of zirconia is further augmented by magnesium stabilization, which makes the nozzles with high wear-resistant and erosion-resistant.


3.Precision Atomization: The unique surface properties of magnesium-stabilized zirconia benifits uniform gas flow and efficient atomization, resulting in the production of metal powders with superior quality and consistency.


4.Reduced Maintenance Costs: The high strength nature of Magnesium Stabilized ZirconiaNozzles reduces the frequency of maintenance and replacement, so it is cost savings for industrial applications.


Gas Atomizing Nozzles


With the advantage of high thermal shock resistance, high wear-resistant and erosion-resistant,metal corrosion resistance in high temperature, excellent non-wetting characteristics, high strength, long service life and the stabilizers and grains combination can be designed according to customer’s using environment, magnesium Stabilized Zirconia Gas Atomizing Nozzles finds application across a diverse range of industries:


1.Metallurgy: magnesium Stabilized Zirconia nozzles are used in the metallurgical industry like continuous casting of steel, where they can withstand high temperatures and harsh conditions.


2.Thermal spraying: In thermal spraying processes, magnesium-stabilized zirconia ceramic nozzles are used to spray coatings onto surfaces to protect against corrosion, wear, and high temperatures.


3.Semiconductor industry: They are employed in the semiconductor industry such as chemical vapor deposition (CVD) and physical vapor deposition (PVD) , where precise control of material deposition is required.


4.Specialty glass manufacturing: manufacturers can use Magnesium stabilized zirconia nozzle’s diameter, spray pattern, and flow rate optimizing performance for various specialty glass manufacturing processes.




Besides the example list above, Mg-PSZ can be use for other field like Artificial/Laser Crystal Ceramic Temperature Field and high temperature melt flow control.With their high thermal shock resistance, high wet & corrosion resistance, and precision atomization capabilities, it can change many industry’s production status.
