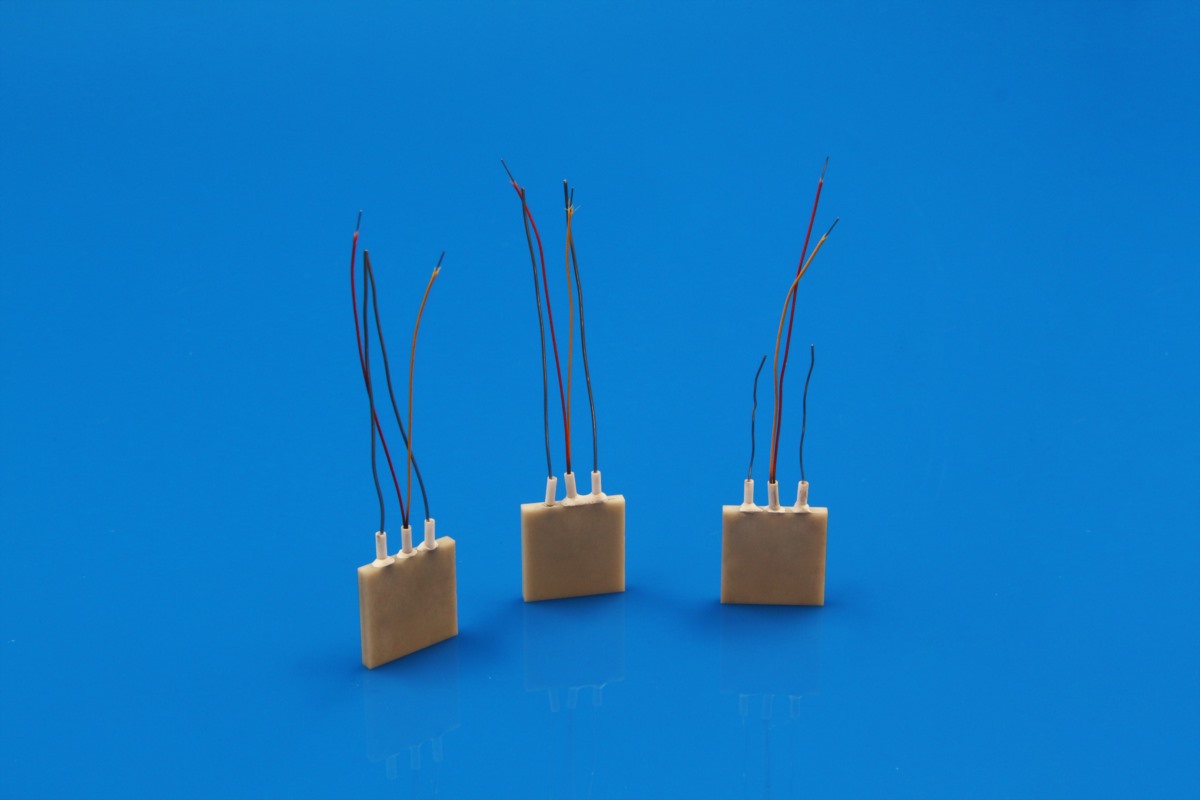

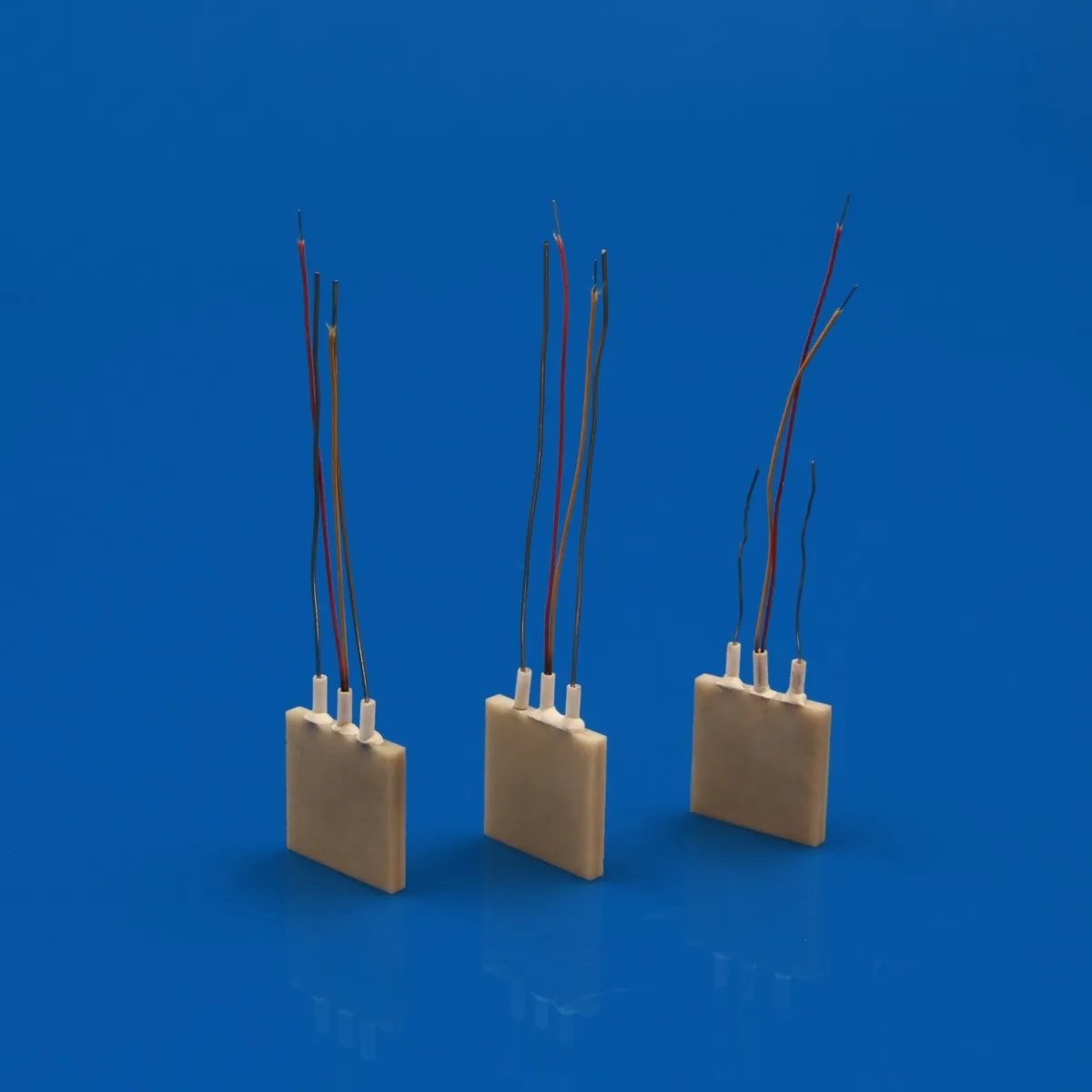

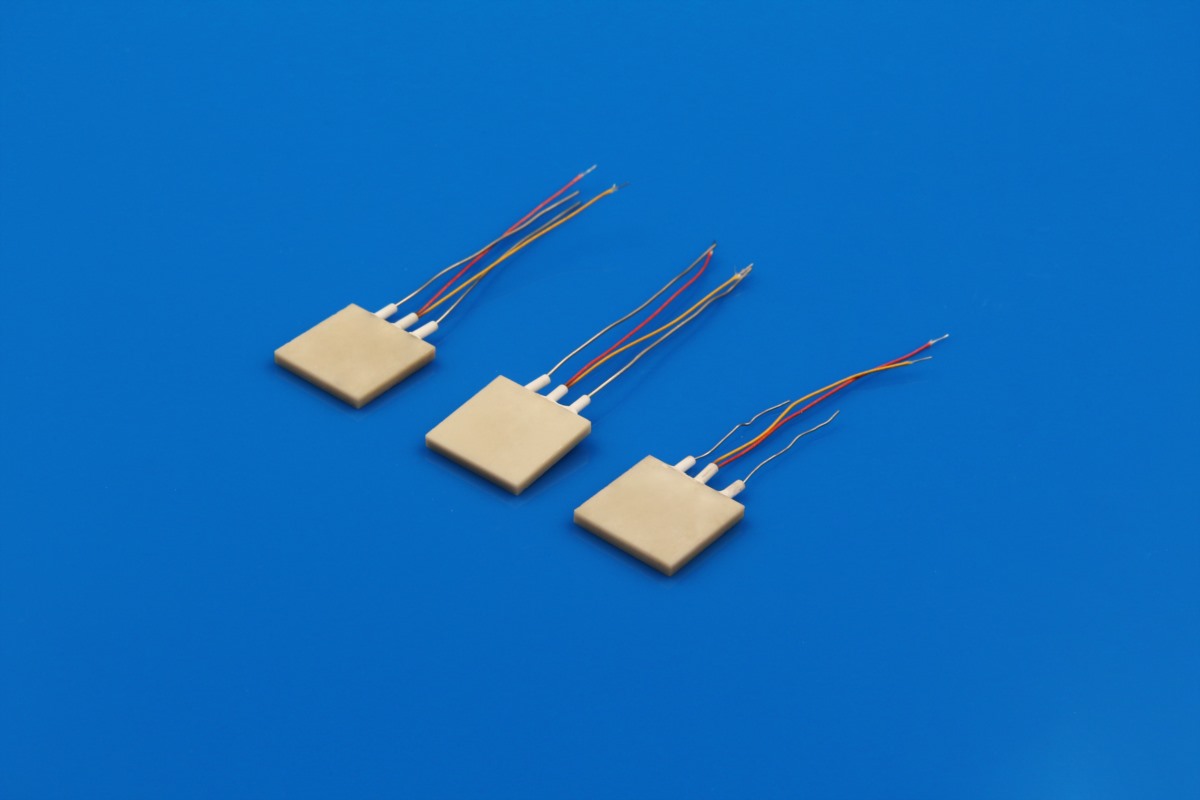

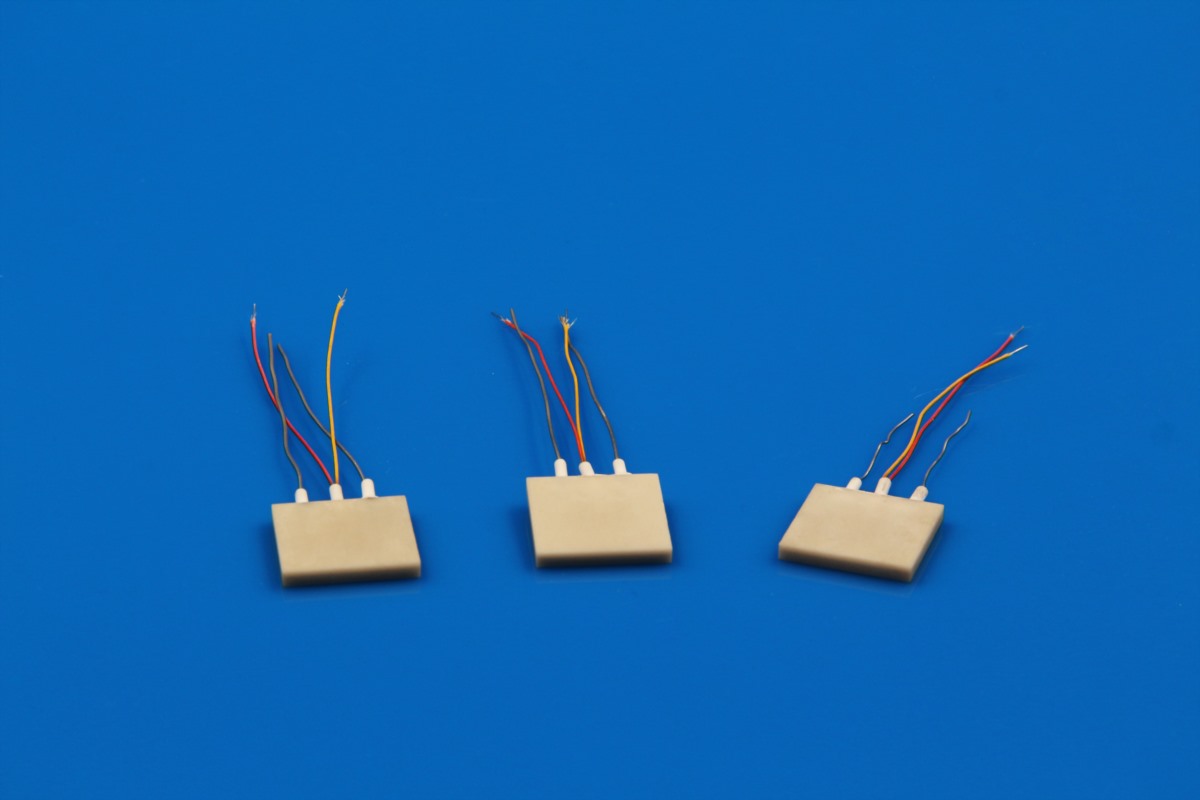

This aluminum nitride ceramic heating element launched by INNOVACERA can heat ultra-fast through the use of ceramics (AIN), and provides a service life that can meet the requirements of various use environments. Being an advanced value-added product helps add more value to your products/systems.
Product Features:
| Thermal Properties | Thermal Conductivity | 150 W/mK |
|---|---|---|
| Thermal Expansion Coefficient | 4.5 ppm/℃ | |
| Physical Properties | Density | 3.2 g/cm³ |
| Hardness | 1050 Hv@500g | |
| Flexure Strength | >250 MPa | |
| Electrical Characteristics | Voltage | 12-240V |
| Leakage | ||
| Capacitivity | 8.9 | |
| Insulation Voltage | 15 KV/mm |
Characteristics:
The heater can have a built-in K-type thermocouple, so it has good temperature sensing characteristics, improves its responsiveness to rapid heating and cooling, and can be used safely.
Fast Heating and Cooling
The aluminum nitride substrate with high thermal conductivity can be used to chieve rapid heating and cooling, and the thermal expansion rate can be used according to the material properties to design under high power density, so it can also be used for rapid heating and cooling (both 150℃/sec) temperature cycle.
Excellent Electrical Performance
Excellent insulation and voltage resistance at high temperatures.
Specification:

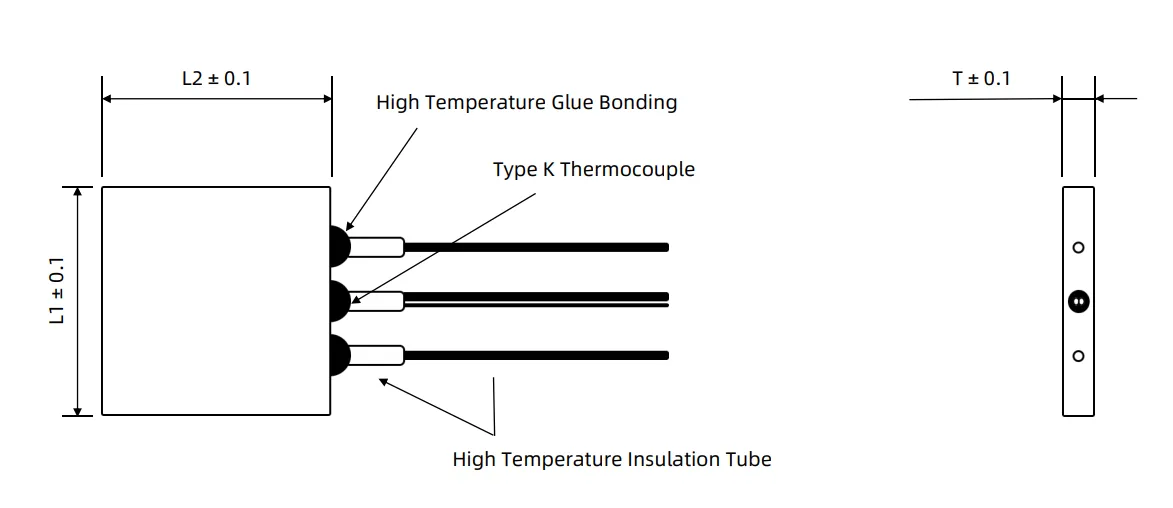

| Dimensions (L×T) [mm] | Voltage [V] | Wattage [W] | Power Density [W/cm²] | Resistance Value [Ω] |
|---|---|---|---|---|
| 12.0 × 2.5 | 100-200 | 45/100 | 31/69 | 222/400 |
| 19 × 2.5 | 110-200 | 155 ±10% | – | 78 |
| 20.0 × 2.5 | 100-200 | 100 | 25 | 100/400 |
| 25.0 × 2.5 | 100-200 | 150-600 | 24-96 | 67 |
| 50.0 × 2.5 | 100-200 | 400-1600 | 16-64 | 25 |
| Customization | – | – | – | – |
Application
– Semiconductor manufacturing industry
– Automotive
– Medicals
– Packaging machines
– Railway industry
