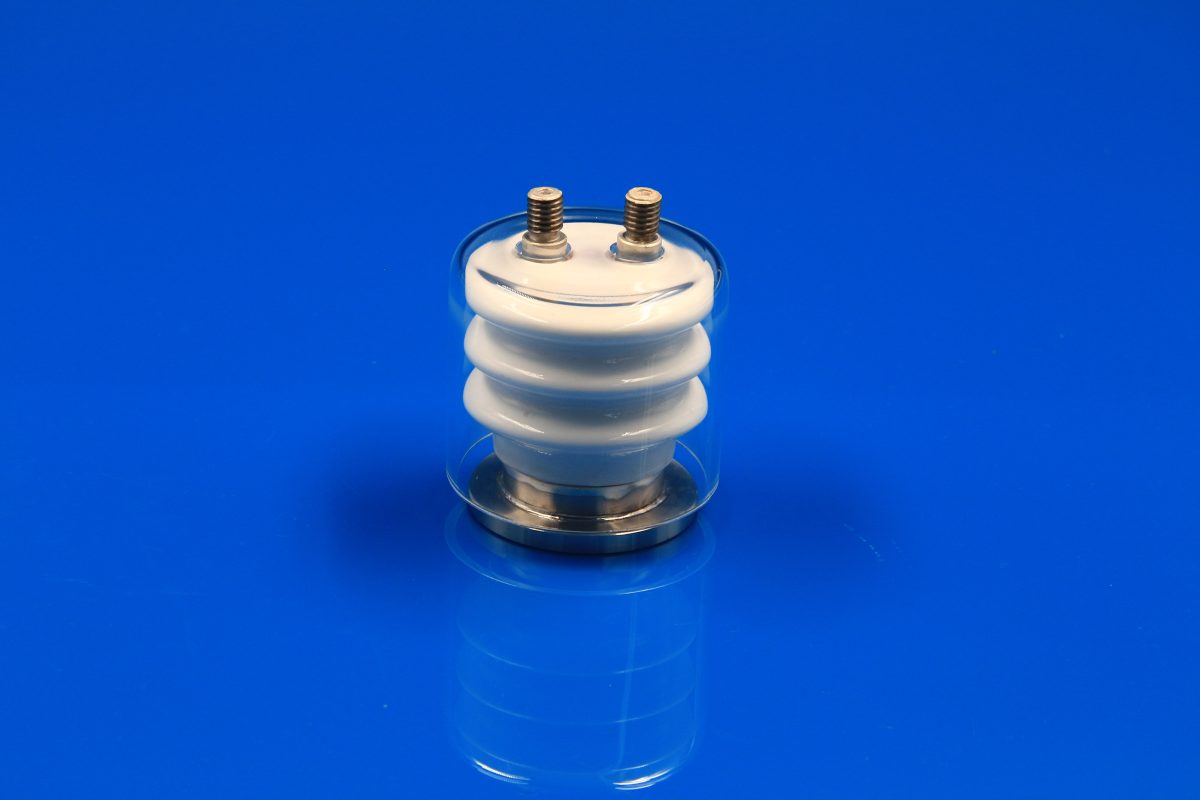

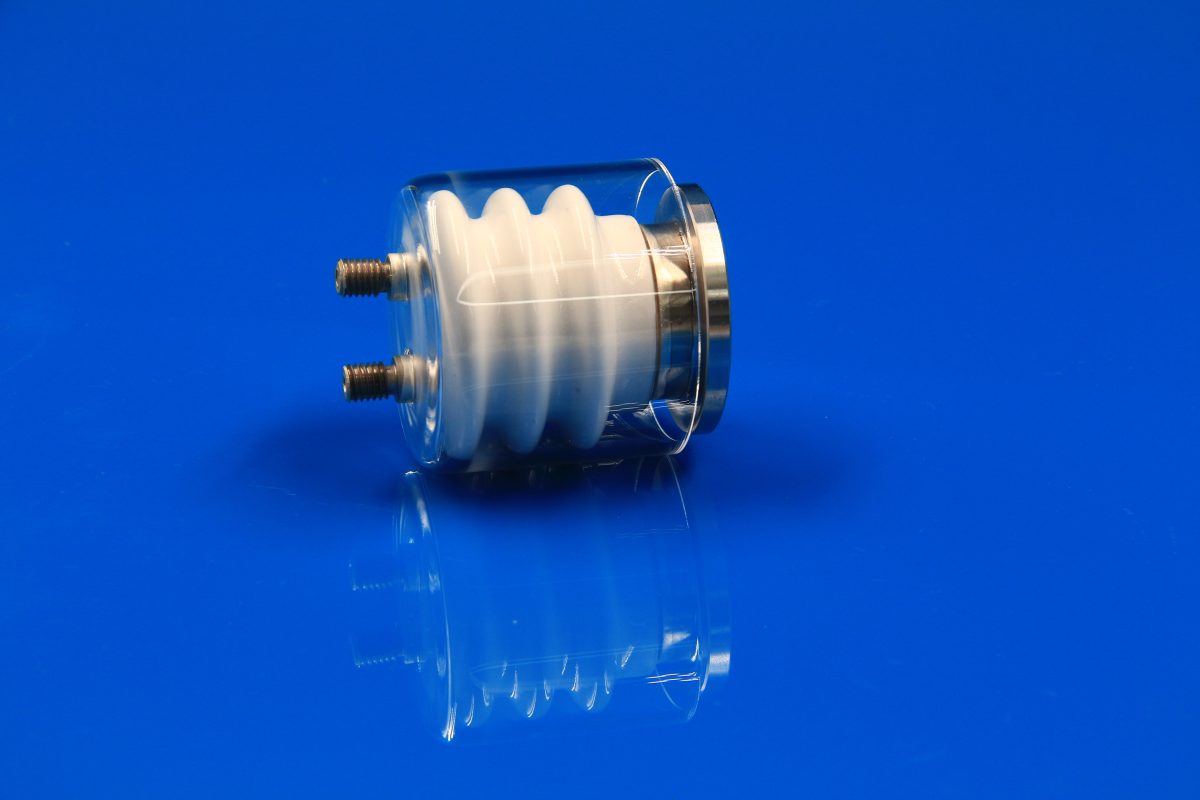

The two independently insulated terminals can be connected to evaporation sources,heating elements,electrodes,or other internal electrical components.Externally threaded conductor rods simplify connections to cables,busbars and electrodes,while the stainless steel base allows secure welded integration with the vacuum chamber or mounting flange.

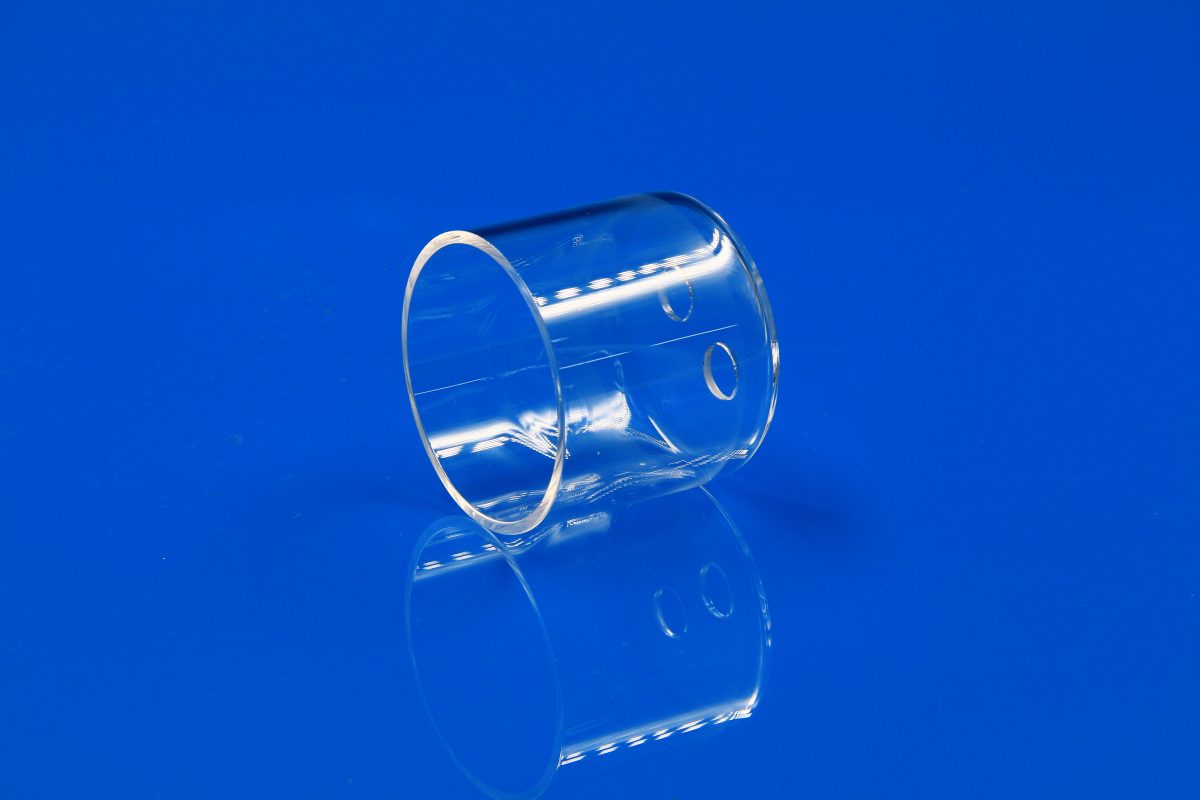

The ceramic-to-metal assembly combines 96% alumina ceramic,Kovar conductor components, C1220 copper components,and a SUS304 stainless-steel base.This construction provides electrical insulation,mechanical stability,and vacuum sealing performance during vacuum operation and repeated temperature cycling.An optional quartz glass shield can also be supplied to help protect the ceramic insulation and connection area from evaporated materials and process deposits.
Key Features
- Dual-Pin Electrical Connection
- Ceramic-to-Metal Vacuum-Sealed Structure
- Welded Installation
- Externally Threaded Terminal Design
- Protection Against Process Deposits
- Designed for Repeated Temperature Cycling
- Compact Integrated Structure
- Customizable Equipment Interface
Technical Specification:
| Parameter | Specification |
|---|---|
| Product Type | Dual-pin high voltage ceramic insulator |
| Number of Conductor Terminals | 2 |
| Ceramic Material | 96% alumina ceramic |
| Conductor Material | Kovar |
| Copper Component Material | C1220 copper |
| Base Material | SUS304 stainless steel |
| Installation Method | Welded installation |
| Terminal Configuration | Externally threaded conductor rods |
| Leak Rate | 4.2 × 10⁻⁶ Pa·m³/s |
| Primary Applications | Vacuum coating equipment and vacuum evaporation systems |
Typical Applications:
· Thermal evaporation coating equipment；
· Resistance evaporation sources；
· Evaporation boats and filaments；
· Crucible heaters；
· Vacuum resistance heating systems；
· Laboratory vacuum deposition equipment
Why Use a Ceramic-to-Metal High Voltage Insulator?
Conventional electrical connections may be affected by aging, outgassing,reduced insulation performance,or seal degradation under vacuum,temperature cycling,and continuous electrical loading.A ceramic-to-metal high-voltage insulator combines the good electrical insulation of alumina ceramic with the mechanical strength and weldability of metal components and have below advantages:
1.Reliable electrical isolation between the conductors and the vacuum chamber;
2.Stable electrical power transmission through the chamber wall;
3.Secure welded integration with the vacuum chamber or mounting flange;
4.Good heat resistance and dimensional stability;
5.Lower outgassing risk than conventional polymer-insulated structures;
6.Suitability for long-term vacuum operation and repeated temperature cycling.
Need Customized High Voltage Ceramic Insulator?
INNOVACERA can make customized ceramic-to-metal high-voltage insulators as per your drawings, samples with specific vacuum system requirements. If you have a project about this, pls provide your required size, operating voltage, current per terminal, vacuum level, installation method, and using temperature.
