technical ceramic solutions

The feacure of Cearmic Reflector

Ceramic reflector is designed to reflect and direct light efficiently with various applications. Compared with traditional reflectors made by metals like aluminum, our ceramic reflectors are crafted by advanced ceramic materials 99 Alumina ceramic which has several advantages:



1.Optical Properties: Alumina has high reflectivity in certain wavelengths. It can control diffusion of light more precise and control over light distribution and efficiency, which makes ceramic reflectors suitable for optical systems, specialized lighting applications, and scientific instruments.



2.Thermal Stability: compared with metals, Al2O3 has higher thermal stability which can withstand much higher temperature without deforming or losing their reflective properties. It makes ceramic reflectors an ideal component where heat resistance is crucial, such as in industrial furnaces, high-intensity lighting and automotive headlight.



3.Electrical Insulation: 99 Alumina is an excellent electrical insulators. In applications where electrical conductivity of reflector could have safety risks, it requires to use an electrical insulation material like Alumina.



4.Corrosion Resistance: Alumina has an extreme corrosion resistance. This property makes it more durable and longer service life in environment exposed to chemical and moisture conditions.



The Alumina ceramic reflectors play an important role in industries where requires to use heat-resistant and robust materials with excellent electrical insulation and optical properties. It can be found the application in various industries and technologies with high strength, thermal stability, and excellent electrical insulation. Some common applications of alumina ceramic reflectors include:



*Optical Systems
*High-Intensity Discharge Lighting
*Infrared Heating
*Semiconductor Manufacturing
*Industrial Furnaces and Kilns
*Microwave Applications
*High-Temperature Environments



BAB299 ceramic reflector



Typical Models
• BAB – the external shape is round like BAB330-130, BAB192, BAB275, BAB350.
• ZAB – the external shape is irregular like ZAB-S04-30.
• LAK – the external shape is rectangular but one side is concave like LAK311.
• EAB – the external shape is rectangular;
• GAZ – the external shape is triangular;
• Description of part number: CRDP-XX-YY-Z-AAA-BBB

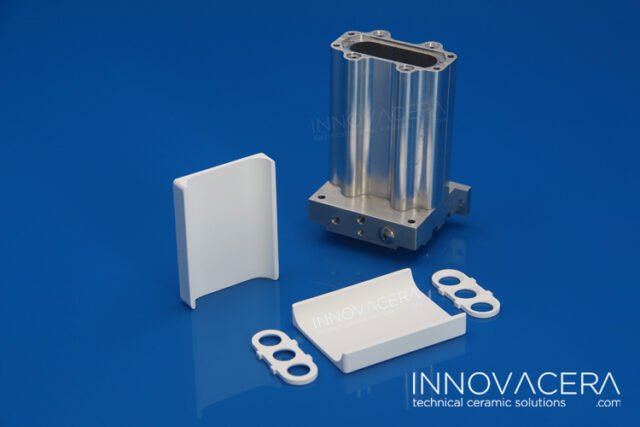

Ceramic laser reflectors



Innovacera Ceramic laser reflectors are high reflectance cavities used in solid state and CO2 laser systems. Our range of custom ceramic reflectors offer significant advantages and improvements over those made with materials such as metal and polymer, it work particularly well in Ruby and Nd: YAG laser pumping chambers and used extensively for long-life laser reflectors.



The use of ceramic reflectors represents a significant advancement. Their ability to withstand high temperatures, resist corrosion, and maintain reflective efficiency makes them invaluable in applications ranging from optical systems to semiconductor industry. Moreover ceramic reflectors contribute to sustainability by improving energy efficiency and reducing maintenance costs over the long term.
