Alumina Crucible for Thermal Analyzer

  • Alumina Crucible for Thermal Analyzer
  • Alumina Crucible for Thermal Analyzer
  • Alumina Crucible for Thermal Analyzer
  • Alumina Crucible for Thermal Analyzer

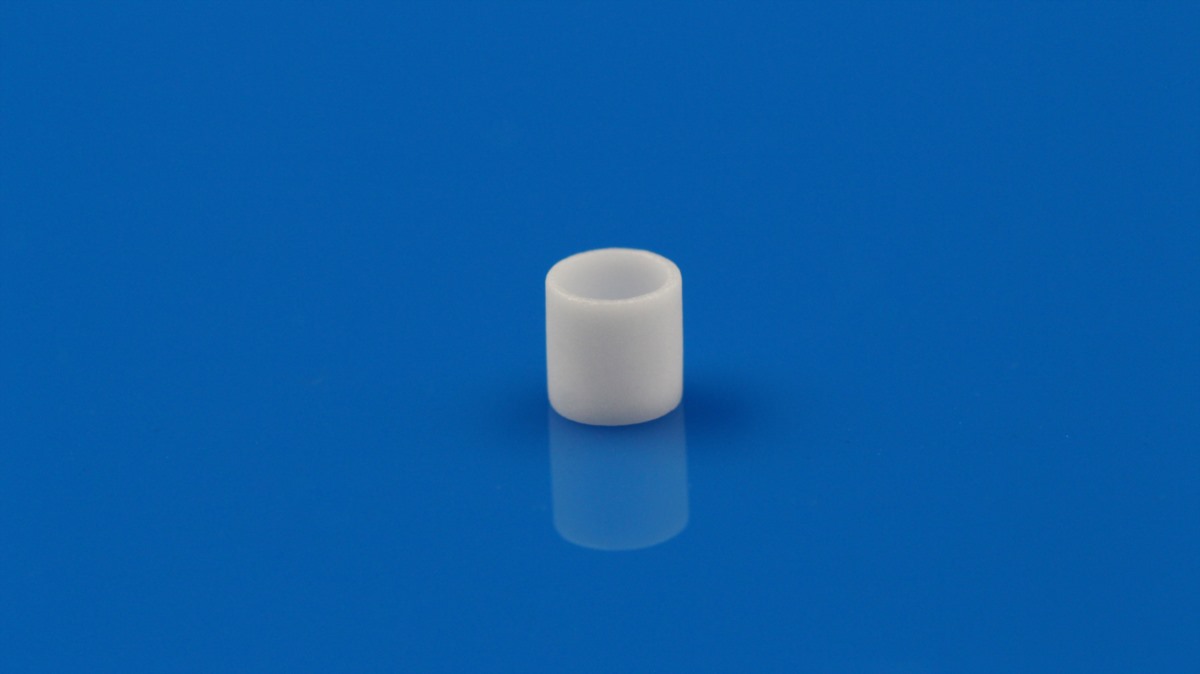

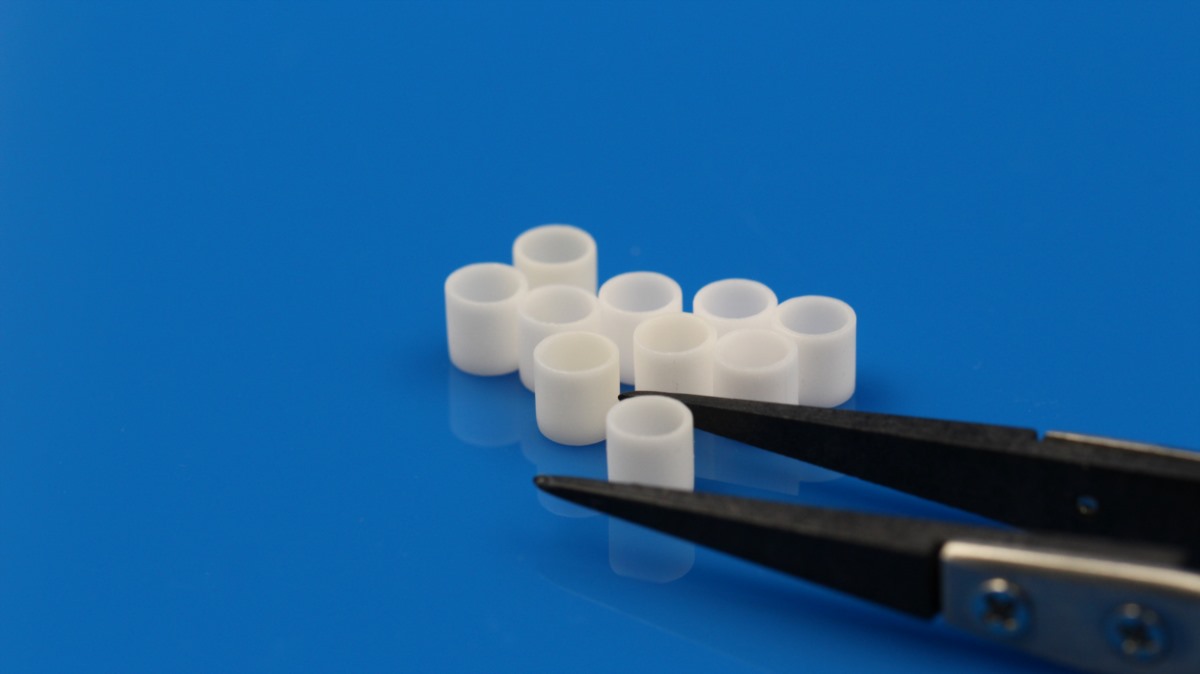

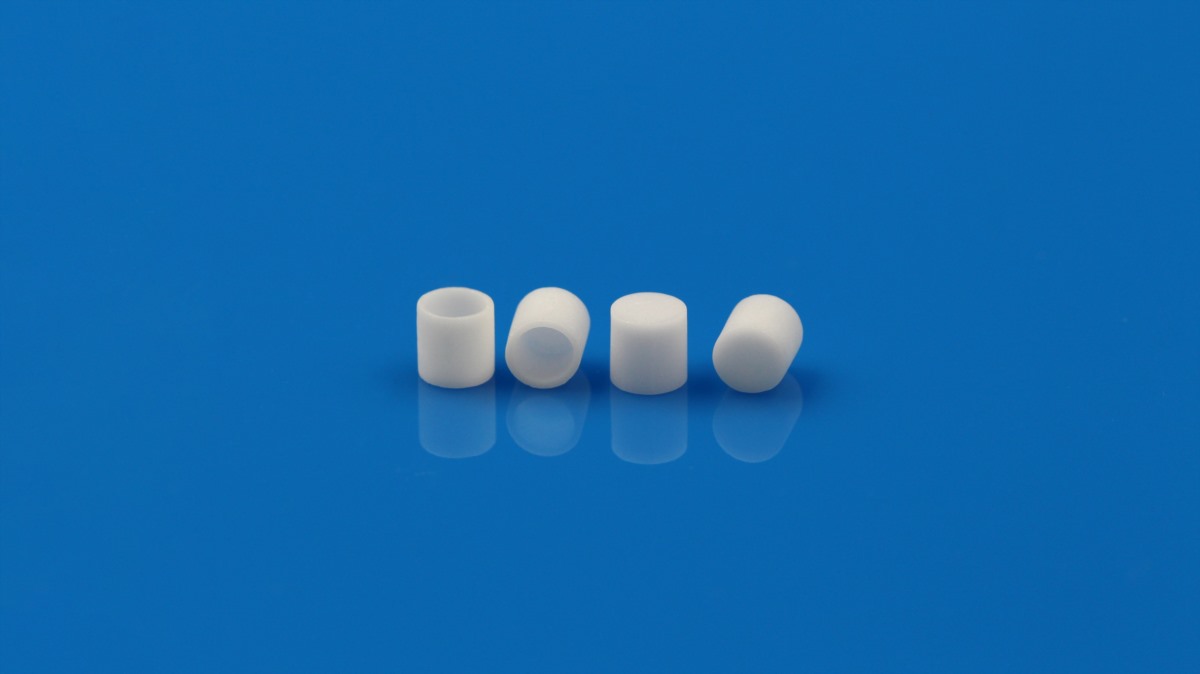

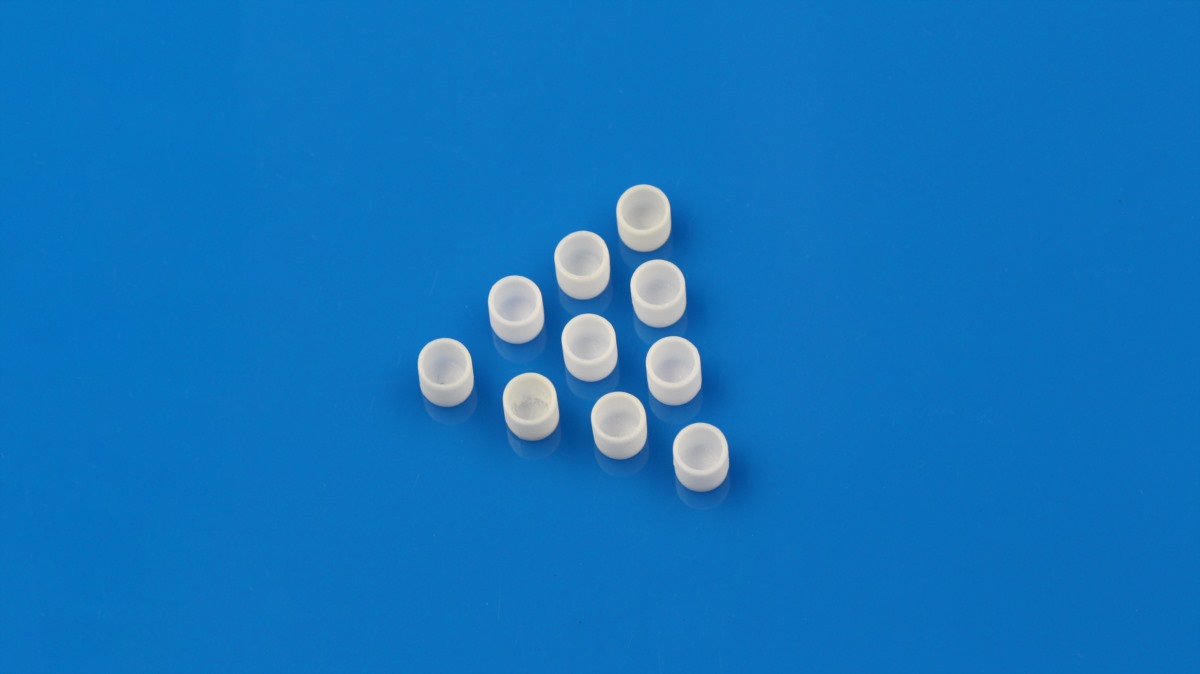

This miniature crucible product is mainly manufactured from 99% high-purity alumina material with precision. It is specially designed for various thermal analysis instruments such as TGA, DSC, and DTA. The high-purity alumina has the properties of high temperature resistance and low thermal expansion coefficient. This enables the crucible to withstand the rapid heating and cooling of the instrument, and it is less likely to crack. As a result, the test data is more sensitive. As an experimental precision tool, it has a very small capacity and is lightweight. Its design is mainly aimed at testing small samples, in order to reduce sample consumption while still being able to fit the sample chamber size of the thermal analyzer.

Alumina Crucible for Thermal Analyzer

Features
• Miniature design: Suitable for small sample volumes.
• High-purity alumina (≥99%): Resistant to high temperatures and with strong chemical stability.
• Fast thermal response: Uniform heating improves the accuracy of thermal analysis.
• Multiple sizes available: Meeting different sample volumes and experimental requirements.
• Heat resistance cycle: Capable of withstanding repeated heating and cooling by TGA/DSC/DTA instruments.

Applications:
• Research on Thermal Properties of Polymer Materials, Ceramics and Composite Materials
• Thermal analysis of battery materials, powders and chemical samples
• Thermal analysis tests conducted by academic research institutions and industrial laboratories

Innovacera offers various sizes of 99% alumina crucibles for thermal analysis instruments, which can accommodate different sample volumes and experimental requirements. Please feel free to contact us for more product information and customized services.

Size example:

Diameter Volume
OD2.9×ID2×4.5mm 15μL
OD4×ID3×4mm 30μL
OD4×ID3×5mm 30μL
OD5×ID4×2.5mm 20μL
OD5×ID4×3.5mm 30μL
OD5.2×ID4.2×2.5mm 25μL
OD6×ID5×2.5mm 25μL



Download PDF Catalog

Declaration: This is an original article of INNOVACERA®. Please indicate the source link when reprinting: https://www.innovacera.com/product/alumina-crucible-for-thermal-analyzer.

FAQ

Miniature alumina crucibles are precision experimental tools specifically designed for thermal analysis instruments like TGA, DSC, and DTA. They are widely used in the thermal property research of polymers, ceramics, composites, and battery materials. Choosing 99% high-purity alumina ensures exceptional high-temperature resistance, a low thermal expansion coefficient, and strong chemical stability. This enables the crucible to easily withstand rapid heating and cooling cycles without cracking, ensuring the test data is highly sensitive and accurate.

A miniature, lightweight crucible design significantly reduces sample consumption while perfectly fitting the sample chamber size of thermal analyzers. This structure provides a fast thermal response and uniform heating, which directly improves the accuracy and sensitivity of the thermal analysis. To meet different experimental requirements, Innovacera offers these crucibles in various precision sizes, typically ranging from 15μL to 30μL in volume, with outer diameters (OD) starting from 2.9mm up to 6mm.
