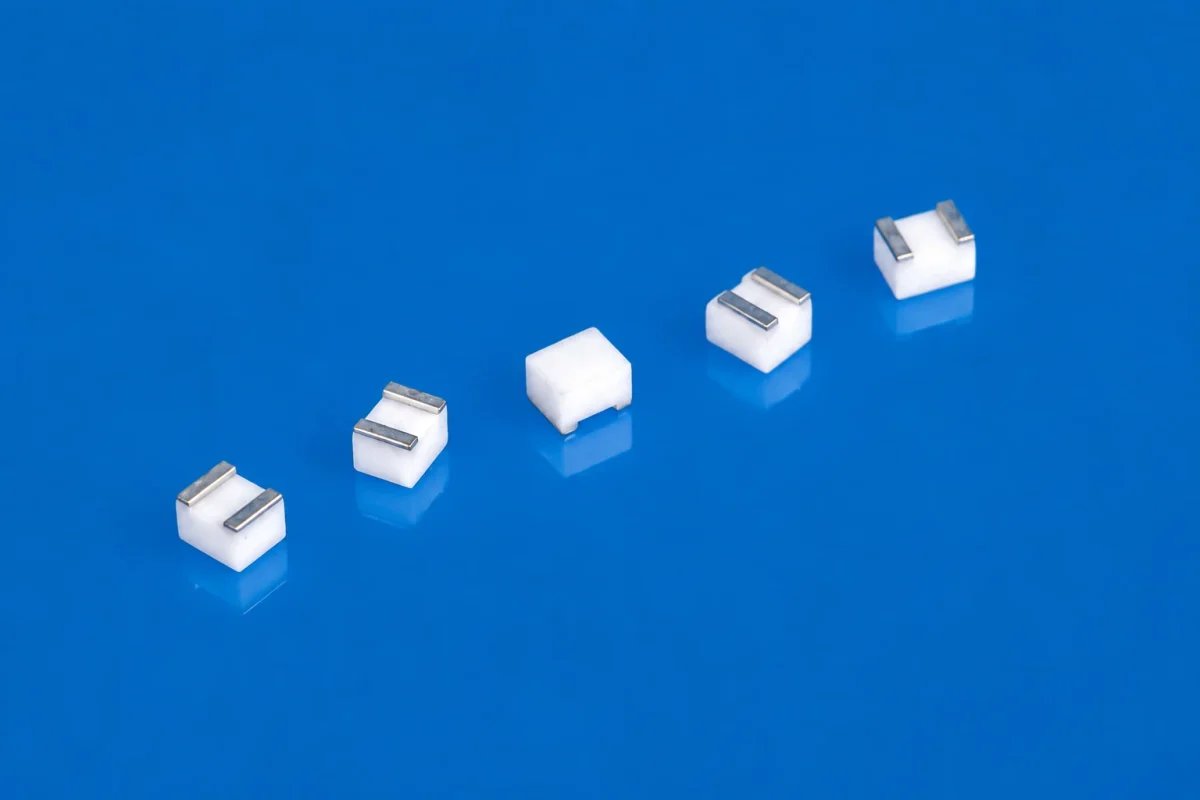

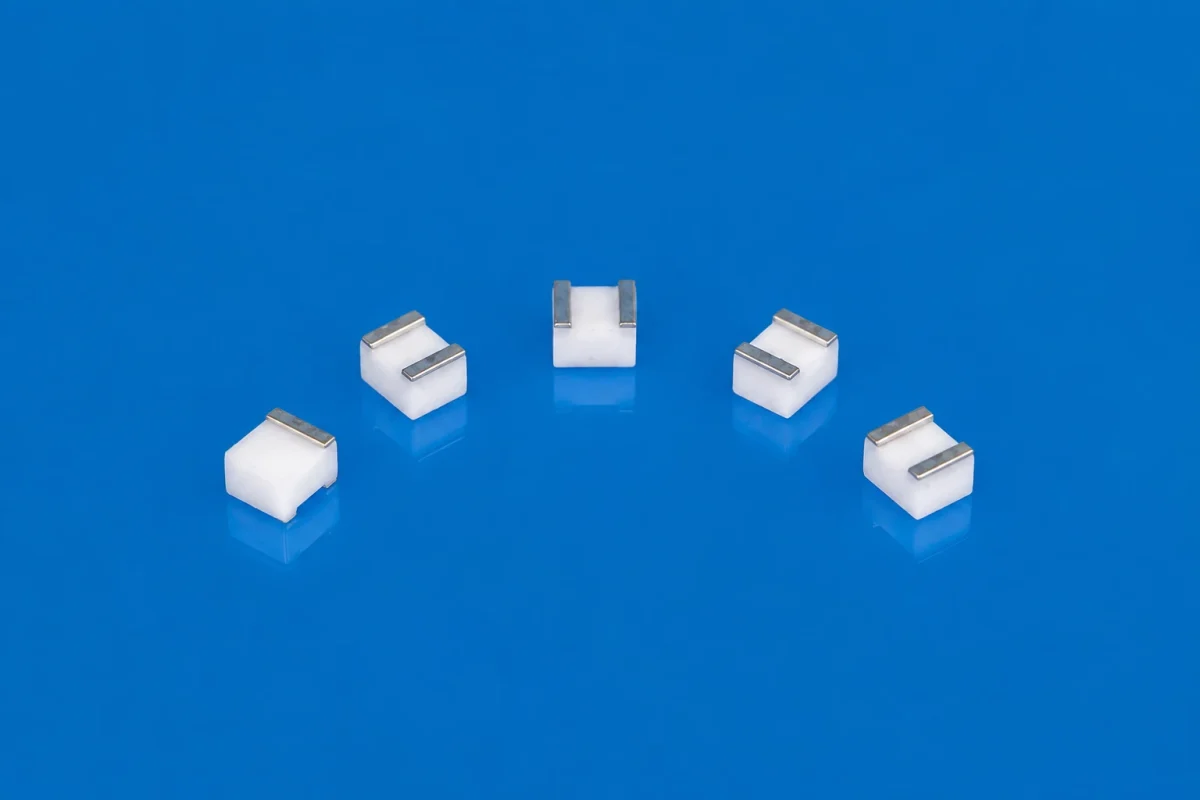

INNOVACERA manufactures these cores using precision ceramic forming and controlled metallization. They provide electrical insulation, mechanical support, and consistent dimensions for precision winding, terminal connection, lead free soldering, or high-temperature bonding. Multiple structures, termination styles, and standard chip sizes are available for miniature, high-frequency RF chip inductors.
Product Features
- Designed for wirewound RF chip inductors and surface-mount winding and assembly
- High dimensional accuracy and batch consistency support stable winding and terminal connection
- Flat and L-shaped terminations are available for different electrode and assembly designs
- Tin-plated terminals support lead-free soldering; gold-plated terminals support high-temperature bonding
- Custom sizes, core structures, terminations, and metallization systems are available
Available Specifications
| Item | Available Options |
|---|---|
| Ceramic Material | 96% Alumina Ceramic |
| Standard Size Codes | 0603, 0804, 1005, 1608, 2012, 2520, 3216 |
| Core Structures | 2U / 2H / 4H |
| Termination Configurations | Flat Termination / L-Shaped Termination |
| Metallization System | Mo-Mn or Ag / Pd base layer, with optional Ni intermediate layer |
| Surface Finish | Standard Tin Plating / Optional Gold Plating |
Typical Material Properties
| Property | Unit | A-96 White Alumina |
|---|---|---|
| Alumina Content | % | 96 |
| Bulk Density | g/cm³ | 3.7 |
| Flexural Strength | MPa | 320 |
| Dielectric Constant | – | 9.5 |
| Dissipation Factor | ×10⁻³ | <10 |
Typical Applications
Used in wirewound ceramic RF chip inductors and other surface-mount high-frequency wirewound inductors for MHz-to-GHz circuits, wireless communication, communication equipment, automotive electronics, industrial electronics, and consumer electronics.
Looking for the right ceramic core for your RF chip inductor project?
Send us your drawing or target dimensions and specify the required core structure, termination, metallization, and surface finish. INNOVACERA supports sample evaluation, technical review, and custom production.
