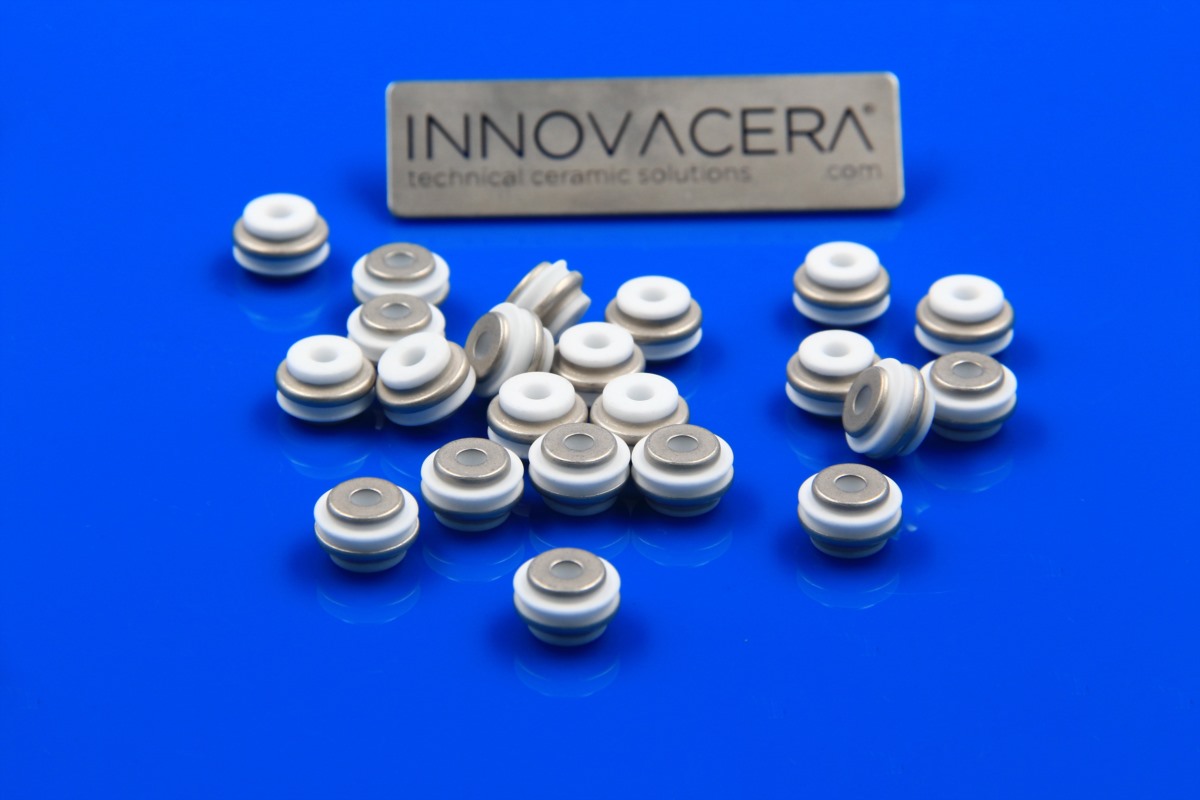

Metallized ceramic bushings and Ceramic to Metal Assemblies

Metallized ceramic bushings are widely used in the joining process of ceramics and metals. Ceramics have excellent insulation properties and can be well combined with metals through the metallization process. In addition to standard bushings, INNOVACERA is available in many custom shapes and sizes.

Quote/Order

INNOVACERA also has brazing capabilities and can provide a one-stop service from ceramics to brazed components. This serivce allows us to offer finished hermetically sealed ceramic terminals for assembly.

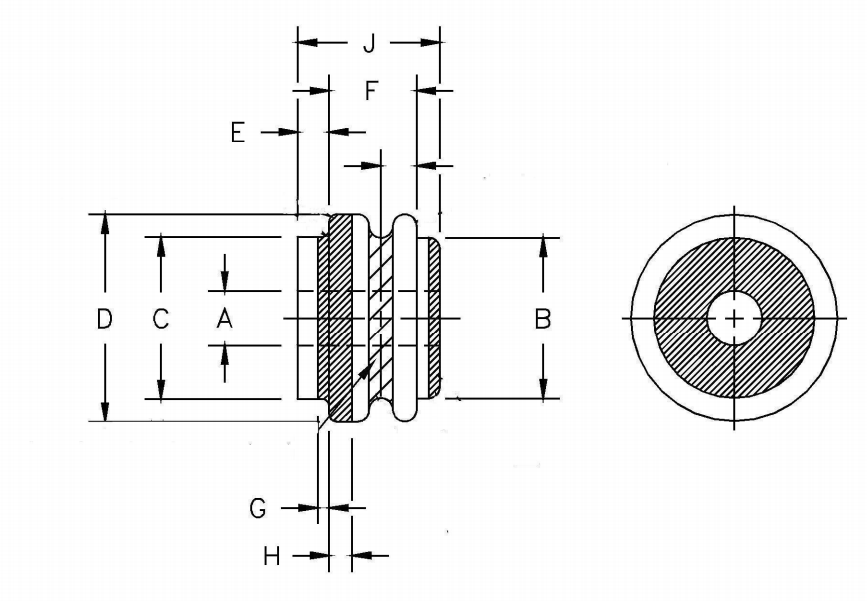

Ceramic to Metal Assemblies Designs

Part #	D	A	J
IN-CM-400	0.494	0.143	0.309
IN-CM-400-1	0.494	0.169	0.309
IN-CM-400-1M	0.494	0.228	0.309
IN-CM-400-2	0.562	0.200	0.375
IN-CM-400-2M	0.562	0.250	0.375
IN-CM-400-3	0.619	0.260	0.403
IN-CM-400-4	1.000	0.320	0.500
IN-CM-400-5	0.994	0.447	0.497
IN-CM-400-6	0.556	0.200	0.372
IN-CM-400-7	1.05	0.51	0.497
IN-CM-400-8	0.744	0.265	0.372
IN-CM-400-8-1	0.744	0.302	0.372
IN-CM-400-8-2	0.750	0.344	0.375
IN-CM-400-9	0.994	0.382	0.497
IN-CM-400-9-1	0.994	0.382	0.497
IN-CM-400-10	1.75	0.76	0.625
IN-CM-400-12	0.556	0.200	0.278
IN-CM-400-14	0.562	0.260	0.375

Ceramic to Metal Assemblies

Declaration: This is an original article of INNOVACERA®. Please indicate the source link when reprinting: https://www.innovacera.com/product/metallized-ceramic-bushings-and-ceramic-to-metal-assemblies

Frequently Asked Questions

Need custom metallized ceramic bushings? How do your one-stop brazing services fit complex designs?

Yes. INNOVACERA specializes in both standard and custom metallized ceramic bushings tailored to your drawings. We provide a full one-stop service from raw ceramic machining and precise metallization (Mo-Mn / thin film) to high-reliability vacuum brazing, ensuring tight dimensional tolerances and hermetic joints for high-temperature and vacuum applications.

Looking for a reliable ceramic to metal assemblies manufacturer? How do you ensure leak-proof hermetic sealing?

As an experienced ceramic-to-metal assemblies manufacturer, INNOVACERA guarantees robust hermeticity through optimized metallizing formulas, premium brazing alloys, and rigorous 100% helium mass spectrometer leak testing (<1×10⁻⁹ mbar·l/s). Our products provide superior electrical insulation, high dielectric strength, and thermal shock resistance.
