The Ideal Material of Thermal Management – Aluminum Nitride Ceramic Components

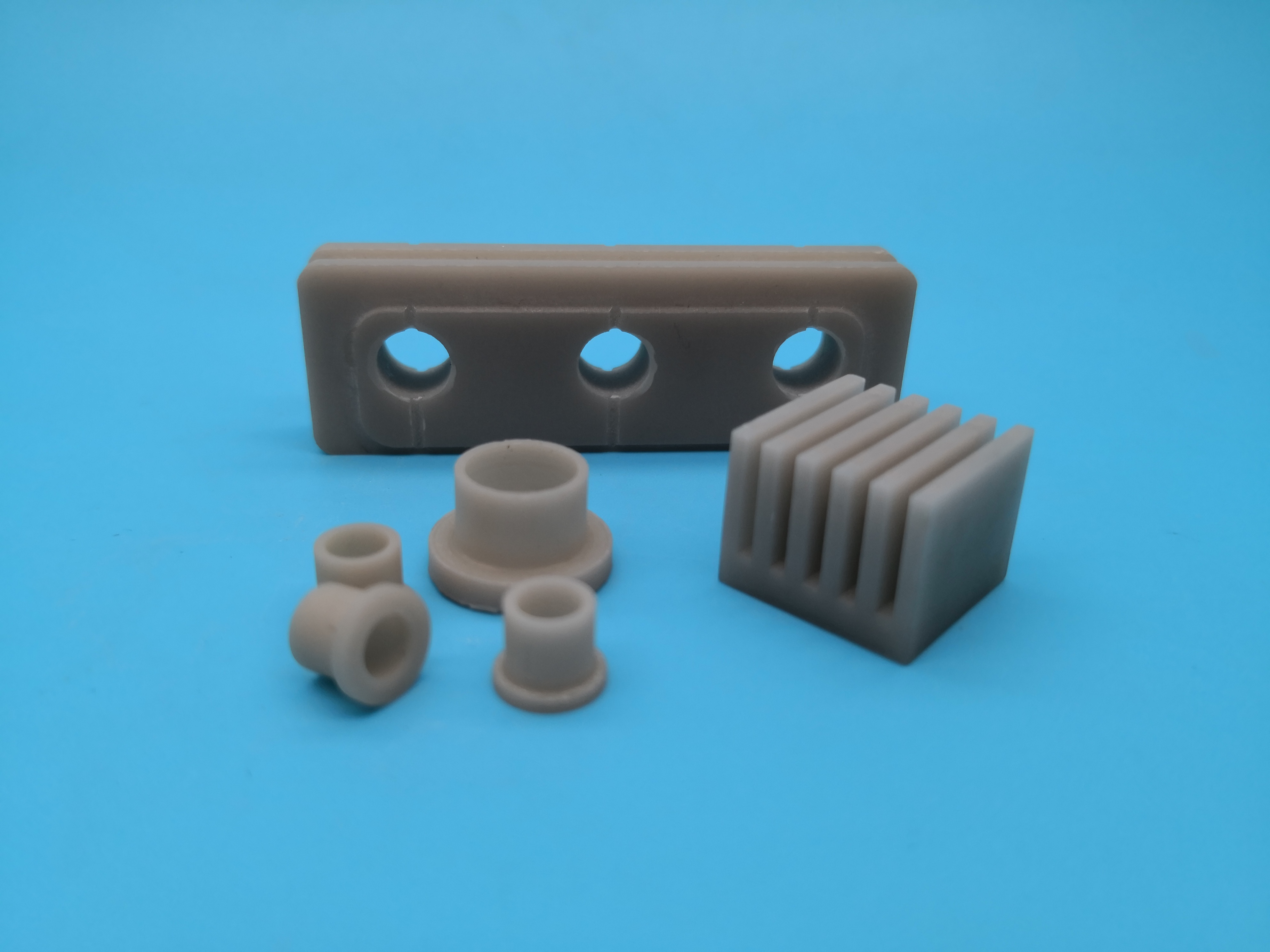

Aluminum Nitride Ceramic (AlN) is an ideal material widely used in situations that demand both high thermal conductivity and electrical insulation. This unique ability makes AIN ideal for managing rapid heating and removal of heat from other components and systems, such as in heat sinks, heat exchanger and spreaders.

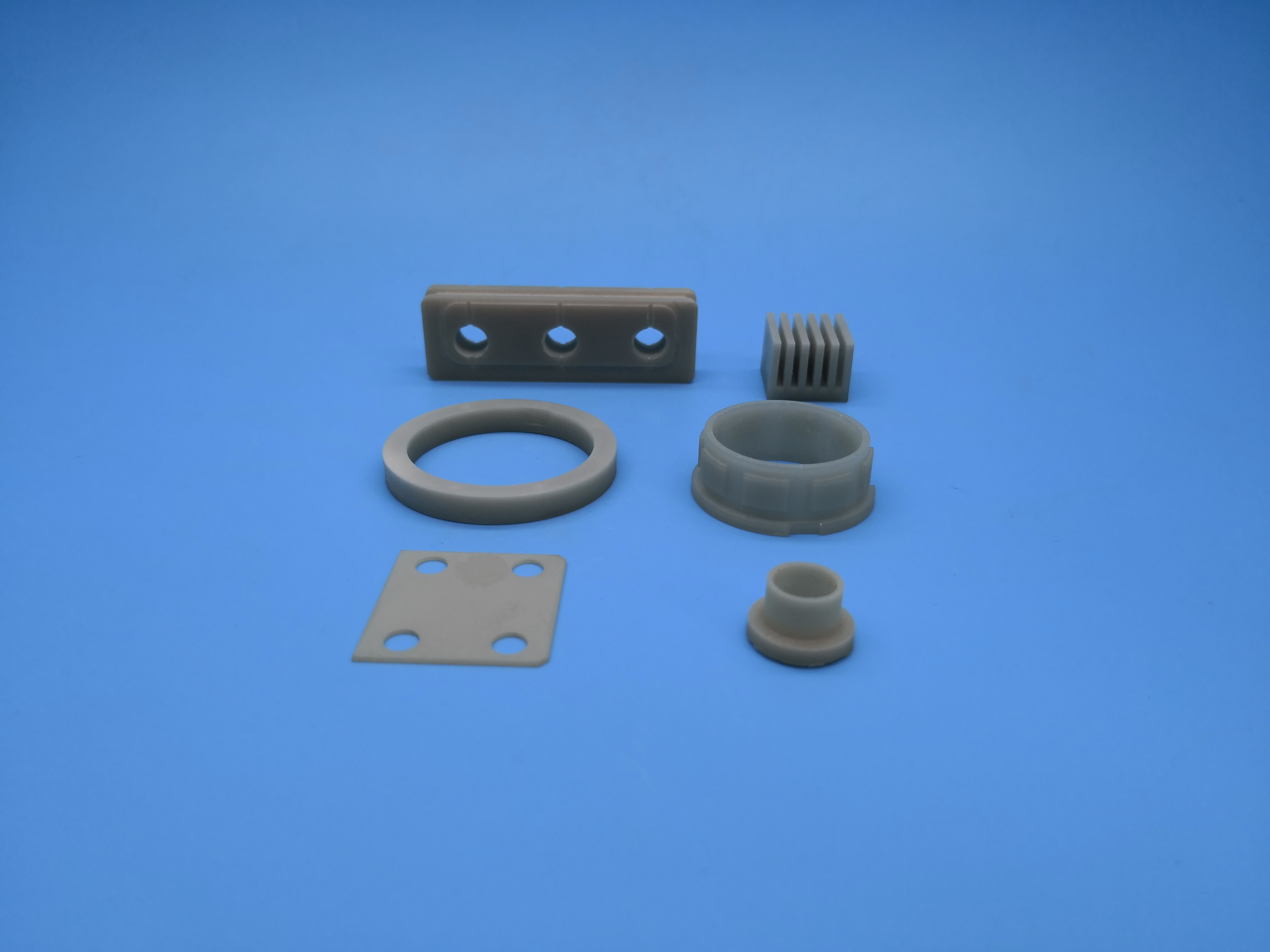

High-Thermal-Conductivity-Aluminum-Nitride-Ceramic-Components

In addition, its low coefficient of thermal expansion, which is similar to silicon material, means AIN is a trusted substance for use in semiconductor products. The material remains highly stable through a wide range of temperatures.

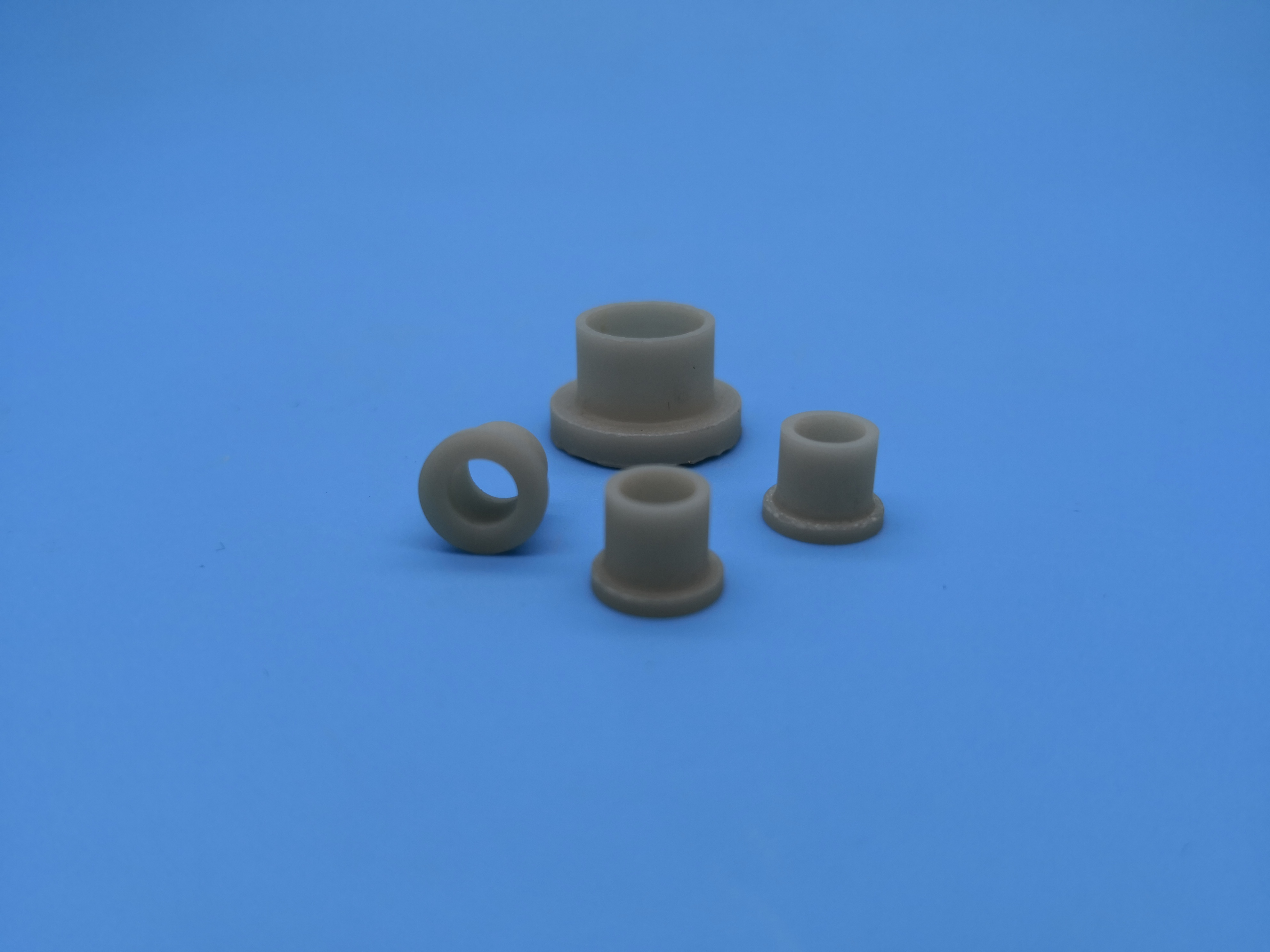

Aluminum-Nitride-Ceramic-Insulator-Tube

Properties	Units	Value
Color		Grey
Mechanical Properties
Density	g/cm3	3.26
Modulus of Elasticity	GPa	310
Fracture toughness	Mpa x m^1/2	3.5
Poissons Ratio		0.25
Compressive Strength	MPa	2100
Flexural Strength	MPa	335
Hardness (Knoop 100 g)	Kg/mm2	1170
Hardness (Vickers)	GPa	11
Thermal Properties
Maximum Temperature *
Oxidizing	°C	700
Inert	°C	1300
Thermal Conductivity
@ 25°C	W/mK	180
@ 300°C	W/mK	130
Specific Heat	J/kg.K	750
Thermal Shock Resistance ΔT	°C	400
Coefficient of Expansion
CTE 25°C ➞ 100°C	10^-6/°C	3.6
CTE 25°C ➞ 300°C	10^-6/°C	4.6
CTE 25°C ➞ 500°C	10^-6/°C	5.2
CTE 25°C ➞ 1000°C	10^-6/°C	5.6
Electrical Properties
Dielectric Constant	1 MHz	8.6
Loss Tangent	1 MHz	5×10^-4
Dielectric Strength	kV/mm	>15
Volume Resistivity
25°C	Ω cm	>10^13
300°C	Ω cm	10^9
500°C	Ω cm	10^7

Aluminum Nitride Ceramics exhibit exceptional characteristics, making them useful in various applications.

High thermal conductivity combined with good electrical insulation characteristics.
Exceptional stability when exposed to many molten salts.
Thermal stability up to at least 1500°C
Favorable mechanical characteristics extending into the high temperature range.
Low thermal expansion and resistance to thermal shock.
Special optical and acoustic characteristics.
