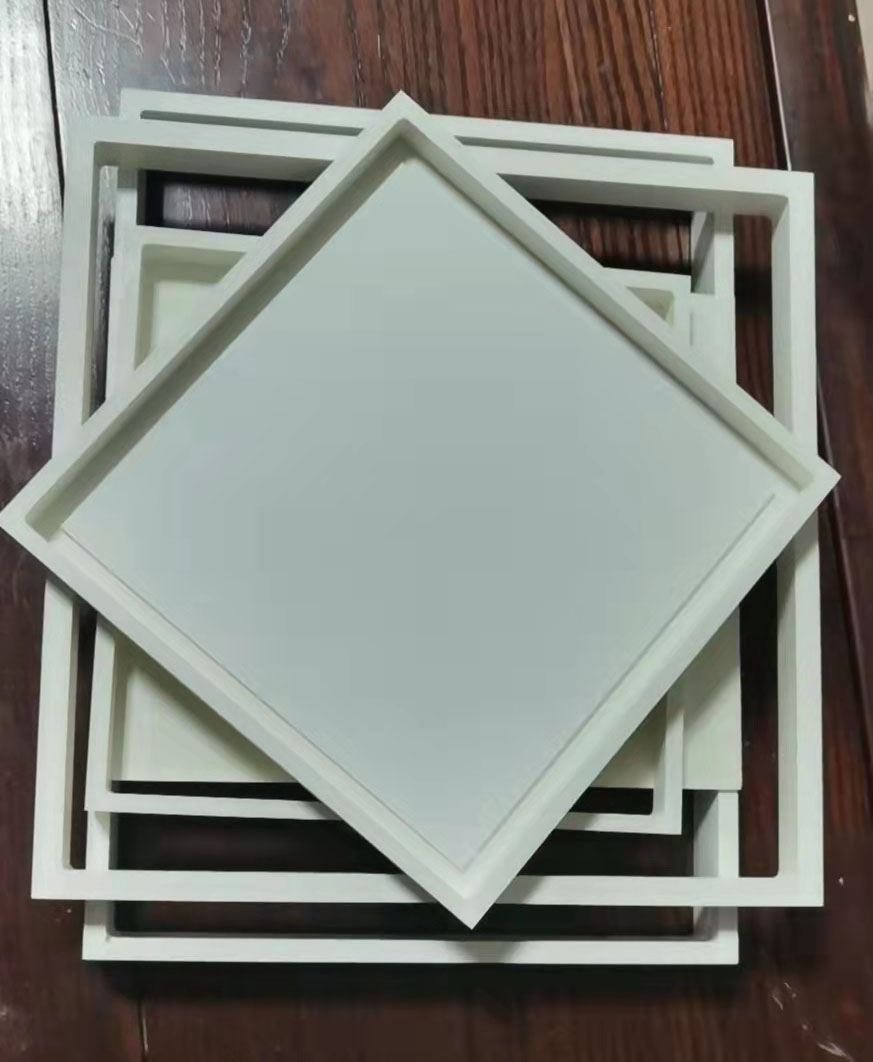

Ceramic Boron Nitride Setters For Sintering Nitride Ceramics

BN setters

Due to Boron Nitride’s high purity, non-adhesive and long working life, it’s a good choice used for sintering Aluminum Nitride and Silicon Nitride substrates. And it won’t make pollution for the sintering process.

Hexagonal Boron Nitride has a low expansion coefficient and high thermal conductivity, so it has excellent thermal shock resistance, and it will not be damaged even after hundreds of times of cycle use at 2000°C. The expansion coefficient of BN is equivalent to that of quartz, but the thermal conductivity is 10 times that of quartz.

Features of Boron Nitride:

  • High purity with 99.7%
  • Quality stable in mass production
  • No deformation in high temperature
  • Max working temperature is over 2100°C
  • Resist high heat shock

All the features make Boron Nitride a very good material for the sintering field. Our Boron Nitride is an alternative for Denka NB-1000.

The advantages for choosing us:

  • Competitive price
  • Short delivery time (20-35 days)
  • Stable quality
  • Do adjustments very quickly due to customers’ feedback on quality.
  • The max dimension we can make: 500×500 mm
