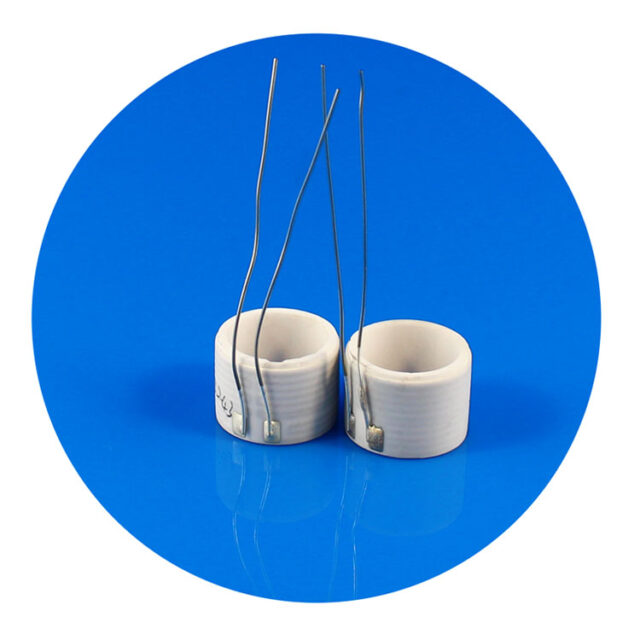

Innovacera developed ceramic heating element used for vaporizer.
The most common heating elements in a vape are made from metal, glass and ceramic. What are their differences? Which is better to be used for vaporizer?
Metal heating elements conduct heat quickly, so they heat fast and adapt well to temperature changes. However, some metal heating elements can infuse vapor with metal particles. Inhaling these particles can damage the lungs and may be dangerous. So metal heating elements is not a good choice for vaporizer.
Glass is not a favored option. As glass is too delicate for an entire portable vaporizer. It’s also far more expensive than ceramic, and without any additional benefits.
Ceramic heating elements are considered the highest quality for vaporizers. First, ceramic is considered the safest heating method for vaporizers since they do not carry metal particles into the vapor. Our ceramic heater material is with Rohs and Reach certification.
The Advantages of ceramic heater:
1. Small size;
2. Fast heating rate;
3. More uniform thermal performance, and thermal efficiency;
4. To integrate with thermistor, so as to achieve the purpose of accurate temperature control;
5. Safety
MCH heater technology:
| Design | Diameter/Length/Width | Tolerance | Thickness |
| Tube/Rod | D:2.5~12 | D: Above 8mm±0.3mm | |
| Below8mm±0.2mm | |||
| LAbove80±2.0mm | |||
| Below80mm±1.0mm | |||
| Plate:Square | L:10~100 | Above:70±2mm | 0.5~2 |
| Below:70±1mm | |||
| Plate:Round | D:10~70 | Above:30±2mm | 0.5~2 |
| Below:30±1mm |

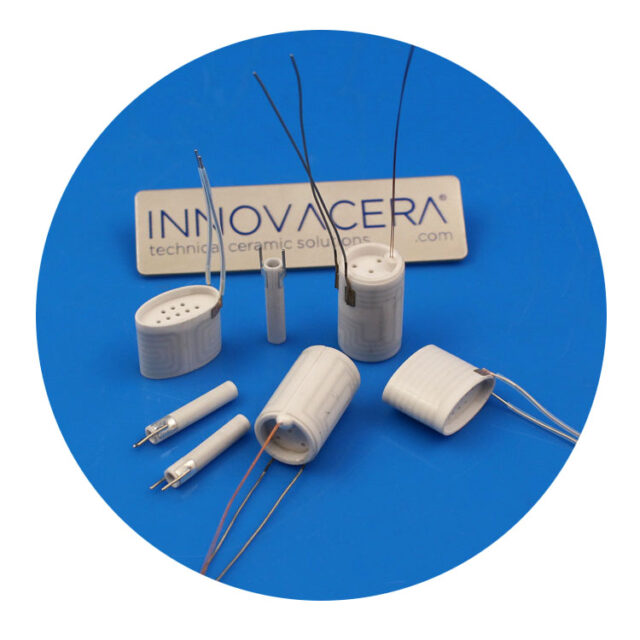

Regular size and specification:
| NO | Model | Size | Resistance | Voltage | Shape | Material |
| 1 | E0863TB | OD6.3*ID5.2*8mm | 0.25-0.4Ω | 3.7V | Tube | 95%Alumina |
| 2 | E1416TA | OD16*ID14.4*14mm | 0.45-0.65Ω | 3.7V | Tube | 95%Alumina |
| 3 | E13295TA | D2.95*13mm | 0.25-0.4Ω | 5V | Rod | 95%Alumina |
| 4 | E13596TA | OD9.6*ID8*13.5mm | 0.45-0.6Ω | 3.7V | Tube | 95%Alumina |
| 5 | E112015TA | OD19.85*ID13.3*11mm | 0.4-0.6Ω | 3.7V | Tube | 95%Alumina |
| 6 | E131684FA | OD16*ID7*13.8mm | 0.4-0.6Ω | 3.7V | Tube | 95%Alumina |
| 7 | E141895TA | OD17.6*ID16.6*14mm | 0.5Ω | 3.7V | Tube | 95%Alumina |
| 8 | P1100TB | D11*0.8mm | 0.5-0.7Ω | 3.7V | Plate | 95%Alumina |
Declaration: This is an original article of INNOVACERA®. Please indicate the source link when reprinting: https://www.innovacera.com/news/ceramic-heater-used-for-vaporizer.html.
