Innovacera developed ceramic heater used in FFF 3D pinter to replace the metal heaters, which speed up the heating time and improve the printing accuracy and speed.
The Advantages of ceramic heater:
1. Small size;
2. Fast heating rate;
3. More uniform thermal performance, and thermal efficiency;
4. To integrate with thermistor, so as to achieve the purpose of accurate temperature control;
5. To improve the printing accuracy and speed;
MCH heater technology:
| Design | Diameter/Length/Width | Tolerance | Thickness |
| Tube/Rod | D:2.5~12 | D: Above 8mm±0.3mm | |
| Below8mm±0.2mm | |||
| L:10~120 | LAbove80±2.0mm | ||
| Below80mm±1.0mm | |||
| Plate:Square | L:10~100 | Above:70±2mm | 0.5~2 |
| W:5-50 | Below:70±1mm | ||
| Plate:Round | D:10~70 | Above:30±2mm | 0.5~2 |
| Below:30±1mm |

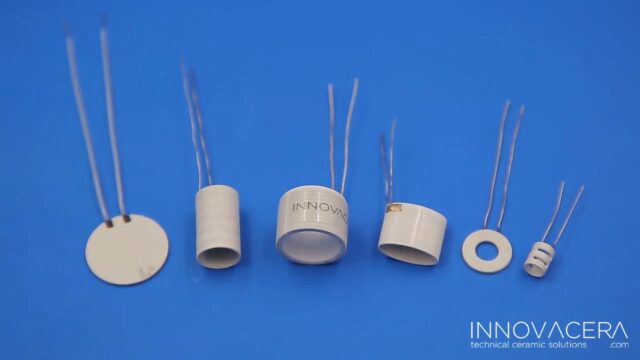

Regular size and specification:
| NO | Model | Size | Resistance | Voltage | Shape | Material |
| 1 | E0863TB | OD6.3*ID5.2*8mm | 0.25-0.4Ω | 3.7V | Tube | 95%Alumina |
| 2 | E1416TA | OD16*ID14.4*14mm | 0.45-0.65Ω | 3.7V | Tube | 95%Alumina |
| 3 | E13295TA | D2.95*13mm | 0.25-0.4Ω | 5V | Rod | 95%Alumina |
| 4 | E13596TA | OD9.6*ID8*13.5mm | 0.45-0.6Ω | 3.7V | Tube | 95%Alumina |
| 5 | E112015TA | OD19.85*ID13.3*11mm | 0.4-0.6Ω | 3.7V | Tube | 95%Alumina |
| 6 | E131684FA | OD16*ID7*13.8mm | 0.4-0.6Ω | 3.7V | Tube | 95%Alumina |
| 7 | E141895TA | OD17.6*ID16.6*14mm | 0.5Ω | 3.7V | Tube | 95%Alumina |
| 8 | P1100TB | D11*0.8mm | 0.5-0.7Ω | 3.7V | Plate | 95%Alumina |
