Metallization ceramic cylinders are a crucial component of vacuum interrupters (often referred to as VI) used in the fabrication of vacuum circuit breakers (VCB). VCBs find application in medium-voltage switchgear and distribution circuits, where they play a pivotal role in regulating distribution voltage by suppressing voltage surges.
Innovacera is a lead supplier of high purity alumina metallized ceramic cylinders. These metalized cylinders are used in vacuum arc extinguishing chambers worldwide due to their excellent electrical insulation properties
Innovacera specializes in the metallization of molybdenum-manganese (Mo-Mn) and nickel plating, providing excellent hermetic sealing for these metallzed ceramic cylinders, essential components in vacuum interrupters.
The hermetic sealing ensures the maintenance of the required vacuum level for efficient arc extinguishing within the interrupter chamber. Moreover, the high mechanical strength of Mo-Mn metallization prolongs the service life of vacuum interrupters, contributing to their reliability and durability. By offering advanced solutions in metallization techniques, Innovacera continues to play a crucial role in enhancing the performance and longevity of critical electrical infrastructure components.
Metallized ceramic cylinders provide fabrication properties and can then be easily brazed with common brazing alloys for a variety of applications.
| Characteristics | Description |
| Shapes | Cylindrical, Corrugated, Stepped, Grooved |
| Sizes | 1.0″ to 7.0″ |
| Material and Color | Aluminum Oxide, White |
| Features | Excellent Electrical Insulation |
| Excellent Hermetic Sealing | |
| High Mechanical Strength of Metal-Clad Layers |
| Application | Description |
| Vacuum interrupters in vacuum circuit breakers | Used to maintain efficient operation and ensure safety in vacuum circuit breakers |
| Load break switches | Provide reliable breaking and safety |
| Relays | Automatic switches in electrical control systems |
| Automatic reclosers | Used for automated reclosing operations |

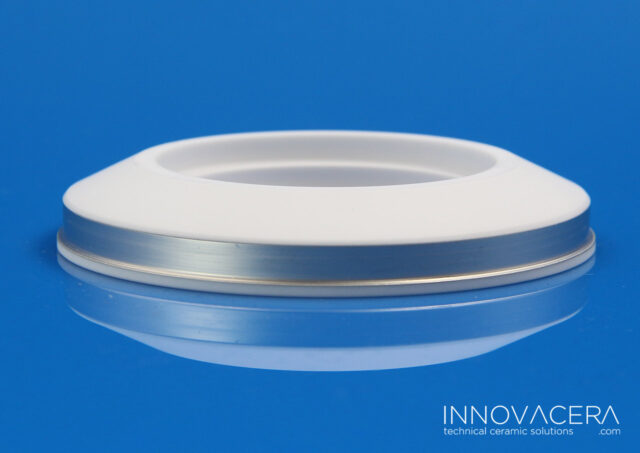

| Isolators | Provide additional safety isolation in circuits |
| Mining circuit breakers | Suitable for circuit breakers in mining environments |
| Capacitors | Capacitor circuit breakers in power systems |
| Generator circuit breakers |
Protect generators and prevent circuit overload |
| Vacuum tubes | Used to protect circuits from overcurrents |
| Fuses | Provide short-circuit and overload protection |
| Switchgear | Various types of switching devices for controlling power flow |
| Benefit | |
| High Purity Aluminum Oxide | Capability for Internal Electrode Brazing |
| Efficient Arc Extinguishing in Interrupter Chambers | Specialized Production Lines |
| Extended Lifespan | Outstanding Collaborative Partner |
| Customized Solutions | |
Innovacera’s team of technical experts is here to help you meet your metalllized ceramic requirements. We offer comprehensive solutions – from prototype design and manufacturing to large-scale production.
