What Is A Lambda Sensor

Very Quick Guide to Lambda Sensors

A lambda sensor is an electronic device that fits into a car exhaust system. It is sometimes called an Oxygen sensor, O2 sensor, or AFR. Its purpose is to send a signal to the ECU (engine control unit) to indicate how much oxygen is in the exhaust gases. This indicates how efficiently the engine is running. The ECU uses this information to adjust the engine’s fuelling as you drive.

Lambda sensors can also be used for industrial applications, such as electricity generating stations and biomass boilers, and for general O2 measurement for industrial processes, eg. welding, steel rolling mills, drying ovens, and furnace.

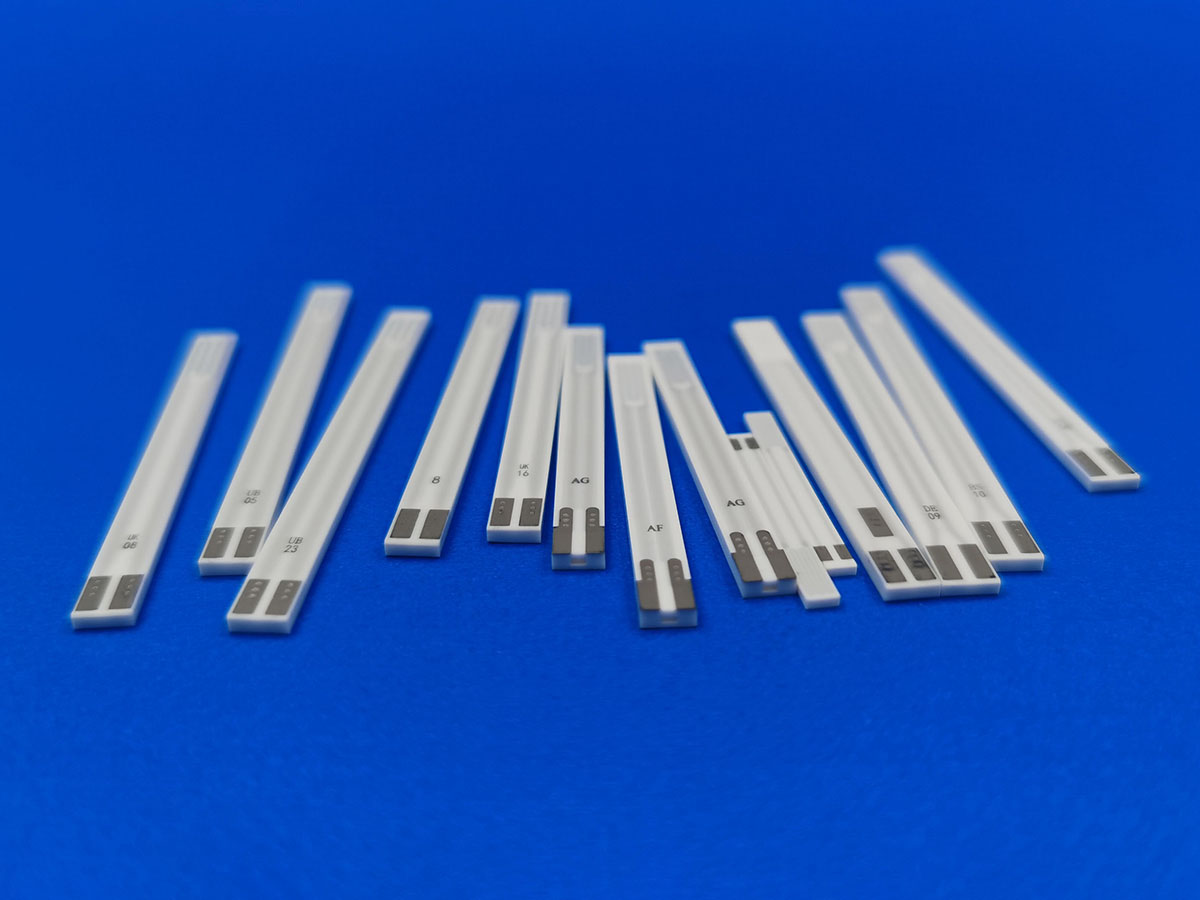

What Is A Lambda Sensor-Planar-Oxygen-Sensor-Element

What Is A Lambda Sensor-Planar-Oxygen-Sensor-Element



What happens if it fails?

MOT emissions failure, excessive fuel consumption, catalyst failure, poor performance, engine check warning light, and fault codes are all symptoms that can be associated with Lambda sensor failure. The Lambda sensor’s efficiency deteriorates over a period of time.

Maintenance

No maintenance of the Lambda sensor is required and there are no serviceable parts. Similar to a spark plug, when it’s worn out it should be replaced.

Where is it?

Mounted on the engine exhaust manifold or exhaust pipe, or under the vehicle for the rear sensor. Modern engines with a close-coupled catalyst have the sensor inside the engine compartment. A close coupled catalyst places the catalyzer very close to the engine to shorten the warm-up time.

Cars made after the year 2000 have at least two sensors, front and rear, and are termed OBDII compliant. Multiple sensors enable the ECU to better judge the efficiency of individual cylinders.

How can I replace it?

Firstly consult our fitting guide – it’s roughly the same as fitting spark plugs. Or get your garage to do it. Some garages will not fit ‘universal’ type sensors, please check with them first before buying one. Direct-fit sensors are more expensive but are preferable to the universal types.

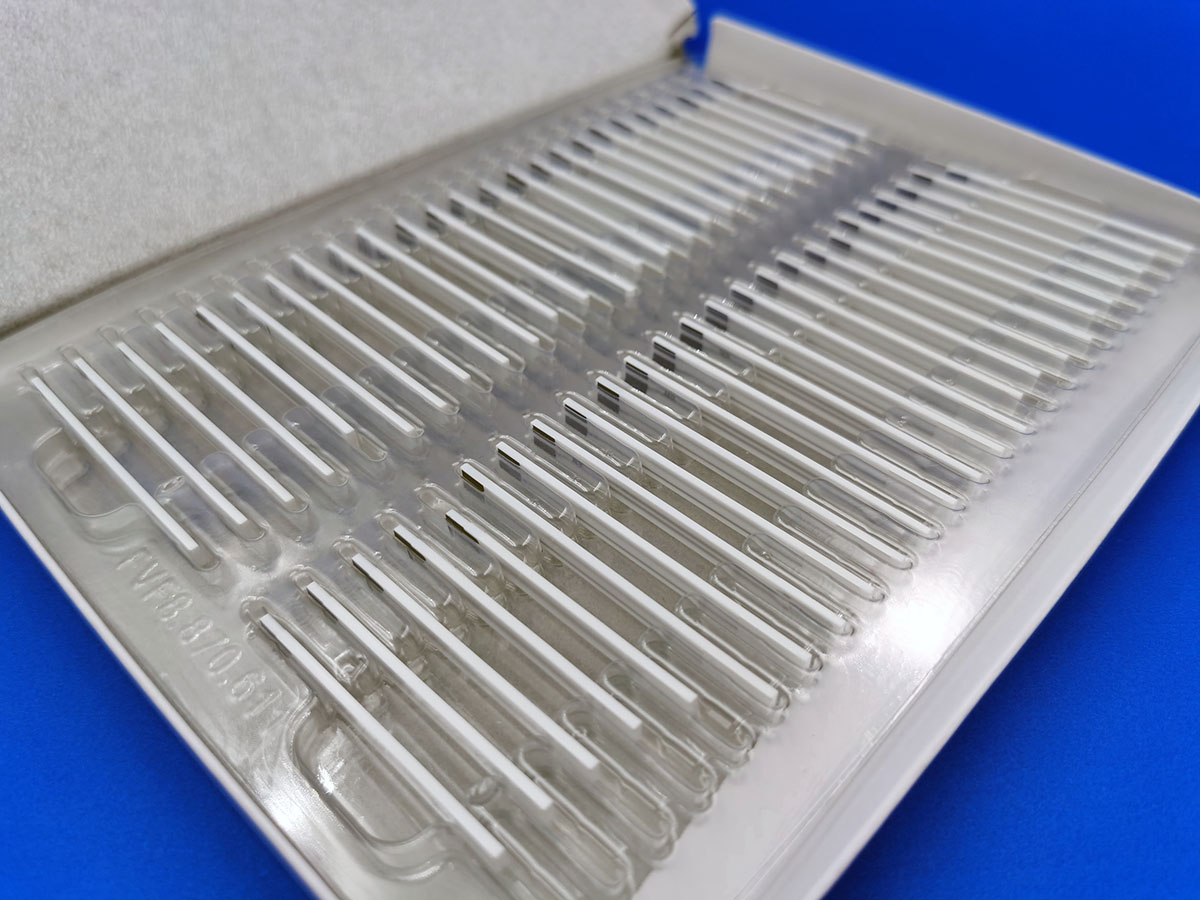

Lambda Sensor Planar Oxygen Sensor Element

Lambda Sensor Planar Oxygen Sensor Element
