This type of igniter is mainly used in pellet stoves,pellet boilers,biomass burners,wood-chip combustion equipment,and other solid-fuel ignition systems.The alumina ceramic heating element offers rapid heat-up,electrical insulation,high-temperature resistance,oxidation resistance,and corrosion resistance.Once energized,it quickly generates high-temperature heat to support stable and reliable fuel ignition.
Features
Compact 78 mm Ceramic Heating Tube
Detachable Holder Design
120 V and 230 V Options
Fast 60–90 Second Ignition
800–1100°C Operating Temperature
Flexible Lead-Wire Configuration
Resistance to Oxidation and Corrosion
Applications
Wood Pellet Stoves
Pellet Boilers
Wood Chip Stoves and Boilers
Biomass Burners
Small Biomass Industrial Furnaces
Kerosene Fan Heaters
Incense Burners
| Model | Voltage / Power | Size | Resistance | Ceramic Socket | Socket Type | Wire |
|---|---|---|---|---|---|---|
| INC-H5-1 | 230V / 150W | 78×10.5×6.5mm | 123-195Ω | OD6.5*35 | Detachable Holder | 300-500mm |
| INC-H5-2 | 230V / 170W | 78×10.5×6.5mm | 102-176Ω | OD6.5*35 | Detachable Holder | 300-500mm |
| INC-H5-3 | 230V / 200W | 78×10.5×6.5mm | 84-133Ω | OD6.5*35 | Detachable Holder | 300-500mm |
| INC-H5-4 | 230V / 230W | 78×10.5×6.5mm | 72-116Ω | OD6.5*35 | Detachable Holder | 300-500mm |
PS: Standard models are available in 230 V configurations, while 120 V versions can be customized
Looking for a Compact Ceramic Igniter for Your Pellet or Biomass System?
Send us your voltage,power,installation dimensions,holder configuration,lead-wire length and ignition requirements.INNOVACERA can provide standard or customized 78 mm alumina ceramic igniters with detachable holders for pellet stoves,boilers and biomass combustion equipment.
Declaration: This is an original article of INNOVACERA®. Please indicate the source link when reprinting: https://www.innovacera.com/product/alumina-ceramic-igniter-with-detachable-holder-for-pellet-stoves
Frequently Asked Questions
Why Choose an Igniter with a Detachable Holder? How Does It Simplify Pellet Stove Maintenance?

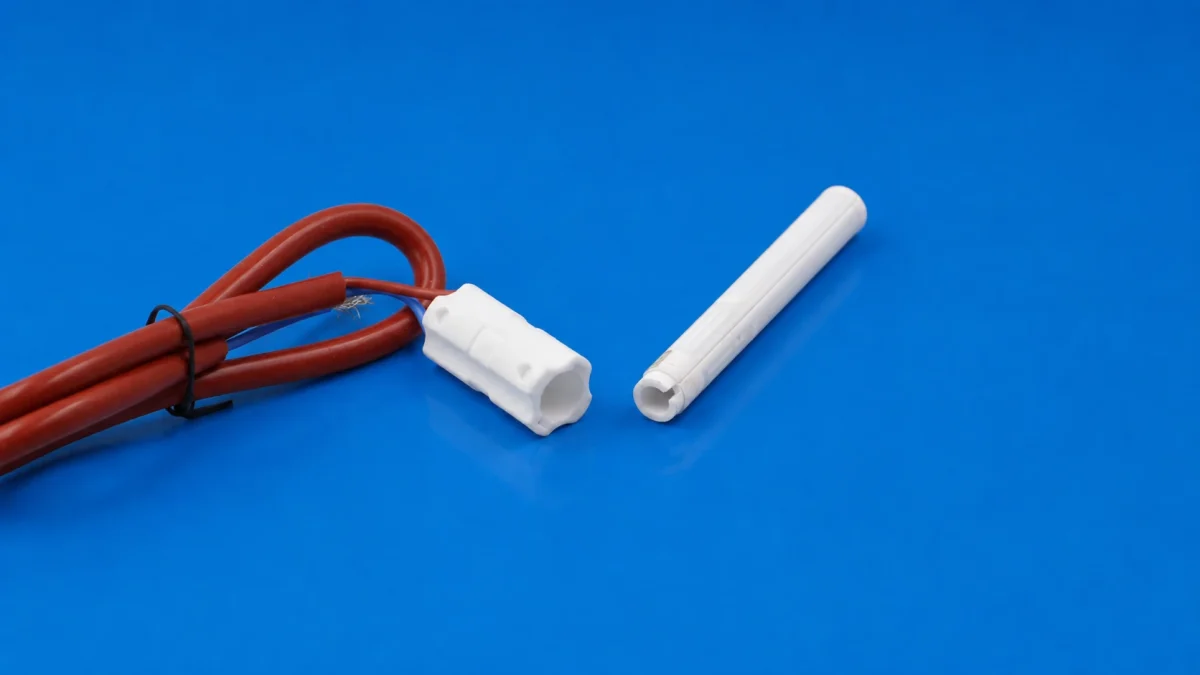

Traditional ceramic igniters with permanently welded flanges require complete burner teardown and rewiring during servicing. INNOVACERA’s detachable holder configuration separates the compact OD10.5 x 78 mm alumina heating element from the ceramic mounting base. This modular design enables fast, tool-free field replacement, lowers equipment servicing costs, and gives stove manufacturers flexible mounting integration across diverse biomass combustion chamber designs.
Need Rapid Ignition for Solid Fuel Equipment? Where Can You Buy 120V and 230V Ceramic Igniters?
You can buy standard 230V models (150W to 230W) and custom 120V versions directly from INNOVACERA. Reaching 800–1100°C within 60 to 90 seconds, these alumina ceramic igniters provide immediate, dependable combustion for wood pellets, biomass chips, and split logs. We supply flexible lead wire lengths (300–500 mm), varied resistance ranges, and tailored mounting holder brackets for OEM stove and boiler brands.
