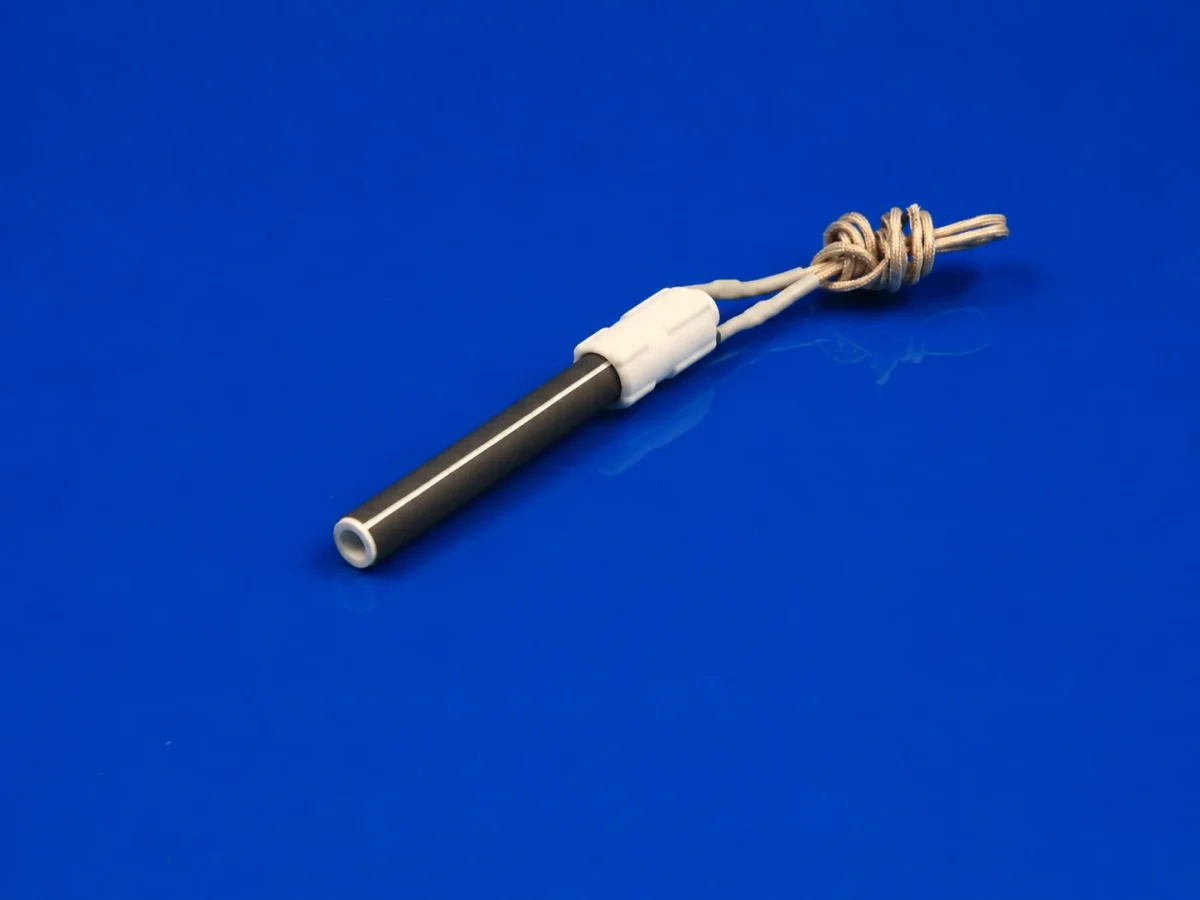

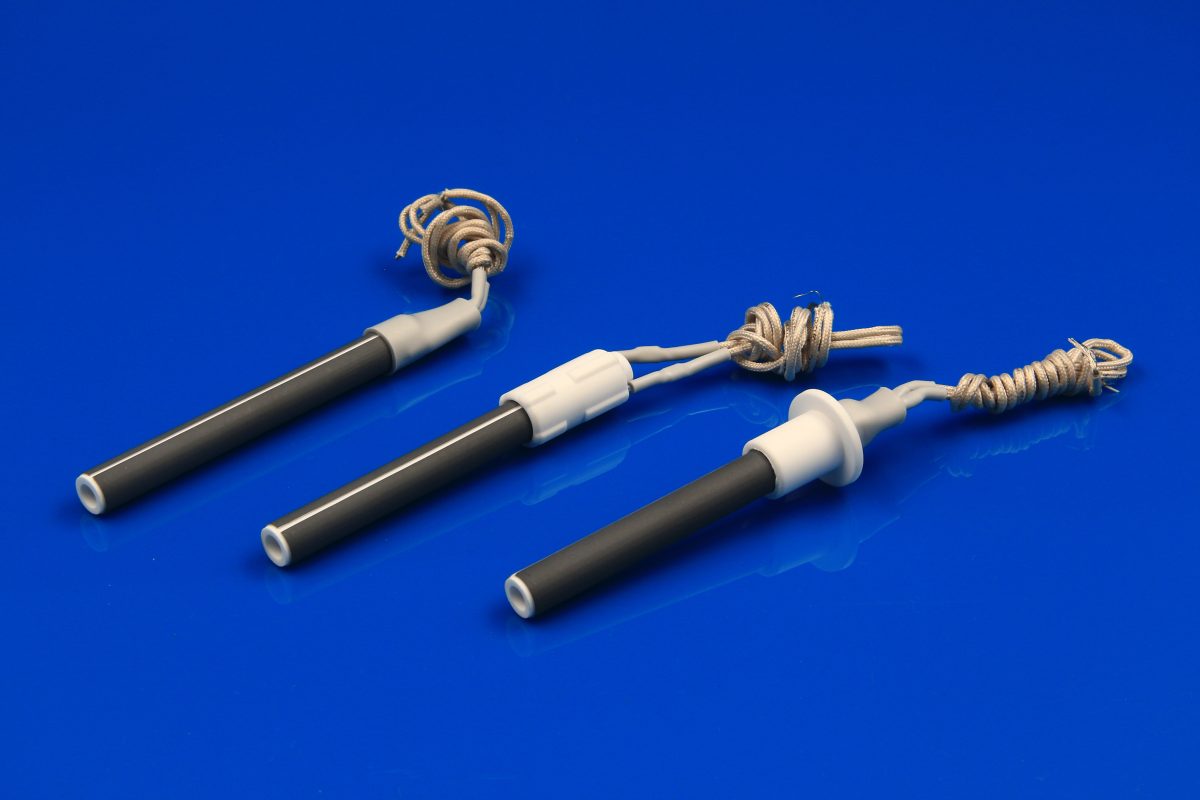

This black-coated version uses a 106 × 11.5 mm alumina ceramic heating tube and is available with multiple mounting configurations, including ceramic bases, heat-shrink connection structures, and G3/8 threaded fittings. The standard 230 V model provides approximately 270–315 W of power, making it suitable for both new equipment designs and integration into existing pellet stove and burner systems with different installation requirements.
Features:
1.Black-Coated Alumina Heating Tube
2.Rated Power: 300 W, with a specified power tolerance of +5%/−10%
3.60-90 seconds ignition time
4.Standard 220–240V operation; 120V versions available upon request
5.RoHS/REACH/CE compliance for hazardous substance requirements
6.Multiple Mounting Configurations Available
7.Good Resistance to Oxidation and Corrosion
8.Ignite wood pellet, wood chips, split logs, straw and other biomass
Applications
Wood Pellet Stoves
Pellet Boilers
Pellet Burners
Pellet Grills / BBQ Systems
Wood Chip Burners
Biomass Boilers
Straw Burners
Other Solid-Fuel Ignition Systems
| Model | Specifications | Heater Dimension | Flange | Cable | Remark |
|---|---|---|---|---|---|
| INH-1-230 | 230V / 270W–315W | 106 × 11.5 mm | 26.6 mm Ceramic Base + Silicone Heat-Shrinkable Tube | 50/40 cm length; line type can be customized | - |
| INH-2-230 | 230V / 270W–315W | 106 × 11.5 mm | 17.7 mm Ceramic Base | 50/40 cm length; line type can be customized | - |
| INH-3-230 | 230V / 270W–315W | 106 × 11.5 mm | Silicone Heat-Shrinkable Tube | 50/40 cm length; line type can be customized | - |
| INH-4-230 | 230V / 270W–315W | 106 × 11.5 mm | G3/8 Nut | 50/40 cm length; line type can be customized | - |
Looking for a Ceramic Igniter for Your Pellet or Biomass System?
Send us your voltage, power, heater dimensions, mounting structure, airflow and fuel requirements. INNOVACERA can help select or customize a black coated alumina ceramic igniter for your pellet stove, boiler or biomass burner.
Declaration: This is an original article of INNOVACERA®. Please indicate the source link when reprinting: https://www.innovacera.com/product/black-alumina-ceramic-pellet-igniter
Frequently Asked Questions
Why Choose Black-Coated Alumina for Pellet Stoves? How Does It Improve Ignition Speed?
Black-coated alumina ceramic igniters achieve extremely fast 60–90 second ignition times with an optimal 270–315W rated power. The proprietary black radiation coating significantly boosts infrared heat transfer and radiation efficiency, while the alumina ceramic matrix withstands extreme thermal cycling and resists corrosive biomass flue gases and ash oxidation—vastly outlasting conventional metal igniters.
Need to Retrofit Different Biomass Burner Systems? Can You Custom Ceramic Igniter Mounting and Voltage?
Yes. Innovacera supports fully custom mechanical and electrical designs to match your stove or boiler architecture. Customers can tailor mounting fittings (such as G3/8 brass/stainless nuts, 17.7 mm or 26.6 mm ceramic collars, and silicone heat-shrink sleeves), specify operating voltages (standard 230V or 120V models), and customize lead wire lengths to fit diverse wood pellet, wood chip, or straw burner setups.
