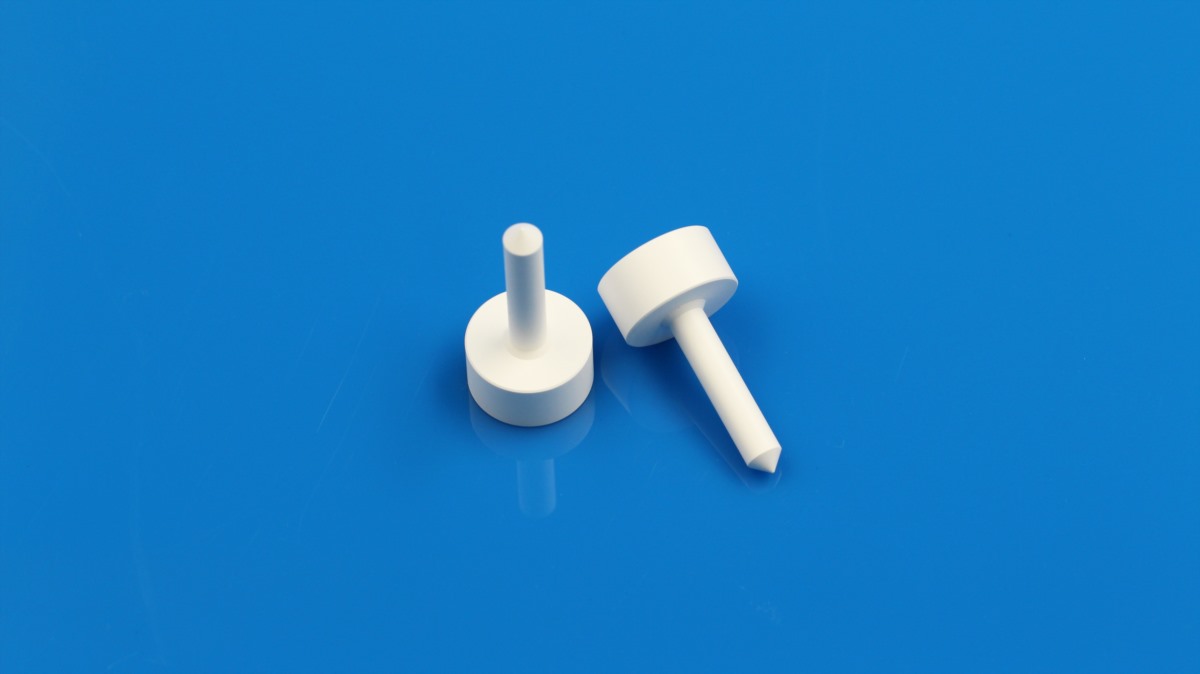

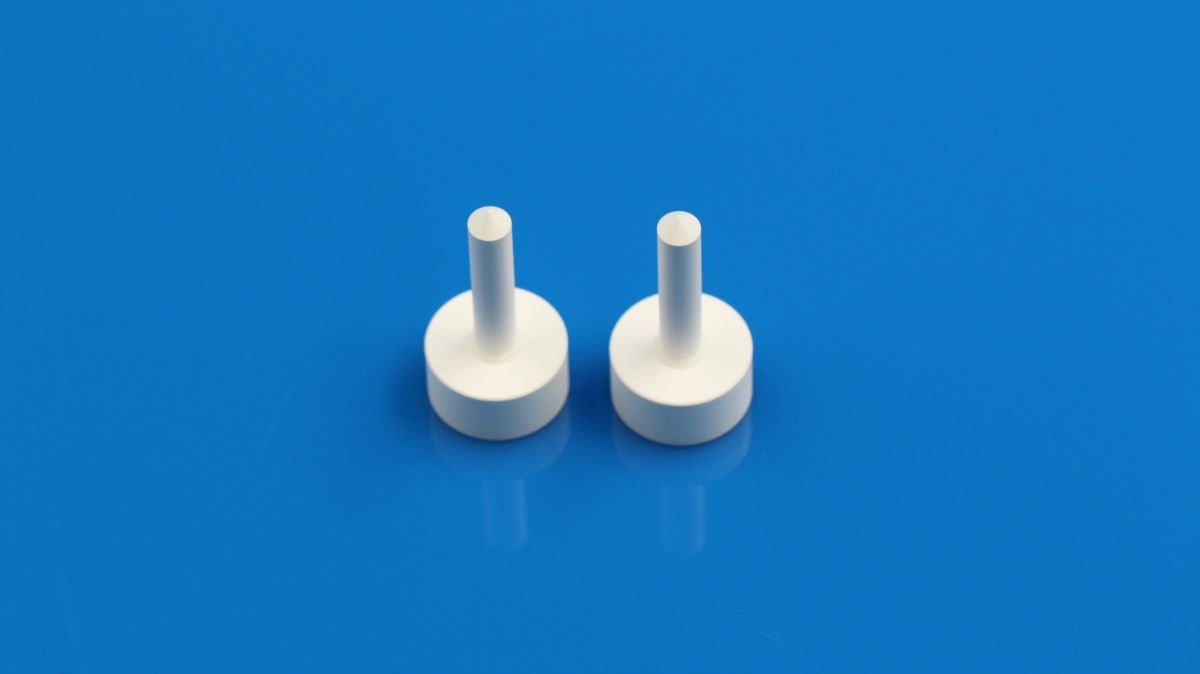

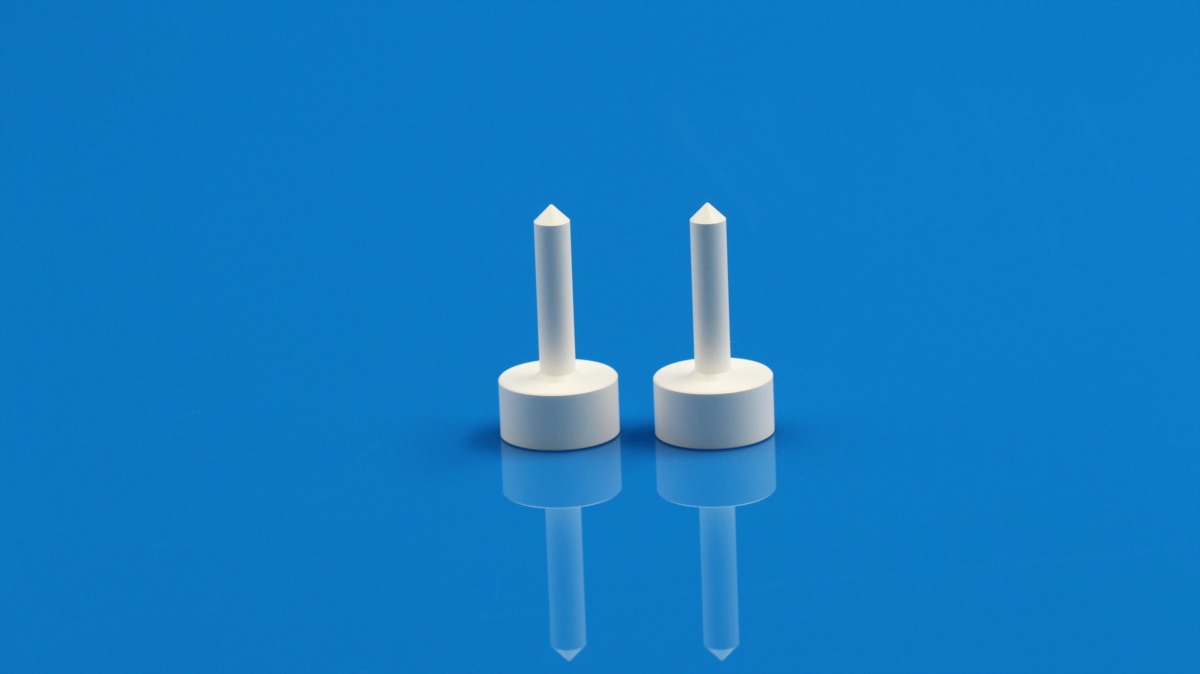

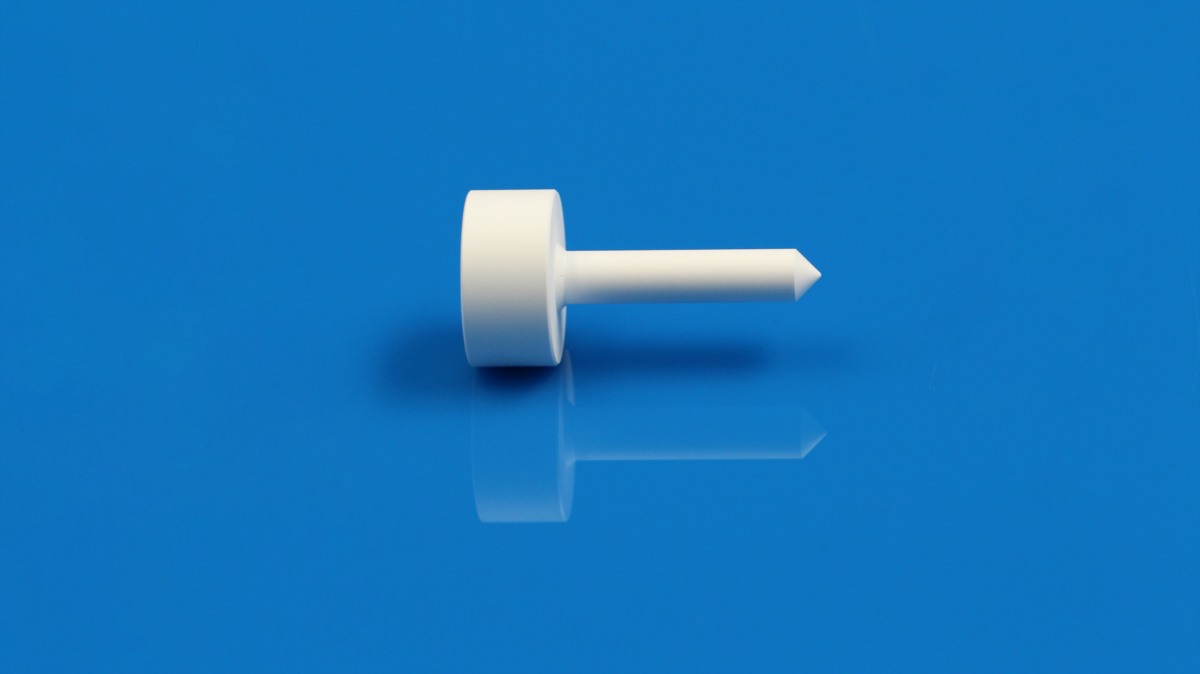

Featuring a white cylindrical structure similar in shape to standard automotive locating pins, it is designed for precision positioning applications demanding high-temperature resistance, excellent thermal shock resistance, and reliable electrical insulation. Owing to its outstanding insulation properties, superior thermal shock resistance, and high temperature stability, it is widely used in semiconductors, electrical and electronic equipment for insulation and positioning, as well as in precision instrument and ceramic manufacturing industries. It provides reliable high-temperature and rapid thermal cycling-resistant positioning and support solutions for various equipment.
Advantages
– Excellent electrical insulation
– Superior thermal shock resistance
– Easy to machine
– Corrosion-resistant with strong chemical inertness
Applications
– Insulation and positioning pins in electronic and semiconductor equipment.
– Insulating support and positioning in high-temperature furnaces or precision assembly.
– Fixing and insulation for various high-power electronic components and ceramic assemblies.
99.7% Boron Nitride Material Properties
| Properties | Unit | UHB |
|---|---|---|
| Main Composition | – | BN > 99.7% |
| Color | – | White |
| Density | g/cm3 | 1.6 |
| Three-Point Bending Strength | MPa | 18 |
| Compressive Strength | MPa | 45 |
| Thermal Conductivity | W/(m·k) | 35 |
| Thermal Expansion Coefficient (20~1000°C) | 10-6/K | 1.5 |
| Max Using Temperature In Atmosphere In Inactive Gas In High Vacuum (Long Time) |
°C | 900 2100 1800 |
| Room Temperature Electric Resistivity | Ω·cm | >1014 |
| Typical Application | – | Nitrides Sintering |
| High Temperature Electrical Furnace Components | – | – |
| Metal Vaporize Crucible | ||
| The Container of Metal or Glass Melting | – | √ |
| The Casting Mould Components of The Precious Metal and Special Alloy. |
– | – |
| High Temperature Support Part | – | – |
| Nozzle and Transport Tube of The Melting Metal | – | – |
| Nitrides Sintering (Sagger and Setter Plate) | – | √ |
Customization & Contact
Innovacera also offers customization solutions to meet the needs of different applications. For more details of the boron nitride insulator pin, please contact us at: sales@innovacera.com.
