Typical Applications
- CO₂ laser power supplies
- Industrial laser systems
- Laser system repair and replacement
- High-current electrical feedthrough in laser equipment
Key Features
Rated current up to 100 A
Reliable electrical insulation using alumina ceramic
Copper conductor for low resistance and efficient current transfer
Compact flanged design for secure mounting
Suitable for continuous operation in laser systems
Technical Specifications
| Parameter | Specification |
| Rated Current | Up to 100 A |
| Ceramic Material | High-purity Alumina (Al₂O₃) |
| Conductor Material | Copper |
| Overall Height | 38 mm (excluding top terminal) |
| Flange Diameter | Ø 35 mm |
| Flange Thickness | 5 mm |
| Mounting Type | Flanged mounting |
| Insulation Function | Electrical insulation |
| Customization | Available upon request |
Functional Description

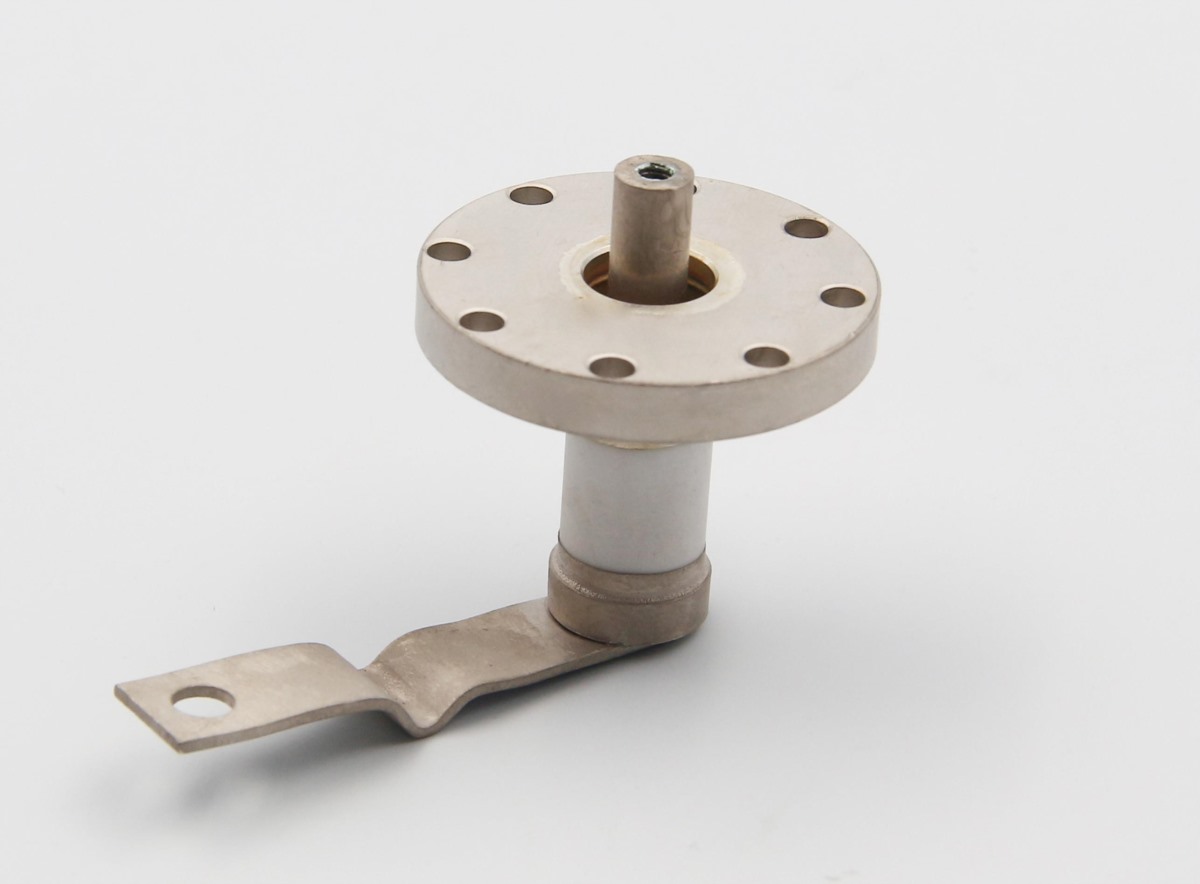

The alumina ceramic body provides stable electrical insulation,while the copper conductor ensures low electrical resistance and efficient high-current transmission.
The flanged structure enables secure installation into the laser power supply housing,helping maintain system stability and reducing the risk of overheating or electrical failure during laser operation.
Reliability & Manufacturing
Designed for industrial laser applications
Suitable for continuous high-current operation
Manufactured with controlled ceramic-to-metal joining process
Each unit can be supplied with dimensional and visual inspection
Customization Support
Customization is available for:
Flange dimensions
Conductor design
Current rating
Interface requirements
Please contact us with your application details.
We specialize in hermetic ceramic feedthrough for laser and vacuum systems,focusing on long-term reliability and stable electrical performance.
Declaration: This is an original article of INNOVACERA®. Please indicate the source link when reprinting: https://www.innovacera.com/product/hermetic-ceramic-feedthrough
Frequently Asked Questions
Why use high-current hermetic ceramic feedthroughs in CO₂ lasers? How do they prevent thermal breakdown and electrical arcing?
High-power CO₂ laser power supplies generate intense thermal and electrical stresses. Standard insulators often suffer dielectric degradation or overheating under continuous heavy loads. Our hermetic feedthrough utilizes high-purity alumina ceramic brazed to a heavy-duty copper conductor, safely carrying up to 100 A. The robust ceramic-to-metal hermetic joint ensures superior electrical insulation, minimal contact resistance, and excellent heat dissipation, eliminating the risk of internal flashover or power supply failure.
Looking for a custom ceramic feedthrough manufacturer? Can flange sizes and current capacities be tailored?
Yes. As an experienced technical ceramic-to-metal assembly manufacturer, INNOVACERA provides custom-engineered feedthrough solutions. We can tailor the flange diameter (standard Ø 35 mm), flange thickness, conductor layout, mounting profiles, and upgrade current ratings beyond 100 A to ensure seamless integration into your proprietary industrial laser power supplies or vacuum chambers.
