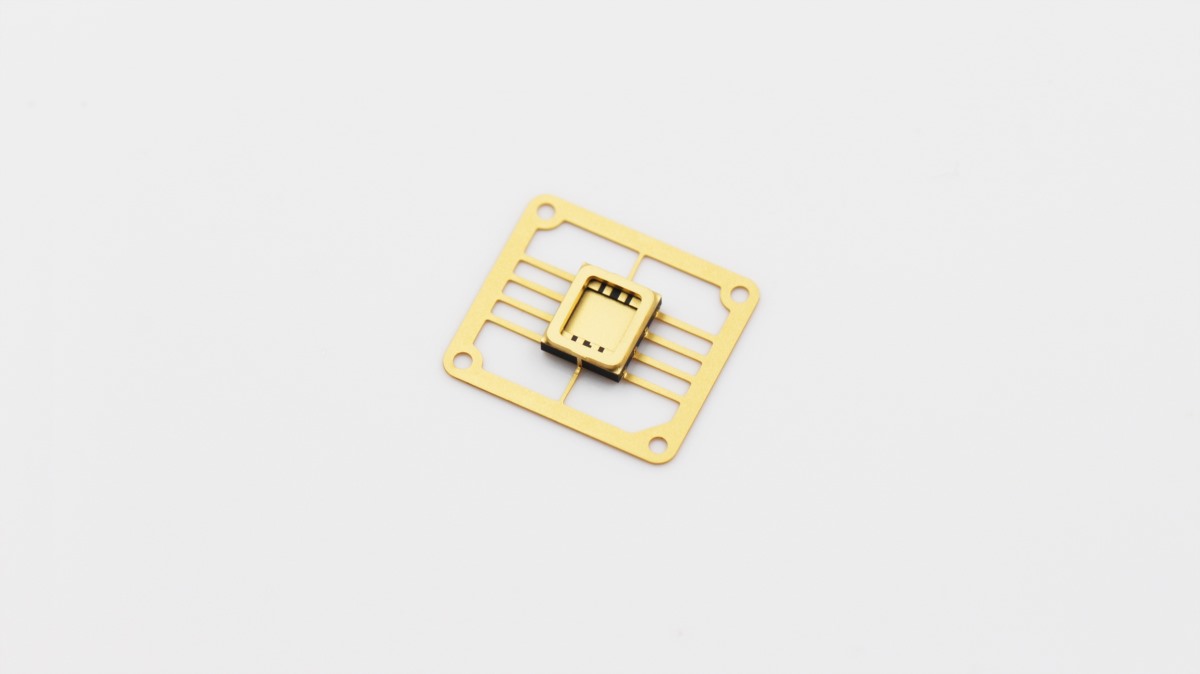

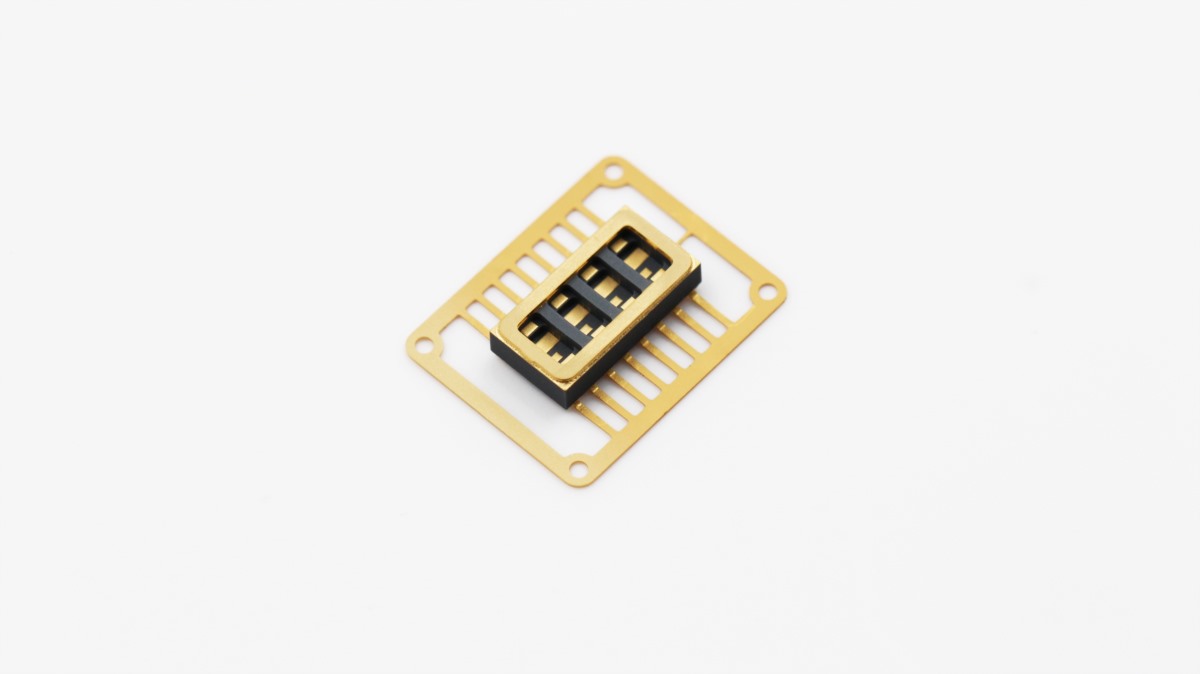

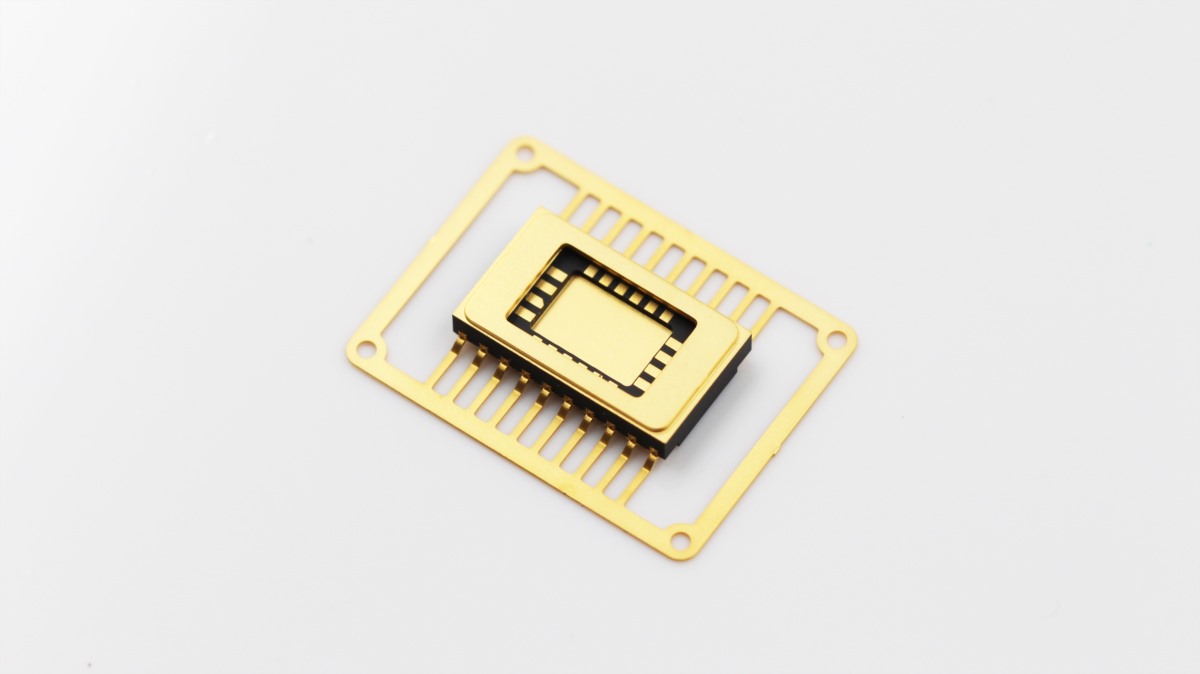

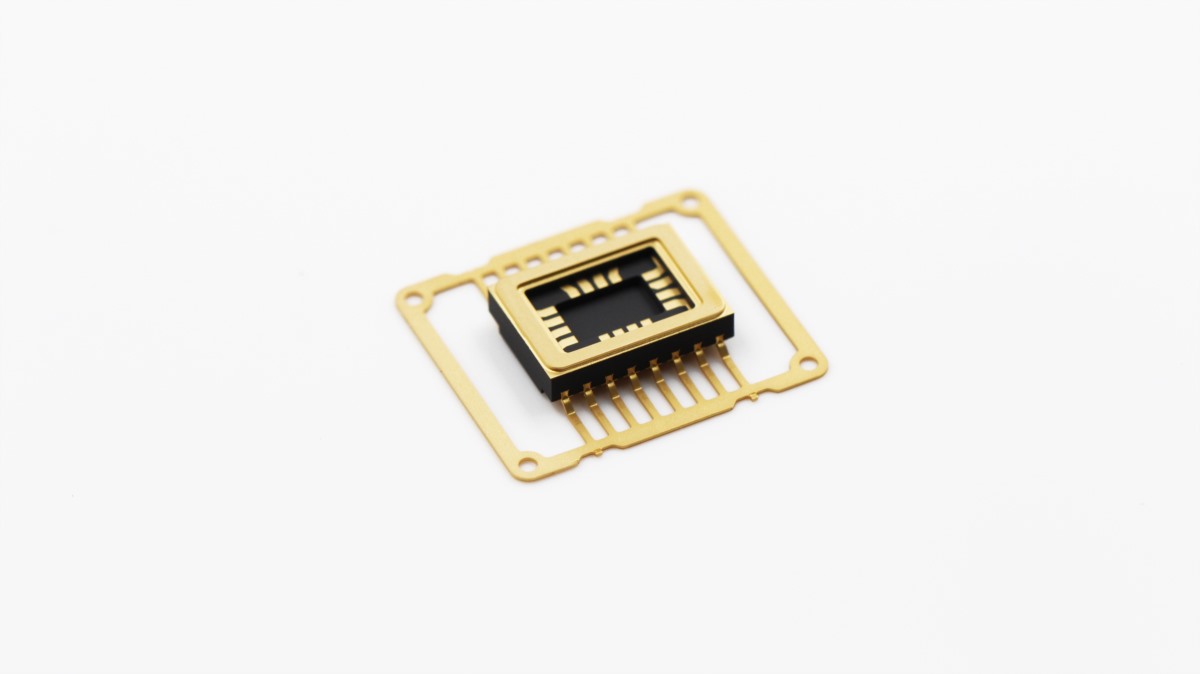

Compared with conventional plastic packages, ceramic small outline packages offer lower thermal expansion mismatch, enhanced hermeticity, and improved resistance to mechanical shock and vibration. Their compact outline and wing-shaped leads make them ideal for high-density PCB assembly while reducing stress on solder joints.
Technical Specifications
| Category | Item | Code | Common Standards | Tolerance | Special Dimensions | Tolerance |
| External Structure | Length | L | 5~75 | ±1% | 2~100 | ±0.6% |
| Width | W | 5~75 | ±1% | 2~100 | ±0.6% | |
| Thickness | H | 0.8~4.0 | ±3% | 0.4~5.0 | ±2% | |
| Single-layer Thickness | h | 0.12，0.15，0.20，0.25 | ±0.02 | 0.1 | ±0.01 | |
| Internal Structure | Hole Diameter | Φp1 | 0.13，0.17，0.20，0.25，0.30，0.34，0.42 | ±0.01 | 0.08，0.10 | ±0.01 |
| Hole Spacing | s1 | 3Φp1 min | – | – | – | |
| Distance from Hole to Edge | s2 | 3Φp1 min | – | – | – | |
| Pad | Φp2 | Φp1+0.1 | – | Φp1+0.05 | – | |
| Side Hole | R | 0.17，0.21，0.25，0.30 | – | Other Specified Requirements | – | |
| Hole Spacing | s3 | 3R min | – | – | – | |
| Via Position Deviation | s4 | – | ±0.02 | – | ±0.015 | |
| Metallization | Line Width | A | 0.08min | ±20% | 0.05min | ±10% |
| Line Width | >0.10 | ±0.02 | >0.10 | ±0.01 | ||
| Line Spacing | B | 0.08min | ±20% | 0.05min | ±0.01 | |
| Line Spacing | >0.10 | ±0.02 | – | – | ||
| Distance from Pattern to Edge | C | 0.20min | – | 0.00 | – |
Features
• Miniaturization, wing-shaped leads, low mechanical stress
• Excellent resistance to mechanical impact and vibration
• High dimensional accuracy and stable metallization
• Suitable for high-density PCB assembly
• Multiple lead pitches available, such as 1.27 mm, 1.00 mm, 0.80 mm, etc
Applications
• Packaging of various integrated circuits (ICs)
• High-reliability electronic components
• Aerospace and defense electronics
• Industrial control systems
• Medical and precision instrumentation

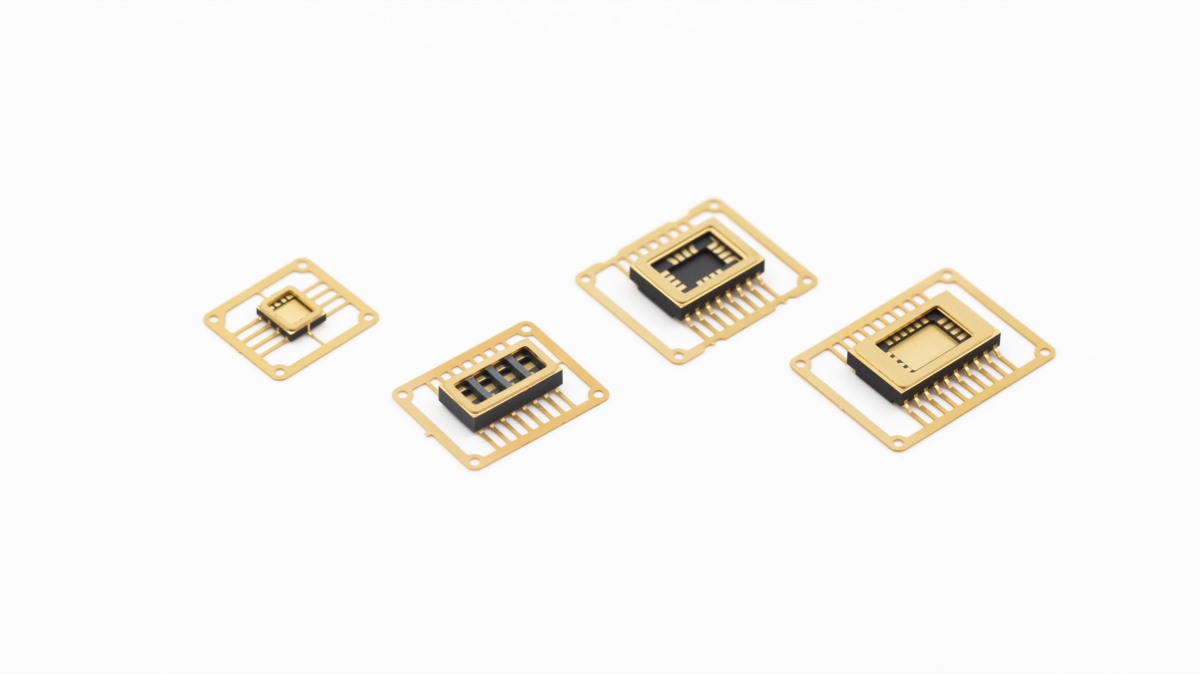

Standard Product Models
| Product Model | Number of Leads | Lead Pitch (mm) | Cavity Size (mm) | External Dimensions (mm) | Sealing Type |
| CSOP04-01 | 4 | 2.54 | 2.60*2.30 | 5.40*4.00 | Flat Sealing |
| CSOP08-02 | 8 | 1.27 | 2.74*3.00 | 5.00*4.40 | |
| CSOP14-03 | 14 | 1.27 | 4.50*2.40 | 9.00*6.00 | |
| CSOP16-02 | 16 | 1.27 | 1.60*2.20 | 10.50*5.40 | |
| CSOP16D | 16 | 1.27 | 5.00*3.00 | 10.50*7.50 | |
| CSOP20-01 | 20 | 1.27 | 6.00*4.00 | 12.70*7.50 | |
| CSOP20-02 | 20 | 0.65 | 2.80*2.80 | 6.60*5.50 | |
| CSOP24-03H | 24 | 0.65 | 4.60*2.00 | 8.60*6.30 | |
| CSOP32-02 | 32 | 1.27 | 12.00*9.70 | 20.47*12.70 | |
| CSOP56-01 | 56 | 0.8 | 10.80*10.30 | 27.30*13.30 |
