The heating circuit is formed on ceramic layers, then laminated and co-fired with the ceramic to create an integrated heating structure. Compared with conventional wire-wound heaters, this embedded design helps reduce component size, support higher power density, and provide a fast thermal response.

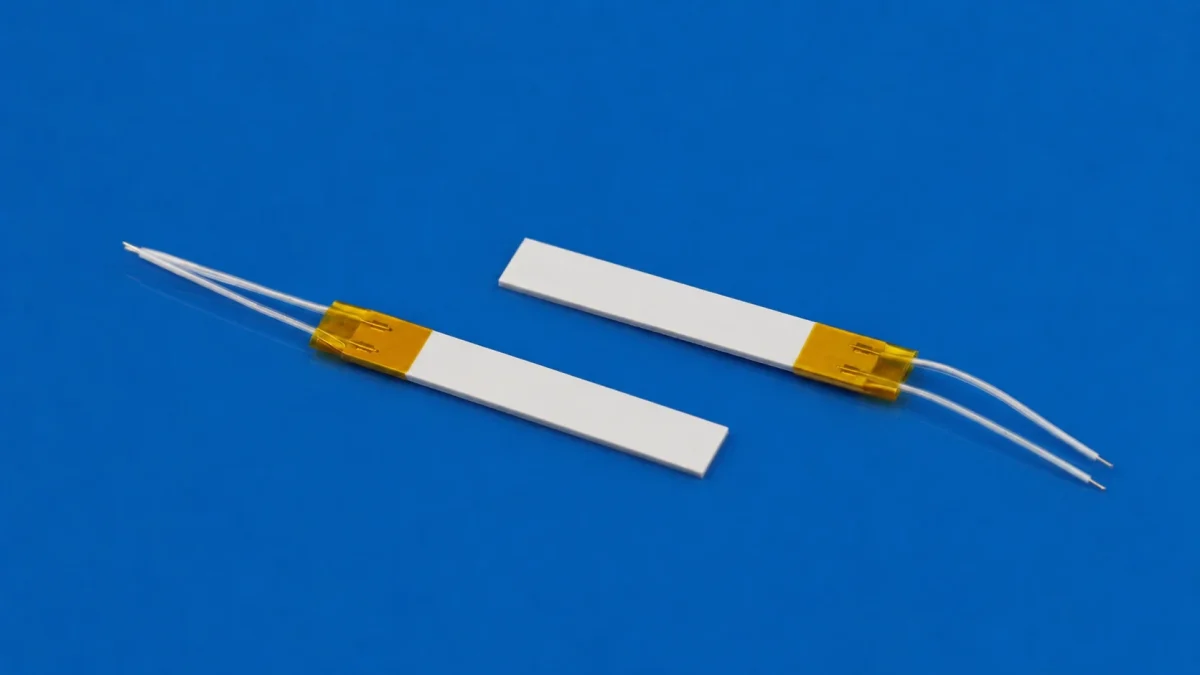

Standard models are available for established hair styling applications. Dimensions, resistance, rated voltage, and lead configurations can also be customized for new designs. The heaters are supplied as bare ceramic elements for integration into the customer’s heating plate assembly.
Why MCH Ceramic Heaters for Hair Straighteners?
Hair straighteners place high demands on heating elements in terms of heat-up speed, temperature distribution, installation space, electrical insulation, and stability during repeated heating and cooling cycles. The main advantages of MCH ceramic heaters include:
- Fast heat-up response
- Compact ceramic structure
- Electrical insulation provided by the ceramic body
- Customizable heating patterns to suit the styling plate
Temperature distribution and temperature recovery in the finished appliance depend on the heater design, contact with the styling plate, and temperature control system.
Specifications and Electrical Options
| Item | Specification |
|---|---|
| Length | 30–100 mm |
| Length tolerance | ±1.5% of nominal length |
| Width | 7–30 mm |
| Thickness | 1.3–2.0 mm |
| Thickness tolerance | ±0.1 mm |
| Rated voltage options | 100–120 V / 220–240 V |
| Resistance | 0.5–500 Ω |
| Resistance tolerance | ±10% |
| Steady-state power | Up to 300 W, depending on heater size and design |
| Maximum heater operating temperature | 850°C, subject to the specification of the selected heater |
| Supply form | Bare ceramic heating element; bonding to the styling plate is carried out by the customer |
These ranges cover different heater designs. Dimensions, resistance, voltage, and power are matched for each model and are not independently interchangeable. The heater temperature rating does not represent the operating temperature of the finished appliance.

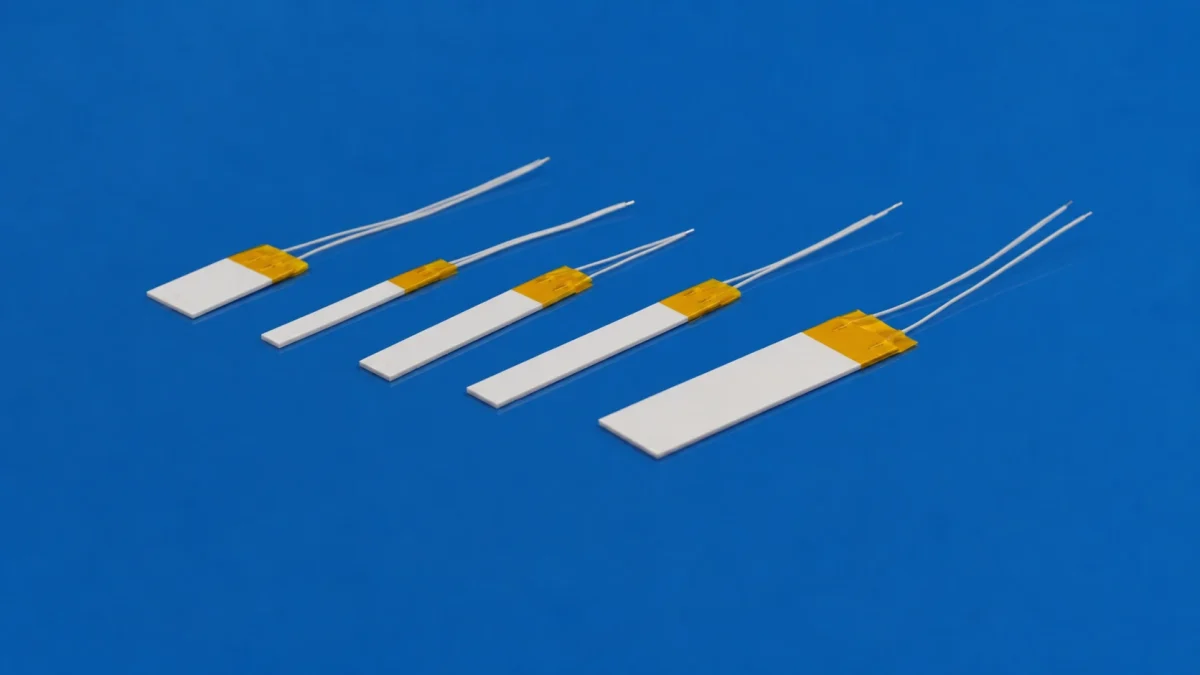

Standard Models
| Series | Available models |
|---|---|
| 30 series | IN3018 |
| 50 series | IN5006, IN5010 |
| 60 series | IN6010, IN6015, IN6020 |
| 70 series | IN7007, IN7010, IN7012, IN7013, IN7015, IN7020 |
| 80 series | IN8007 |
| 90 series | IN9015, IN9025, IN9030 |
| 100 series | IN10012 |
Model drawings and electrical specifications are available for design evaluation. Custom dimensions and resistance values within the available manufacturing range can also be developed for OEM and ODM projects.
Heat-Up Performance
Typical bare-element heat-up performance from room temperature is shown below.
| Target temperature | Typical heat-up time |
|---|---|
| 150°C | Within 2 seconds |
| 180°C | Within 2 seconds |
| 200°C | Within 3 seconds |
| 230°C | Within 3 seconds |
Heat-up data applies to bare ceramic heating elements under test conditions. Actual heat-up time, temperature uniformity, and recovery in the finished appliance depend on heater dimensions and electrical design, thermal contact with the styling plate, thermal mass, insulation, and the temperature-control system. Final performance should be evaluated in the complete assembly.
Applications
- Hair straighteners / flat irons
- Curling irons / hair curlers
- Heated hair brushes
- Other hair styling appliances
Alumina ceramic heaters are widely used in compact hair styling tools where fast heat-up, limited installation space, and stable heating performance are important. These characteristics make MCH alumina heaters well suited to straighteners, curling tools, heated brushes, and related appliances.
Looking for a Custom MCH Ceramic Heater for Your Hair Straightener?
For technical evaluation or quotation, provide the available installation space or drawing, rated voltage, target resistance or power, target plate temperature, heat-up requirement, lead configuration, and estimated annual quantity. INNOVACERA can develop heater dimensions, heating patterns, lead configurations, and electrical parameters for hair straighteners and other hair styling appliances.
Declaration: This is an original article of INNOVACERA®. Please indicate the source link when reprinting: https://www.innovacera.com/product/mch-ceramic-heating-element-for-hair-straighteners
Frequently Asked Questions
Why choose MCH ceramic heaters for hair straighteners? How do they enhance styling appliance performance?
MCH (Metal Ceramics Heater) elements offer significant advantages over traditional wire-wound heaters for hair styling tools. Co-fired with an alumina ceramic substrate and embedded resistance circuit, they deliver rapid heat-up, highly uniform temperature distribution, superior electrical insulation, and long-term thermal stability in a compact, lightweight footprint. This ensures faster styling results, consistent heat across flat iron plates, and extended appliance lifespan.
Looking for an MCH ceramic heater manufacturer? How can you custom heating elements for your hair straighteners?
As a specialized ceramic heater manufacturer, INNOVACERA provides tailored heating solutions for hair straighteners, curling irons, and heated brushes. You can customize dimensions, target voltage/power, resistance tolerance, heating trace patterns, and lead-wire configurations by submitting your technical specifications and application requirements to our engineering team for a bespoke quote and prototype.
Can the heating element be customized for our hair straightener?
Yes. Dimensions, rated voltage, resistance, heating pattern, and lead configurations can be customized. Please provide a drawing or your installation dimensions, electrical requirements, and target plate temperature for evaluation.
