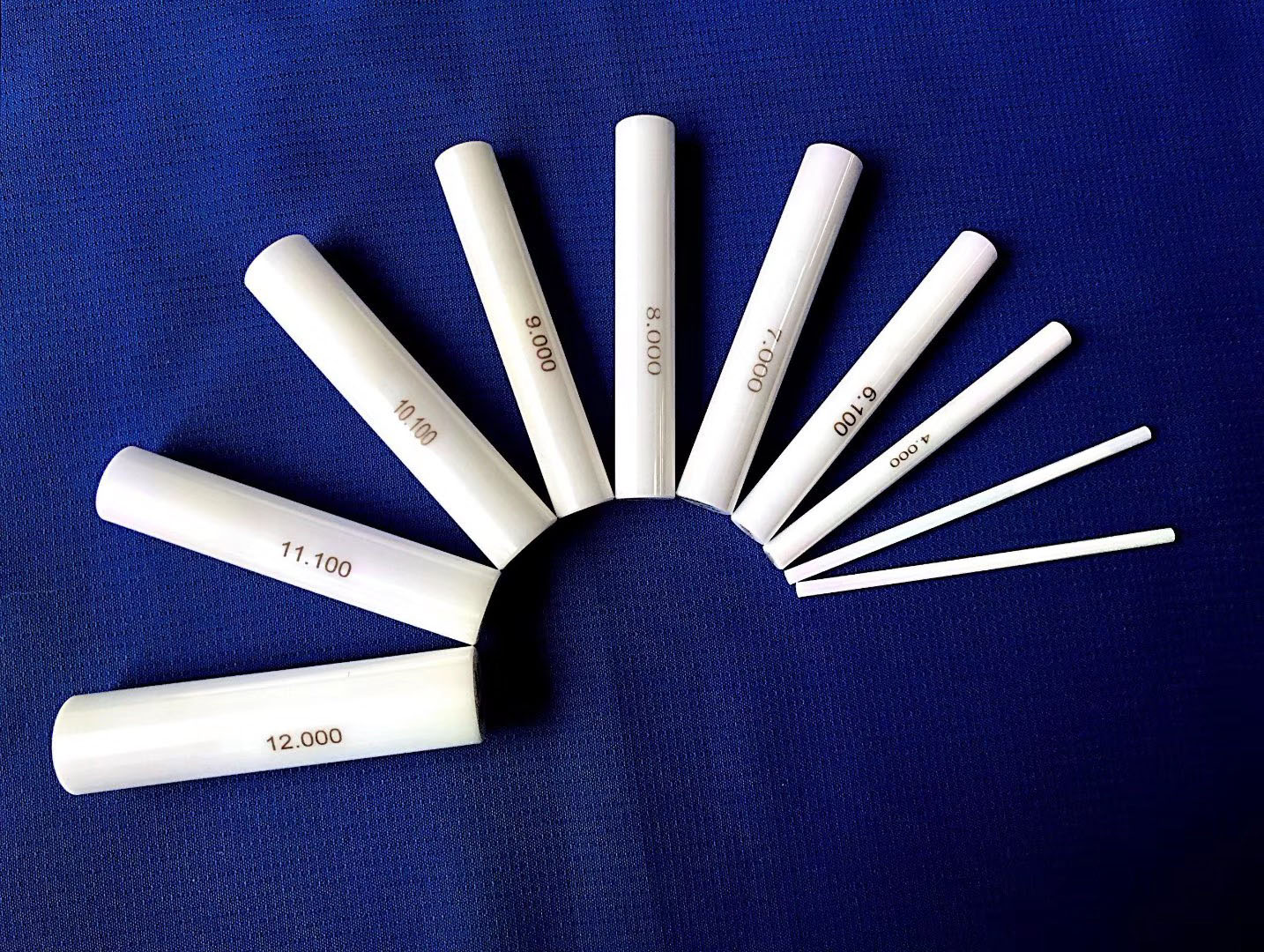

Innovacera develop standard and customized precision ceramic needle gauges

Innovacera develop standard and customized precision ceramic needle gauges

As we known, the gauge is a vital inspection tool, and most of the company use stainless steel and other metal materials.

Innovacera have developed some standard ceramic needle gauges with size of OD1-12mm and length of 50mm, the interval of diameter size is 0.01mm. We also can make customized size.

There are some advantages of ceramic needle gauge compare to other metal materials: super wear-resistant, corrosion-resistant, non-rusting, non-magnetic, non-conductive, maintenance-free.

Here is some more detail about our ceramic needle gauge:
Inspection instruments: Mitutoyo Laser Measuring Instrument (the equipment deviation is 0.2μm).

Inspection standard:

  • Level-1 Gauge: Temperature 20 ℃ ± 1 ℃, Humidity 50%, upper limit+0.3μm, lower limit-0.2μm; Cylindricity ≤ 0.3μm,Roundness ≤ 1μm;
  • Level-0 Gauge: Temperature 20 ℃ ± 1 ℃, Humidity 50%, upper limit+0.1μm, lower limit-0.1μm; Cylindricity ≤ 0.1μm,Roundness ≤ 0.6μm;
  • Level-0 gauge accuracy is ±0.0005mm.

If you need any standard or customized precision cerotic needle gauges, welcome to contact us.
