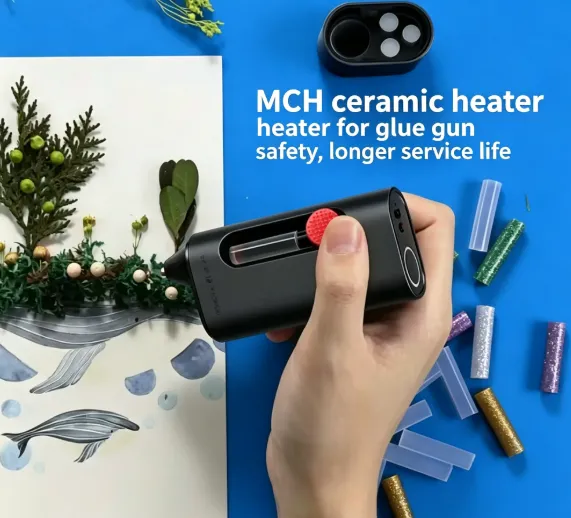

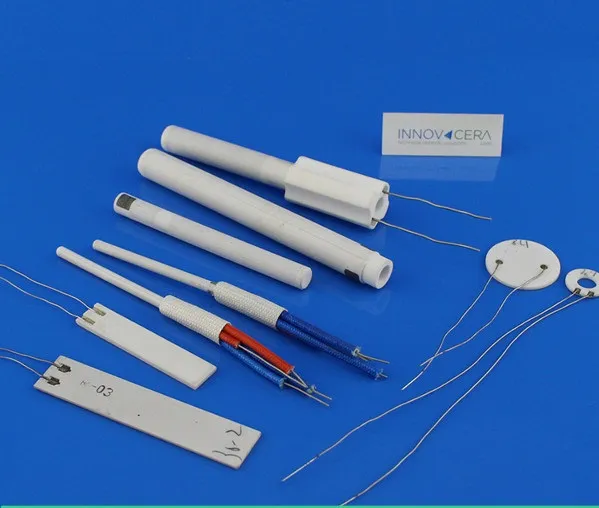

MCH Ceramic heaters are already a mature, mainstream, and safe standard solution in consumer electronics such as glue guns, soldering irons, beauty devices, and smart toilet seats.
Why do consumer electronics prefer ceramic heaters (compared to traditional ones)?
| Comparison Item | Ceramic Heater (MCH) | Traditional Mica / Nichrome Wire |
|---|---|---|
| Safety | Excellent insulation, no electric leakage, resistant to dry burning | Prone to breakdown and electric leakage, risk of fire under dry burning |
| Service Life | 10,000+ hours, vibration-resistant | 1,000–3,000 hours, prone to wire breakage |
| Warm-up Speed | 1–3 minutes, uniform heating | Slow, prone to local overheating |
| Size | Thin, compact, high integration | Thick, bulky |
| Cost | Moderate to high initial cost, low total cost of ownership due to long lifespan | Low initial cost, but high replacement cost due to short lifespan |
I. Core Advantages Comparison
1. Superior Electrical Safety, Essential for Household/Handheld Appliances
– Extremely High Insulation Level: The ceramic body is made of highly insulating alumina material. The heating element is completely sealed inside the ceramic, and the outer shell is not electrified. Traditional wire-wound heating: Nichrome wire is close to the outer casing, and mica is prone to moisture and static electricity creep, making it extremely easy to leak electricity and cause electric shock when using a handheld glue gun.
– Anti-dry burning and fire-proof PTC ceramic has a built-in temperature lock-in mechanism; it automatically reduces power when the rated temperature is exceeded, preventing sustained high temperatures from melting the plastic casing. Traditional heating wires glow red and melt within seconds of dry burning, easily igniting the glue stick and the plastic casing.
– Withstands voltage breakdown, complies with 3C appliance safety regulations, and easily passes quality inspection certification.
2. Stable and uniform heating for a better user experience
– Strong temperature consistency: The ceramic’s overall surface heating ensures a stable glue dispensing temperature, preventing sudden temperature changes and ensuring the glue doesn’t string or come unglued. Traditional wire heating results in localized high temperatures and large temperature differences, easily causing gun clogging, glue overflow, and bonding failure.
– Fast heating speed: Ceramic has a fast thermal response; the glue gun dispenses glue in just a few seconds. Traditional mica heating is slow, requiring a long waiting time.
3. Durable and robust structure, suitable for frequent handheld use.
– Vibration-resistant, drop-resistant, and not easily broken. The internal heating element is densely encased in ceramic, making it resistant to damage from hand-held shaking, bumps, and drops. Traditional nickel-chromium wires are thin and prone to breakage due to frequent vibration.
– Resistant to thermal shock. Repeated on-off heating and off-off cooling will not cause the ceramic to crack or deform; older heating elements are prone to aging and delamination due to alternating hot and cold temperatures.
– Compact and lightweight design, convenient for use in mini glue guns and portable small appliances.
4. Significantly extended lifespan, reduced after-sales costs.
– Typical lifespan of ceramic heaters: 8000~15000 hours.
– Lifespan of traditional wire-wound heating elements: 1000~3000 hours. Significantly lower repair rates and replacement costs in long-term assembly line operations and high-frequency household use.
5. Enhanced environmental adaptability. Moisture-proof and resistant to minor dust corrosion, less prone to short-circuit damage in humid workshops and homes; mica heating elements experience rapid insulation failure when exposed to moisture, leading to a surge in failure rates.
6. Simple and controllable temperature control, compatible with multiple product levels
PTC ceramics can maintain a constant temperature without complex temperature control circuits; MCH ceramics, combined with simple temperature control, can accurately control the temperature, easily making temperature-adjustable glue guns and multi-mode small appliances, with a simpler circuit design.
Innovacera provide ceramic heater solution for customers, if you have more questions, pls contact with us by email sales@innovacera.com.
Declaration: This is an original article of INNOVACERA®. Please indicate the source link when reprinting: https://www.innovacera.com/news/mch-ceramic-heater-consumer-electronics.html.
