INNOVACERA has many types of ceramic parts for water jet loom machine like ceramic nozzle, ceramic plunger,ceramic directional valve and cutter blade.

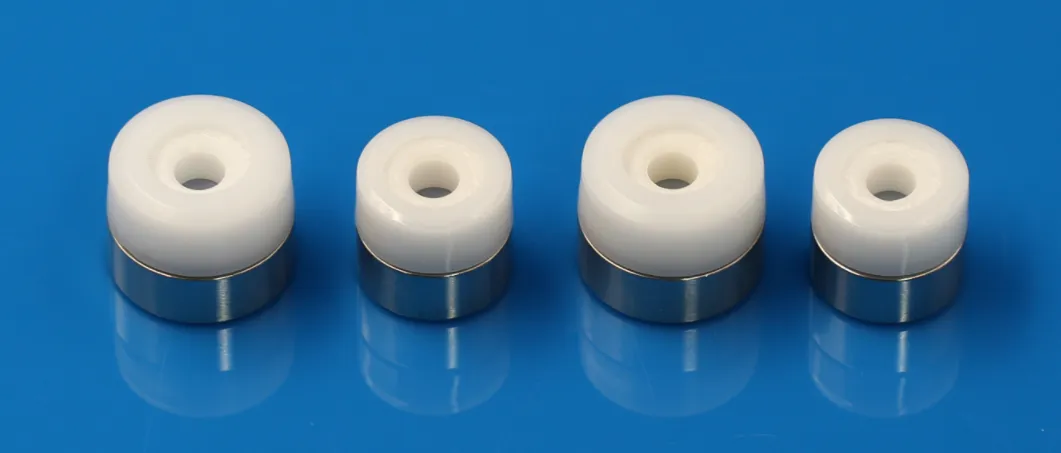

Our ceramic nozzle is the combination of zirconia ceramic and stainless steel, which is available in white, gray and black color to meet your different requirement. A good nozzle is very important to the stability of the water flow. Zirconia ceramic with high mechanical strength performs excellent in wear resistance and have long service life.

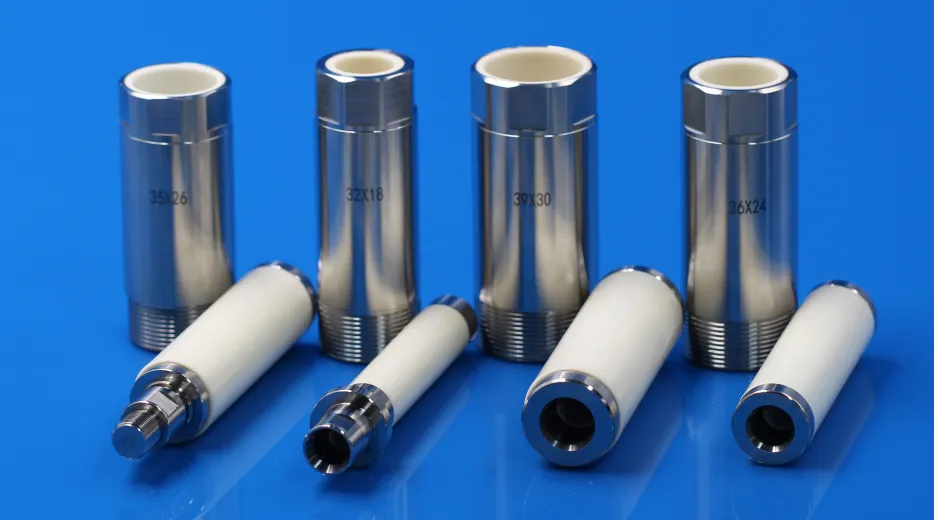

For ceramic plunger is made by high purity Alumina and stainless steel. The gap between stainless steel and ceramic part is uniform to make sure works well and without water leak out. Our product has good leakproofness. Its surface is highly polished for good wear resistance and it can endure high pressure. At the same time, its concentricity is excellent.

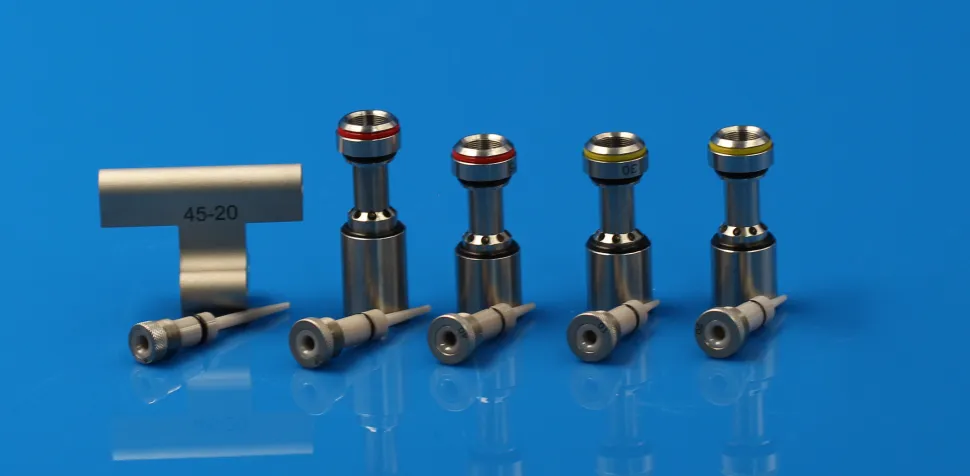

Regarding ceramic directional valve, we have long and short spool for your selection. Long one is suitable for large flow and high water pressure as it is stable but the response is slightly slow. Short one is suitable for small flow but high speed. It can reversing fast but the flow adjustment is small. You can select according to the machine model.
Compared with tungsten steel blade, the ceramic one is more cost effective. Commonly speaking, one loom machine needs two pares of blade. We sintering material and process the blade from our production line, so we have the advantage in price and the quality control.
If you are looking the parts above for the water jet loom machine, warm welcome to ask. More questions about ceramic used in water jet loom machine, feel free to contact us at +86 592 558 9730 or sales@innovacera.com for more information.
Declaration: This is an original article of INNOVACERA®. Please indicate the source link when reprinting: https://www.innovacera.com/news/water-jet-loom-ceramic-parts.html.
