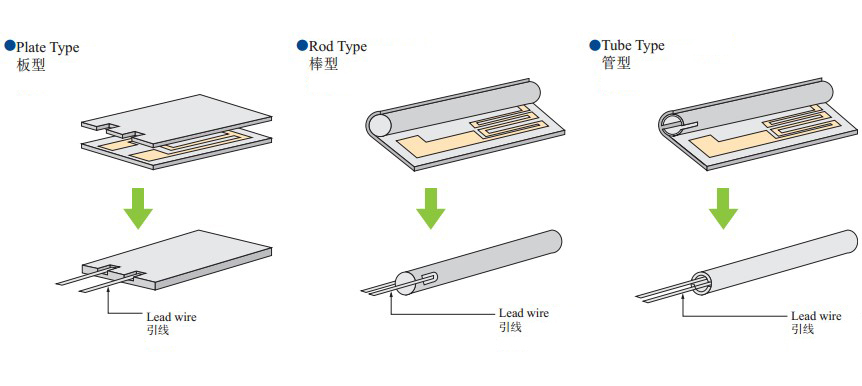

The design structure of a ceramic heater typically consists of the following components:
1. Protective Housing: The ceramic heating element and insulating materials are enclosed within a protective housing made from stainless steel, aluminum, or other heat-resistant materials. The housing serves to protect the internal components from damage and provides a safe and sturdy structure.
2. Ceramic Heating Element: The heart of the ceramic heater is the ceramic heating element. It is typically made from a ceramic material with high electrical resistance, such as alumina or silicon nitride. When an electric current is passed through the ceramic element, it heats up, emitting infrared radiation that provides the heating effect.
3. Insulating Material: Surrounding the ceramic heating element, there is usually an insulating material that helps retain and focus the heat generated by the element. Common insulating materials include mica, ceramic fiber, or high-temperature insulation bricks.
4. Temperature Control: Depending on the application, ceramic heaters may have built-in temperature control features. This can include thermostats, thermocouples, or electronic temperature controllers to regulate and maintain the desired temperature.
5. Electrical Connectors: Ceramic heaters are connected to a power supply through electrical connectors or terminals. These connectors ensure a secure and reliable electrical connection.
6. Mounting Options: Ceramic heaters may have different mounting options to facilitate easy installation in various systems and equipment. Mounting brackets, flanges, or clips are common methods used for securing the heater in place.
