Machinable Glass Ceramic Insulating Bar for Medical Applications

Machinable Glass Ceramic Insulating Bar for Medical Applications

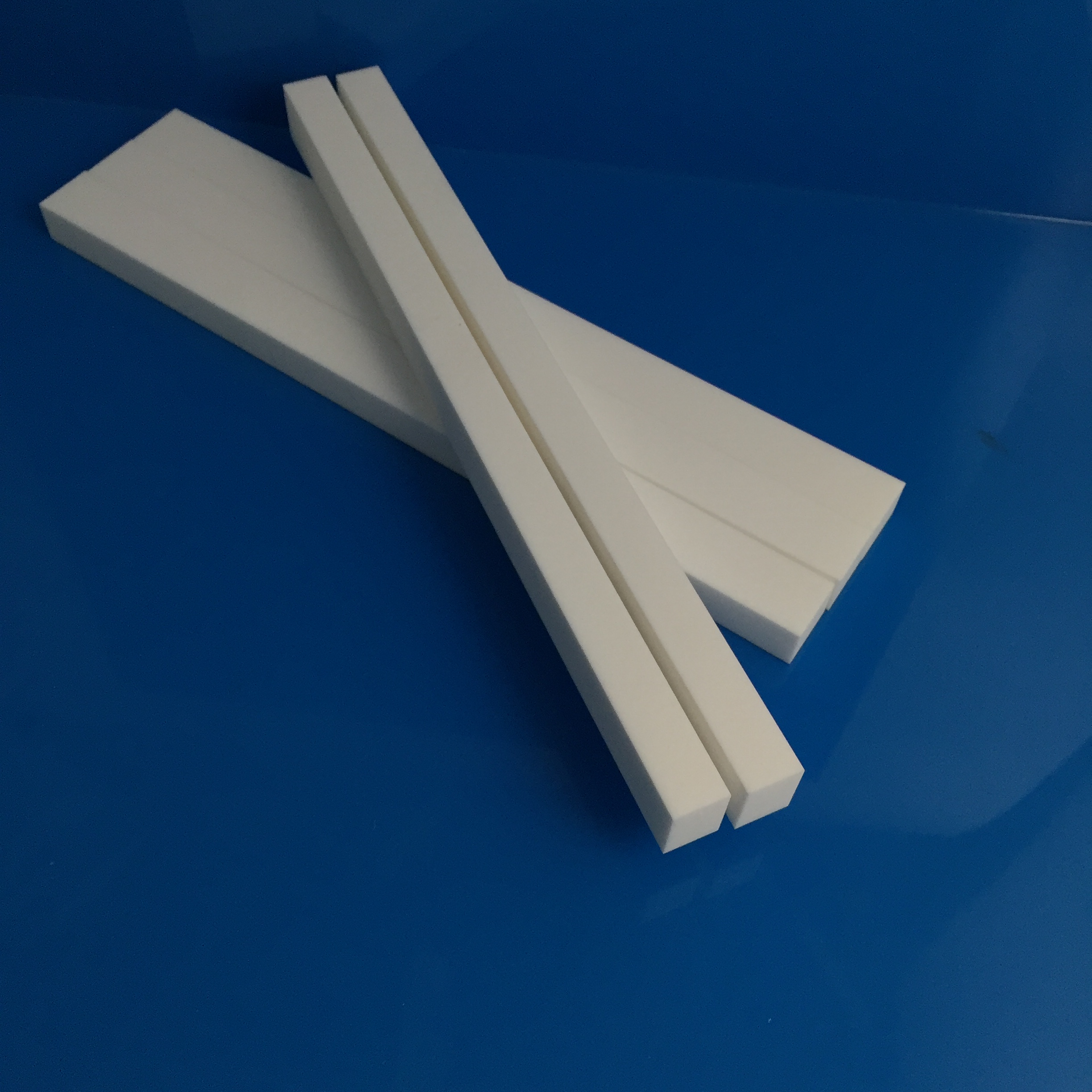

machinable glass ceramic insulating bar

machinable glass ceramic insulating bar

This ceramic bar is used for processing of insulators on Medical devices.

Machinable Glass Ceramic has a continuous use temperature of 800℃ and a peak temperature of 1000℃. Its coefficient of thermal expansion readily matches most metals and sealing glasses. It processes good machinability and can be lathed, milled, planed, ground, bored, incised and threaded. It also has the advantages of insulation, pore-free, high/low-temperature resistant, acid and alkali resistant and thermal impact resistant.

It is widely used for nuclear, microwave high vacuum insulation, high precision magnetism-free skeleton for aeronautic and astronautic electrical devices, ultra-high voltage insulation for electric motors and structural parts at strong erosion environments. In terms of machinability, it can take place of aluminium oxide and boron nitride ceramics that are difficult to machine.

Stock size of rods
φ10*100mm; φ15*100mm; φ20*150mm; φ25*150mm; φ30*150mm; φ35*150mm; φ40*150mm; φ45*150mm; φ 100*100mm ; φ50*150mm; φ55*150mm; φ60*100mm; φ65*100mm; φ70*100mm; φ75*100mm; φ80*100mm; φ85*100mm; φ90*100mm; φ105*100mm;φ110*100mm
φ4 ×300 mm; φ6 ×300 mm; φ8×300 mm; φ10×300 mm; φ12×300 mm; φ16 ×300 mm; φ21 ×300 mm
φ26×300 mm; φ30 ×300 mm; φ8×300 mm; φ50×300 mm

machinable glass ceramic components show

machinable glass ceramic components show

Customized design will be available for INNOVACERA
