Piezoelectric Ceramics Expand Applications in Ultrasonic Measurement and High-Precision Sensing Systems

With the rapid development of ultrasonic technology, industrial automation and high-end medical equipment, piezoelectric ceramics, as a key functional material, is gradually evolving from traditional sensing components to the core driving units in multiple industries. Its applications in energy measurement, industrial inspection, medical imaging and environmental detection have been continuously deepening.

I. Material Basis: Ferroelectric structure endows high sensitivity piezoelectric properties

Piezoelectric ceramics are a type of typical ferroelectric functional ceramic material. They are composed of a large number of grains inside. In the un-polarized state, due to the random distribution of the spontaneous polarization direction, the material as a whole does not exhibit a macroscopic piezoelectric effect.

Through high-temperature sintering, electrode preparation, and direct current field polarization treatment, the polarization directions of the crystal grains were rearranged and became consistent, thereby enabling the material to acquire stable piezoelectric properties and achieving efficient conversion between mechanical energy and electrical signals.

Compared with single-crystal materials such as piezoelectric quartz, piezoelectric ceramics have greater design flexibility and stronger engineering adaptability, making them suitable for complex structures and large-scale manufacturing requirements.

II. Energy Measurement Field: The Core Sensing Foundation of Ultrasonic Measurement System

In the modern energy measurement system, piezoelectric ceramics have become the core execution unit of ultrasonic measurement technology, and are widely used in various fluid and medium detection devices, including:

• Ultrasonic water meters and heat meters

• Gas ultrasonic flow meters

• Orifice flow meters and vortex flow meters

• Ultrasonic level meters and tuning fork level systems

• Ultrasonic density and level detection equipment

In various application scenarios, piezoelectric ceramics are mainly responsible for the transmission and reception of ultrasonic signals, helping the entire system achieve non-contact high-precision detection and measurement.

Thanks to its outstanding stability and excellent anti-interference performance, piezoelectric ceramics can effectively adapt to complex working conditions, significantly enhancing the stability and service life of the equipment during long-term continuous operation.

III. Industrial Inspection Field: Promoting the “Visualization” Upgrade of Equipment Status

In the field of industrial inspection and condition monitoring, piezoelectric ceramics are widely used in vibration analysis and structural health monitoring systems, including:

• Non-destructive testing (NDT) system

• Vibration and acceleration sensor

• Dynamic balance testing equipment

• Fastener tightening force monitoring system

By highly sensitively capturing weak mechanical vibrations, piezoelectric ceramics can convert the operating status of equipment into analyzable data, providing an important foundation for predictive maintenance and fault diagnosis.

Especially in high-end equipment manufacturing and automated production lines, these types of sensors are gradually becoming standard equipment.

IV. Ultrasonic Drive and Medical Applications: Core Materials for High-Frequency Energy Conversion

In the ultrasonic driving system, piezoelectric ceramics are the key components for achieving high-frequency mechanical vibrations and are widely used in:

• Ultrasonic welding equipment

• Ultrasonic cleaning system

Its high-efficiency energy conversion capability directly affects the stability of equipment output and processing quality. It has been widely applied in the fields of electronic manufacturing, semiconductor packaging, and precision cleaning.

In the medical field, piezoelectric ceramics also hold a central position. Typical applications include:

• Type B ultrasound diagnostic system (B ultrasound)

• Fetal heart monitoring equipment

• Ultrasound dental cleaning and beautification instrument

• Ultrasound surgical knife

• Infusion bubble detection system

Among these devices, their main function lies in generating high-frequency ultrasound signals and maintaining stable output, which is an essential foundation for medical imaging and minimally invasive treatment technologies.

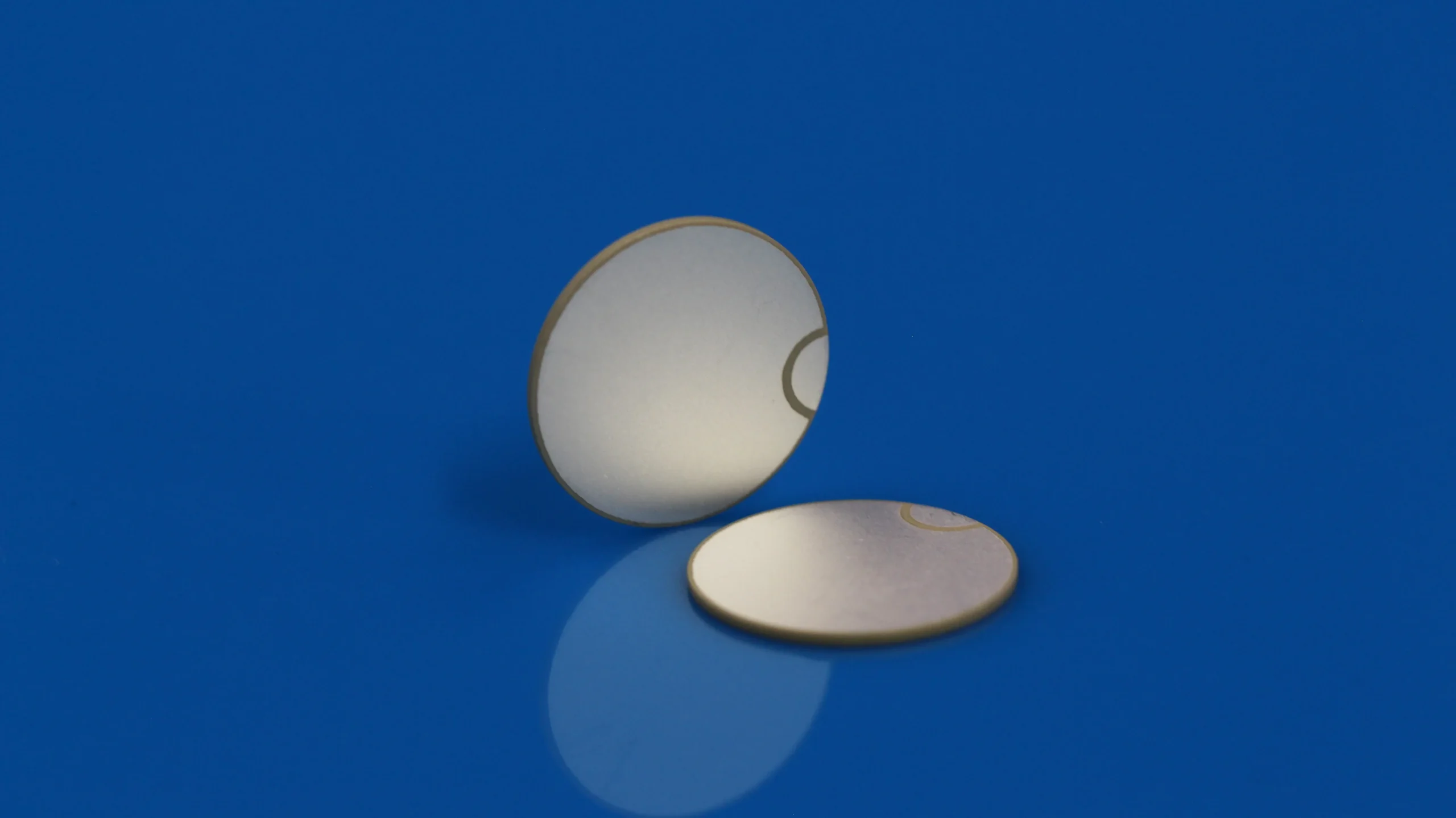

V. Ocean and Environmental Exploration: Highly Sensitive Sensing in Complex Media

In the field of underwater sound and environmental monitoring, piezoelectric ceramics are used to construct highly sensitive detection systems, including:

• Sonar detection and underwater target identification system

• Underwater acoustic communication and signal transmission equipment

• Ultrasonic wind speed and direction measuring instrument

Its advantage lies in the ability to maintain stable response in complex media with high noise and strong attenuation, enabling long-distance and high-precision acquisition of environmental information.

VI. Communication and Electronic Systems: The Key Guarantee for Frequency Stability

In communication and electronic systems, piezoelectric ceramics are widely used in resonators, filters and frequency control components.

Its main advantages are as follows:

• High frequency stability

• Strong anti-electromagnetic interference capability

• Small in size, easy to integrate

• Long-term reliability is excellent

These characteristics make them important basic components in multi-channel communication systems and high-density electronic devices.

From functional materials to system-level core components

With the continuous development of high-end manufacturing, intelligent sensing and ultrasonic technology, piezoelectric ceramics are gradually evolving from single-function components to cross-industry system-level core materials, and their role in the precision sensing and energy conversion system is continuously strengthening.

Its application scope is still continuously expanding, and it has established a stable foundational support position in multiple high-tech fields.

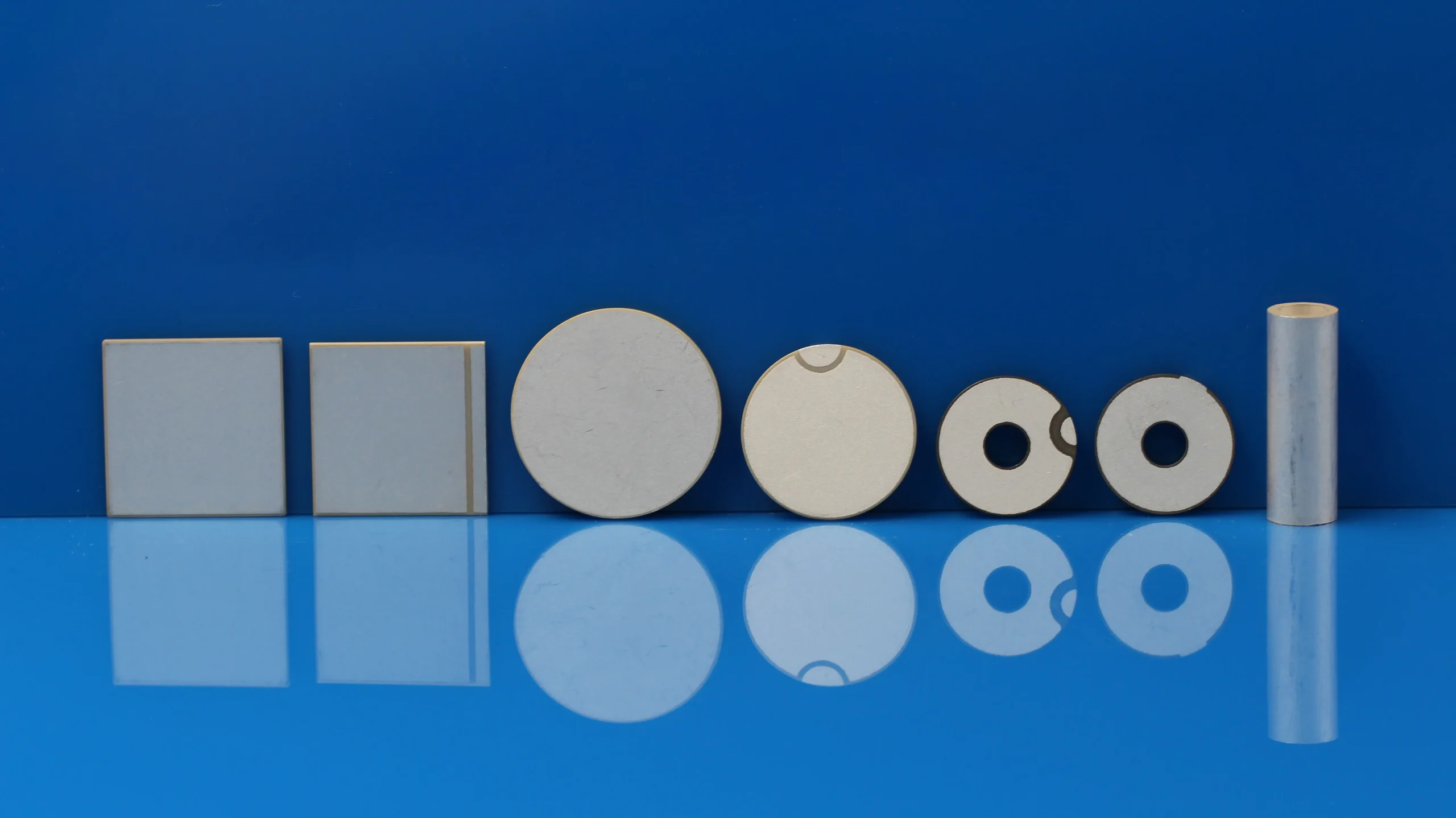

Innovacera supplies a wide portfolio of piezoelectric ceramic products and supports customized development for diverse applications. Welcome to contact us at sales@innovacera.com, for inquiries and cooperation.
