Ultra High Precision Ceramic Ring Gauges Ceramic Setting Ring

Innovacera developed a series of ceramic accessories for Inside Micrometers, Holtest and Dial Bore Gages. The ceramic material used mostly is zirconia.

The zirconia ceramic setting ring advantages:

  • High wear resistance and long service life
  • The coefficient of thermal expansion is very small, the effect of temperature is very small
  • The hardness is very high, there is no need to worry about surface scars.
  • Ring gauge management is simple (regular inspection interval is long, saving cost).

The Zirconia Ceramic Ring Gauges Technology:

Surface Roughness: Not more than Ra0.1um

Straight Angle: 0.05/φ100

Parallelism: Not more than0.015mm

Each 0.5mm as one size, from 1mm to 50mm.

Size Dimensional interval Roundness Outer diameter tolerance: Inner diameter tolerance Hardness
1-29mm 0.5mm 0.5um ±1um ±1um 1200HV
30-50mm 0.5mm 0.8um ±1.6um ±1.5um 1200HV

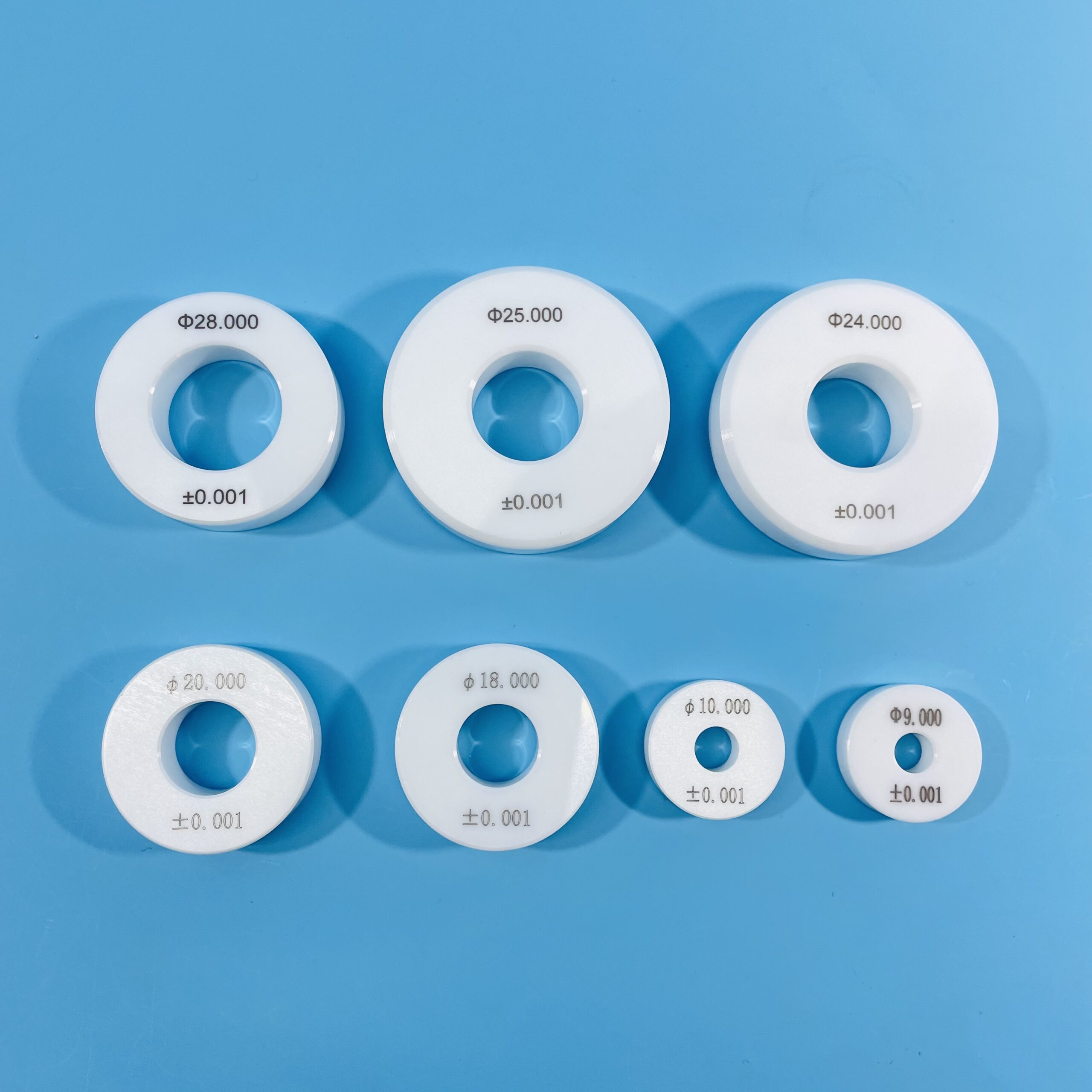

Some Zirconia Ceramic Ring Gauges Innovacera made and size detail:

9mm, 10mm, 18mm, 20mm, 24mm, 25mm, 28mm

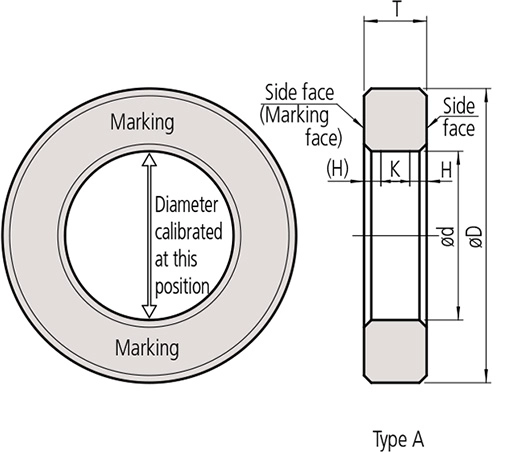

D(mm) d(mm) T(mm) outer chamfer(mm) inner chamfer(mm)
1-2 22 4 0.4 0.3
2.5-4.5 22 5 0.4 0.3
5-9.5 32 8 0.8 0.5
10-14.5 38 10 1.2 0.5
15-19.5 45 12 1.2 1.0
20-24.5 53 14 1.2 1.0
25-31.5 63 16 1.5 1.0
32-39.5 71 18 2.0 1.0
40-50 85 20 2.0 1.0
Ultra High Precision Ceramic Ring Gauges Ceramic Setting Ring

Ultra High Precision Ceramic Ring Gauges Ceramic Setting Ring

Ultra High Precision Ceramic Ring Gauges

Ultra High Precision Ceramic Ring Gauges
