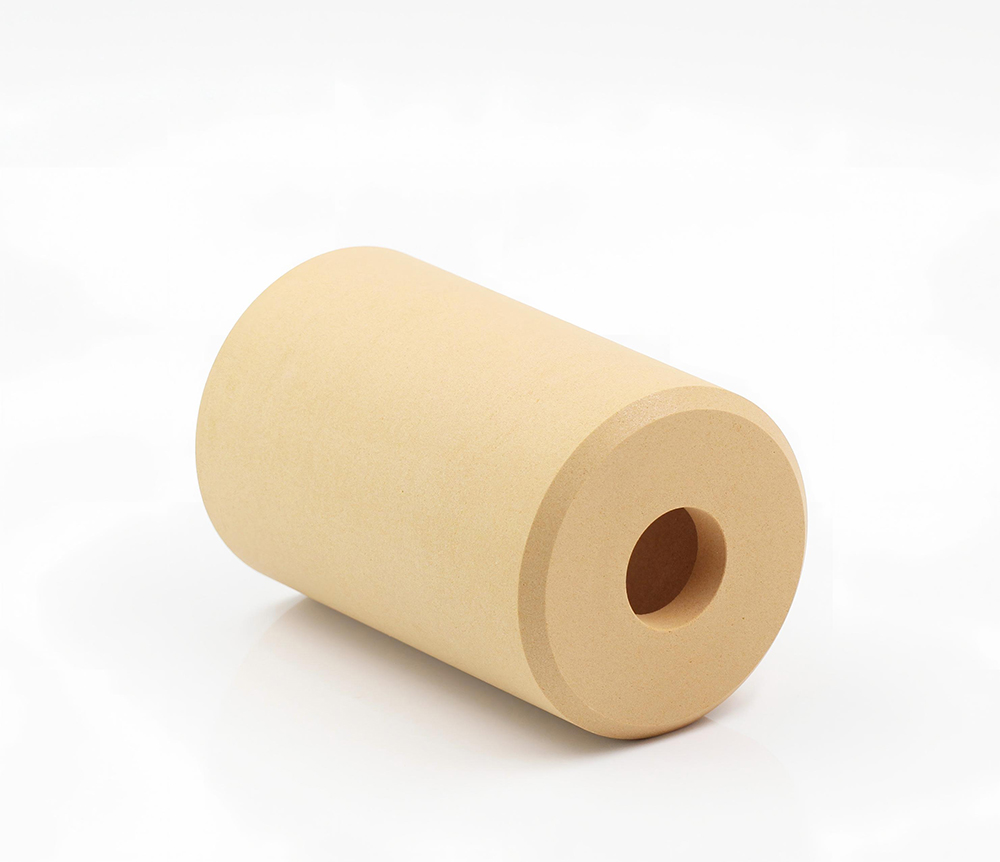

Are you looking for a ceramic can be used for high temperature more than 1500 degree centigrade, or even more 2000 degree C? In Innovacera, we have such a material that can meet your requirement. It is MSZ zirconia ceramic.We also call it yellow Zirconia as its appearance is yellow color.
Its main composition is zirconium oxide about 95%, second is MgO around 2%. With MgO joining in, its performance is totally different with common Zirconia ceramic, which is white color without porosity and is only suitable for working temperature below 1000 degree C.
We have two types of the yellow Zirconia, one with high density 5.3-5.5g/cm3 but low porosity ≤5%.，one with lower density 4.8-5.2g/cm3 but higher porosity ≤12%. Please note that the density and porosity is a range not an exact data as different technology it will be different. It can be doing by casting, dry pressing and Isostatic pressing. Different technology the cost is various.
Here is the material data sheet:
| Material Properties | Item | Units | MSZ-L | MSZ-H |
| Composition | ZrO2 | % | ≥95 | ≥95 |
| Al2O3 | % | ≤0.2 | ≤0.2 | |
| SiO2 | % | ≤0.4 | ≤0.4 | |
| MgO | % | ≤2.9 | ≤2.9 | |
| Fe2O3 | % | ≤0.1 | ≤0.1 | |
| TiO2 | % | ≤0.1 | ≤0.1 | |
| Physical | Color | Yellow | Yellow | |
| Density | g/cm3 | 4.8-5.2 | 5.3-5.5 | |
| Porosity | % | ≤12 | ≤5 |

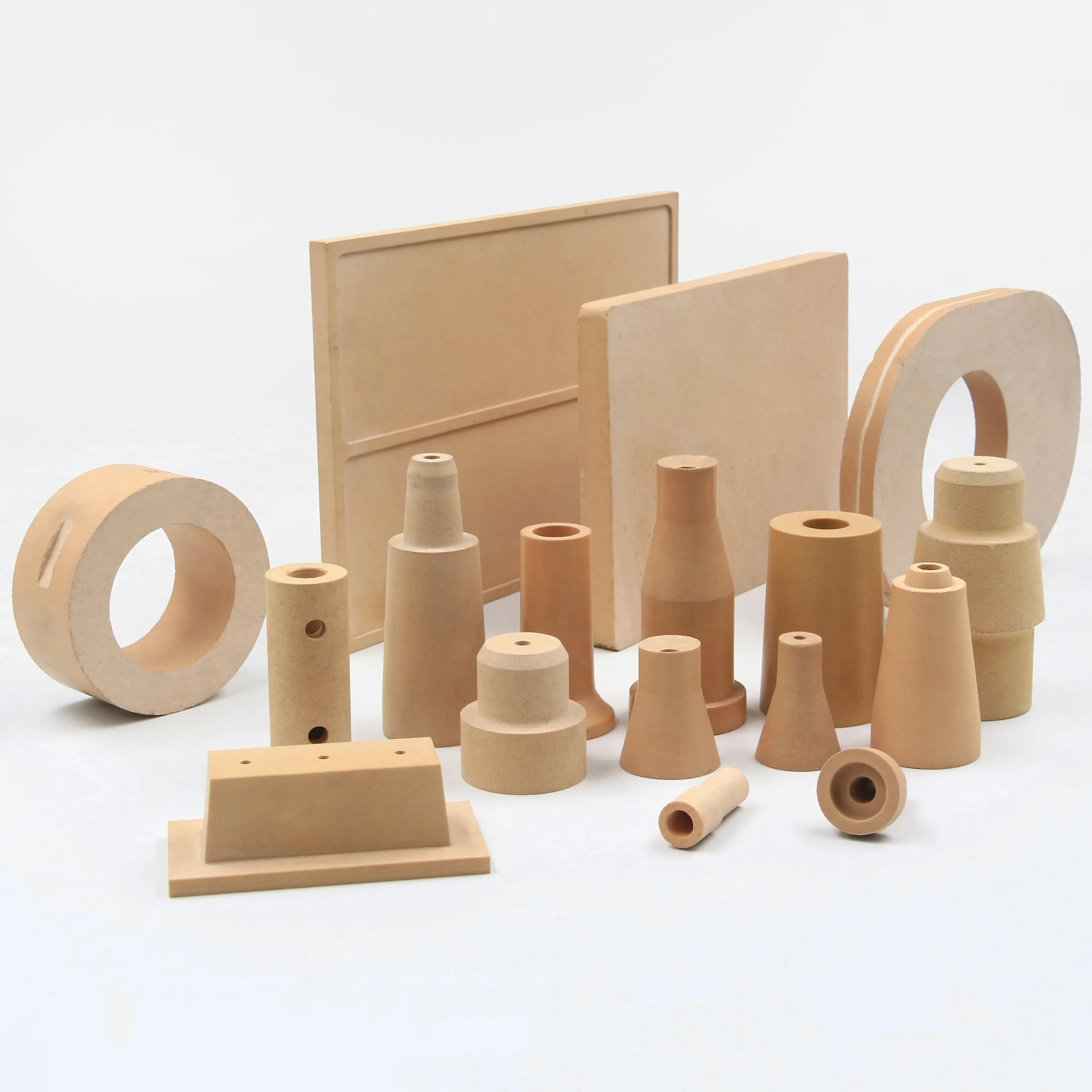

If you are looking for a ceramic working at atmosphere and the temperature reaches more that 1500degree C, our MSZ zirconia may be suitable. If your working environment is vacuum, high vacuum, or with inactive gas, BN family can be considered as well.
Advantages
– High wear-resistant and erosion- resistant
– Metal corrosion resistance in high temperature
– High Strength
– Long service life
Any more questions about MSZ/yellow zirconia ceramic, just feel free to contact us at +86 592 558 9730 or sales@innovacera.com for more information.
Declaration: This is an original article of INNOVACERA®. Please indicate the source link when reprinting: https://www.innovacera.com/news/zirconia-for-high-temperature-use.html.
