New Arrival: Black Coated Ceramic Igniter

In order to better meet the market needs for fast ignition, high durability, and high power, INNOVACERA has introduced the following black coating igniters.

New Arrival Black Coated Ceramic Igniter

New Arrival Black Coated Ceramic Igniter

FEATURES

1. Black coating type
2. 300W+5%-10%
3. 60-90 seconds ignition time
4. Available in 120V 220V-240V
5. ROHS/REACH certification
6. Many designs available
Impervious to oxidation and corrosion
Ignite wood pellets, wood chips, split logs, straw, and other biomass
9. Comply with RoHS, REACH regulation on Hazardous Substance
10. Customized welcome

APPLICATION

Wood Pellet Stove
Wood Pellet Boiler
Wood Pellet Burner
Wood Chips Burner
Straw Burner
Coal For Stoves
Other Biomass Burner

Below is the ceramic igniter technical data:

Model Specification Heater
dimension(mm)
Flange Cable Remark
INH-1-230 230V
270W-315W
106*11.5 26.6mm
Ceramic base
+ silicone heat shrinkable
tube
50/40CM
Length and line type
can be customized
INH-2-230 230V
270W-315W
106*11.5 17.7mm
Ceramic base
INH-3-230 230V
270W-315W
106*11.5 silicone heat shrinkable
tube
INH-4-230 230V
270W-315W
106*11.5 G3/8
Nut
IN-1-230 145W-200W
200W-250W
90*10.5 50CM
Length and line type
can be customized
Ceramic base
IN-2-230 90*10.5 Nut + Silicone
Heat Shrink Tube
Nut (G3, etc.)
IN-3-230 270W-315W 108*11.5 Nut+ Ceramic base

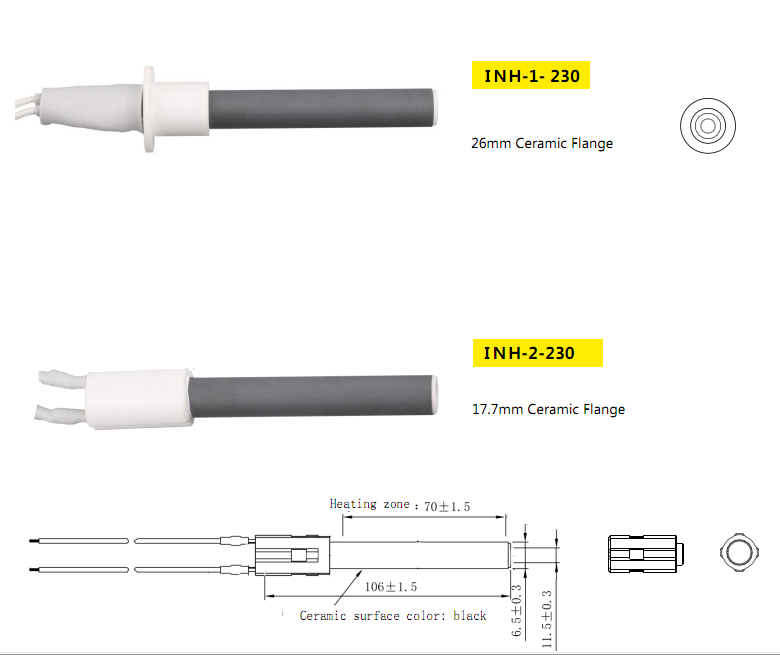

Wood Pellet Stove Ceramic Igniter

Wood Pellet Stove Ceramic Igniter

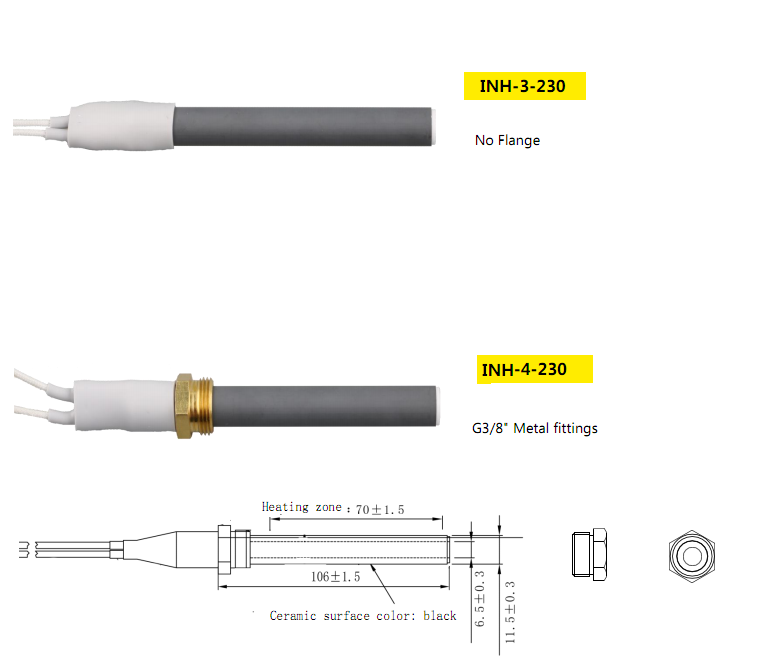

Biomass Burner Ceramic Igniter

Biomass Burner Ceramic Igniter

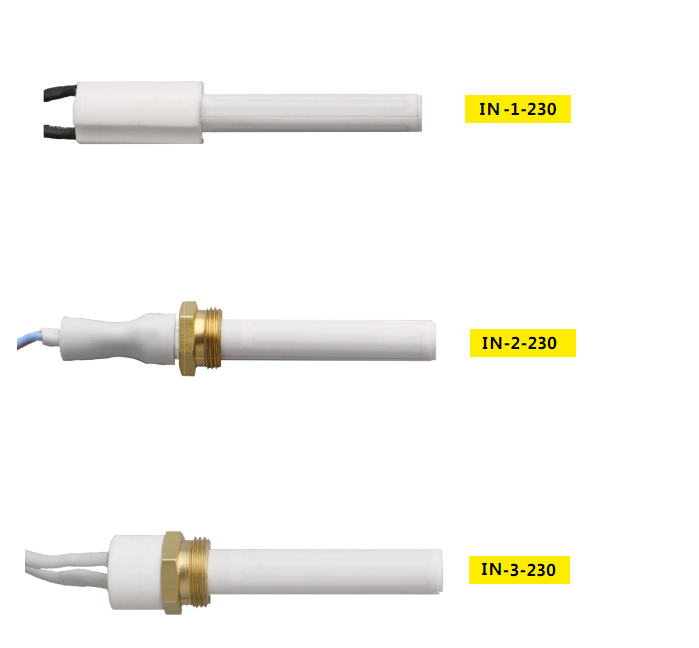

Wood Pellet Burner Ceramic Igniter

Wood Pellet Burner Ceramic Igniter
