Analytical Instruments Components

Advanced ceramic materials are fundamental to the precision and reliability of modern Analytical Instruments, including mass spectrometers, gas chromatographs, and electron microscopes. Components like ceramic insulators, high vacuum feedthroughs, filter plates, and precision pump parts are essential, providing chemical inertness, extreme temperature resistance, and ultra-high vacuum compatibility that traditional materials cannot match. Ceramics ensure minimal contamination and maintain the dimensional stability required for highly sensitive measurements. INNOVACERA designs and manufactures a wide range of specialized ceramic-to-metal assemblies and pure ceramic components, such as orifice plates and resistor cores, which significantly enhance the performance and operational life of complex analytical and scientific equipment across research, medical, and industrial laboratories.

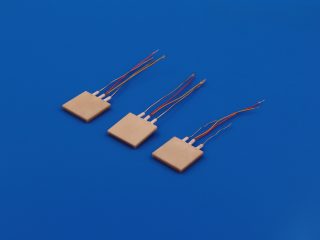

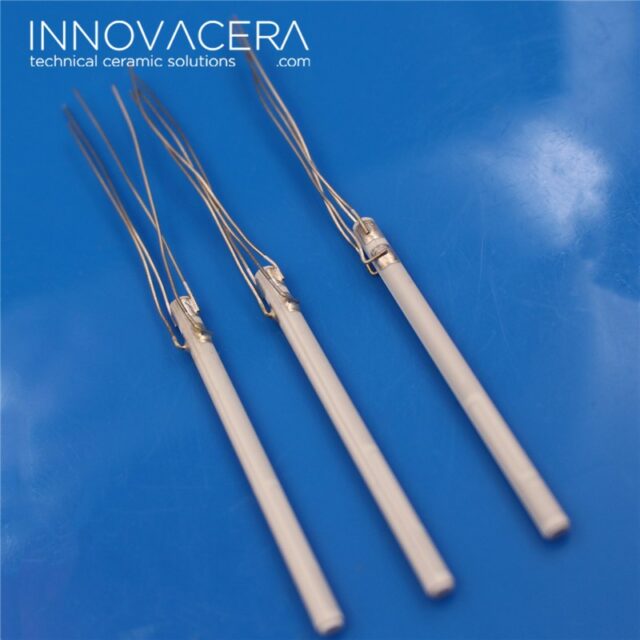

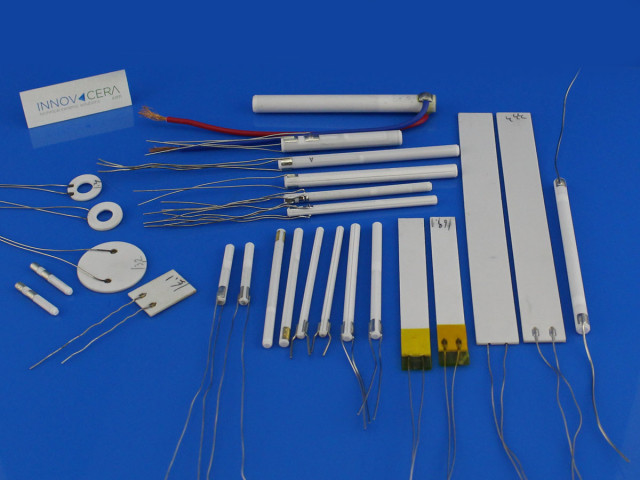

Alumina Ceramic Heater

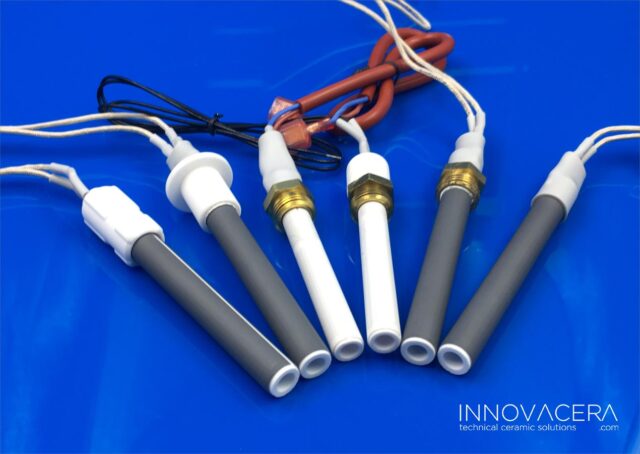

Alumina Ceramic Heaters (MCH Heaters) leverage the excellent thermal properties and electrical insulation of Alumina to provide rapid, highly efficient, and localized heating in a compact form factor. These heaters feature an embedded refractory metal heating element co-fired with the ceramic, resulting in fast heat-up times, superior temperature uniformity, and high-temperature stability. They are widely used in critical applications like mass spectrometry, soldering irons, oxygen sensors, and pellet stoves, replacing traditional metal heating elements. INNOVACERA specializes in designing and manufacturing customized Alumina Ceramic Heaters with integrated temperature sensing capabilities and precise resistance values, ensuring high performance, long life, and energy efficiency for both industrial and consumer heating systems.

Ceramic Components for Oil and Gas Exploration

The oil and gas industry presents extreme environments of high pressure, high temperature, and corrosive chemicals. Advanced ceramics like Silicon Nitride and Zirconia excel in these conditions, offering superior wear and corrosion resistance for components in downhole tools, valves, and sensors. Innovacera provides robust ceramic solutions that enhance the reliability and lifespan of critical equipment used in exploration and production, reducing downtime and operational costs.

Alumina Ceramic Tubes for High-Temperature Furnaces

High-purity alumina ceramic tubes are a staple in high-temperature furnace applications due to their excellent thermal stability, high dielectric strength, and resistance to chemical attack. They are commonly used as protection tubes for thermocouples, insulators, and process tubes in heat treatment, melting, and diffusion furnaces operating at temperatures up to 1700°C. Innovacera supplies a wide variety of standard and custom-sized alumina tubes to meet the rigorous demands of industrial and laboratory furnaces.

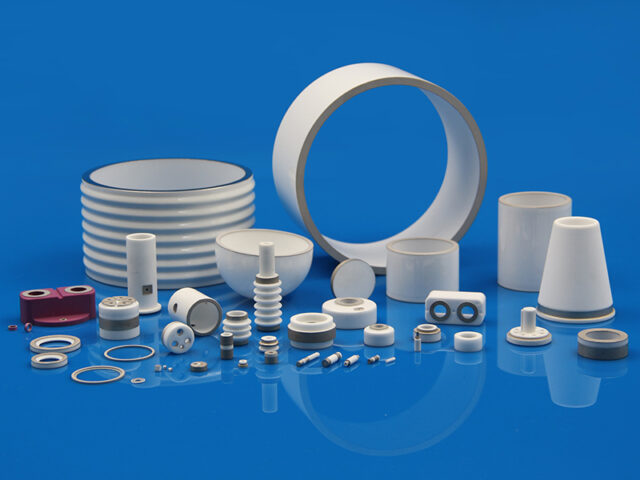

Metallization of Ceramics for Electronic Packaging

Ceramic metallization is the process of applying a thin, adherent metal layer onto a ceramic surface, enabling it to be brazed to other components. This is fundamental for electronic packaging, creating hermetic seals for sensors, RF packages, and power modules that require both electrical conductivity and insulation. Innovacera offers various metallization services, including Mo-Mn and thick-film techniques, to create reliable, high-performance ceramic-to-metal assemblies for the electronics industry.

Advanced Ceramics for 5G and Telecommunications

The rollout of 5G and advanced telecommunications requires materials with excellent high-frequency performance, low signal loss, and stable thermal properties. Advanced ceramics like Alumina, Aluminum Nitride are ideal for manufacturing filters, substrates, and packages for RF and microwave components. Innovacera develops specialized ceramic materials and metallized components that enable higher performance and miniaturization in next-generation communication infrastructure.

Direct Bonded Copper Ceramic Substrates

Direct bonded copper (DBC) ceramic substrates create robust thermal and electrical interconnection platforms by bonding oxygen-free copper layers (0.1-0.6mm thick) to ceramic substrates like alumina or aluminum nitride through high-temperature oxidation processes. These substrates handle extreme current loads (300A+) and power densities exceeding 500W/cm² in IGBT modules, MOSFET arrays, and thyristor packages. Innovacera’s DBC process achieves exceptional bond strength (>20 N/cm² peel strength) and thermal cycling reliability, making them ideal for automotive traction inverters, industrial motor drives, and renewable energy systems. The copper layers can be pre-patterned or chemically etched to create complex circuit geometries with minimal undercut and excellent edge definition. With thermal conductivity up to 200 W/mK (for AlN DBC) and dielectric strength >15 kV/mm, our DBC substrates outperform conventional PCB materials in high-voltage, high-frequency applications. Innovacera provides complete DBC solutions including design support, prototyping, and volume production for power electronic assemblies requiring superior thermal management and electrical performance.

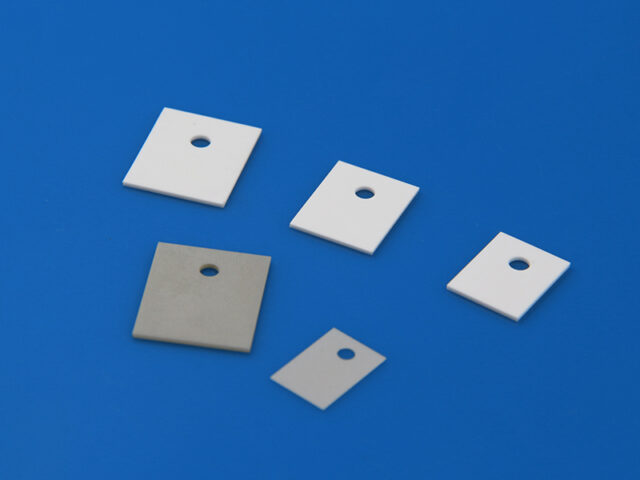

High Performance Ceramic Substrates

Innovacera’s High Performance Ceramic Substrates provide superior thermal management, electrical insulation, and mechanical stability. Made from Al2O3, AlN, Si3N4, or ZTA, they withstand -55°C to 850°C thermal cycling while maintaining dimensional and electrical integrity. Ideal for power modules, LEDs, RF/microwave circuits, and semiconductors, with precise flatness, smooth surface, and customizable metallization for automotive, aerospace, telecom, and industrial applications.

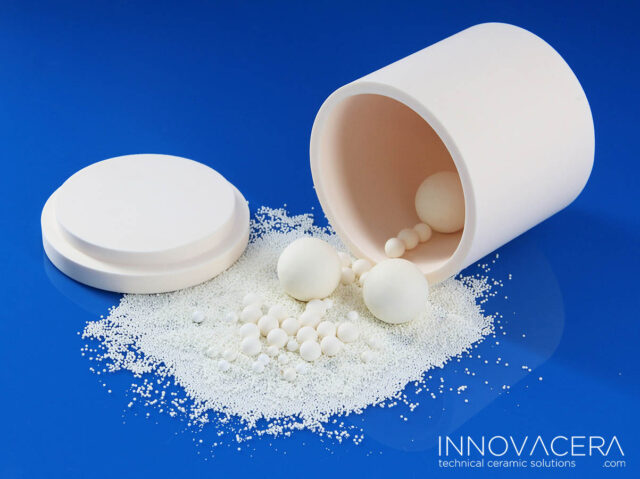

Ceramic Grinding Media for Milling and Dispersion

Ceramic grinding media, such as Zirconia and Alumina balls, are essential for efficient milling, grinding, and dispersion processes. Compared to metal or glass media, they offer higher density, superior wear resistance, and minimal product contamination. This makes them ideal for producing fine particles in industries like paints, inks, minerals, and pharmaceuticals. Innovacera manufactures high-quality Zirconia and Alumina grinding media that optimize milling efficiency and ensure product purity.

Advanced Ceramic Blades for Industrial Cutting

Zirconia ceramic blades offer a significant performance upgrade over steel blades in industrial cutting and slitting applications. Their extreme hardness results in a cutting edge that stays sharp up to 10 times longer, reducing downtime and improving cut quality. They are also chemically inert and corrosion-proof, making them ideal for cutting film, foil, paper, and food products. Innovacera produces a wide range of standard and custom zirconia ceramic blades that deliver precision and longevity.
